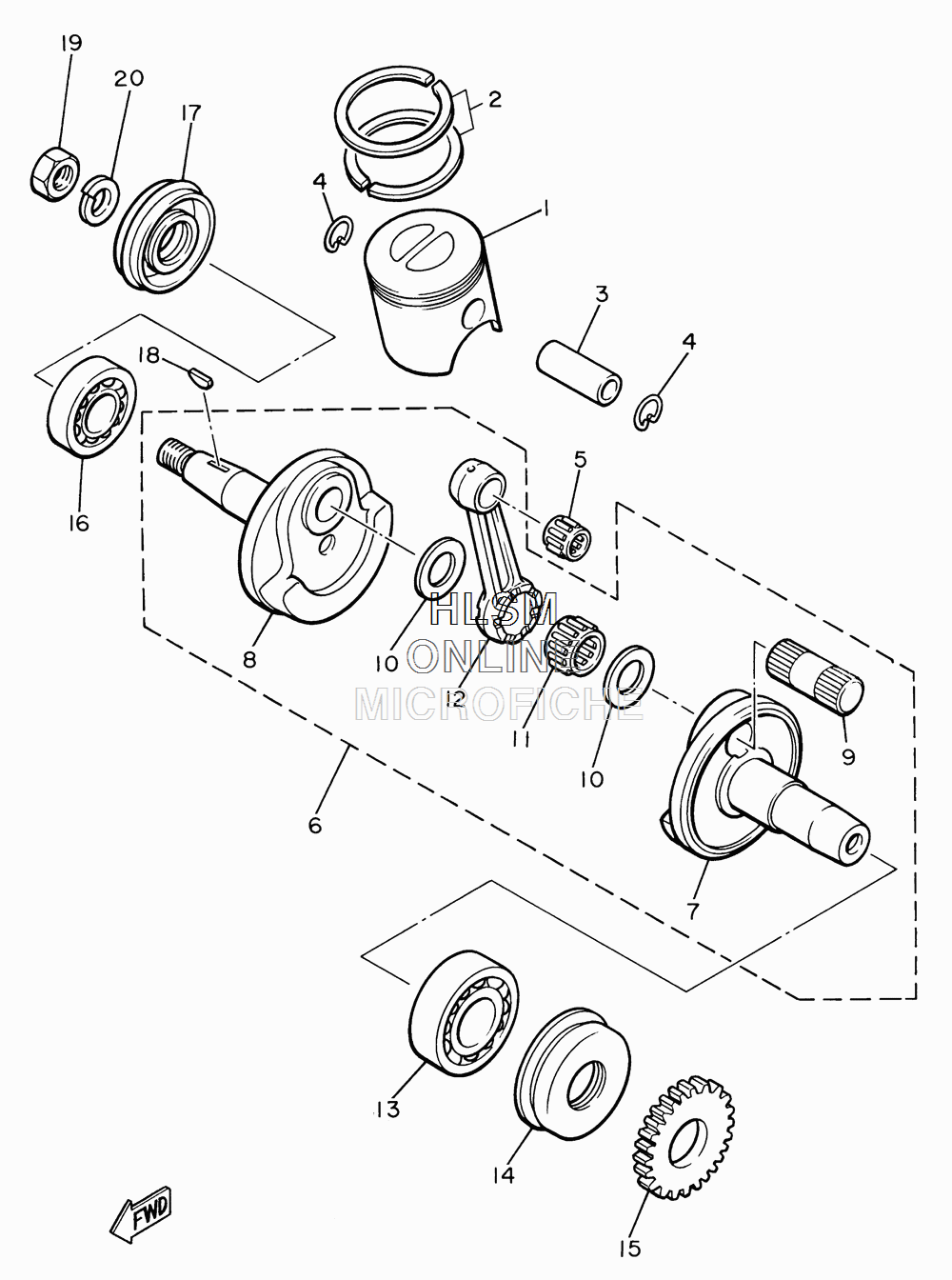

CRANKSHAFT W/ PISTON ASSY для Yamaha BRAVO T - 2010 года выпуска`
-
№АртикулНазвание
-
18R4-11631-00-96 PISTON (STD)PISTON (STD)
-
18R4-11635-00-00 PISTON (0.25MM O/S)PISTON (0.25MM O/S)
-
18R4-11636-00-00 PISTON (0.50MM O/S)PISTON (0.50MM O/S)
-
28R4-11610-10-00 PISTON RING SET (0.25MM O/S)PISTON RING SET (0.25MM O/S)
-
28R4-11610-20-00 PISTON RING SET (0.50MM O/S)PISTON RING SET (0.50MM O/S)
-
28R4-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
3818-11633-00-00 PIN, PISTONPIN, PISTON
-
493450-20026-00 CIRCLIPCIRCLIP
-
593310-218A6-00 BEARINGBEARING
-
68R4-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
78R4-11412-00-00 CRANK 1CRANK 1
-
88R4-11422-00-00 CRANK 2CRANK 2
-
98F3-11681-00-00 PIN, CRANK 1PIN, CRANK 1
-
1090209-24183-00 WASHERWASHER
-
1193310-424E8-00 BEARINGBEARING
-
128R4-11651-00-00 ROD, CONNECTINGROD, CONNECTING
-
1393306-30623-00 BEARINGBEARING
-
1493102-30326-00 OIL SEALOIL SEAL
-
158R4-13178-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
1693306-30555-00 BEARINGBEARING
-
1793102-25183-00 OIL SEALOIL SEAL
-
1890280-05013-00 KEY, WOODRUFFKEY, WOODRUFF
-
1990170-16425-00 NUTNUT
-
2092907-16100-00 WASHERWASHER
