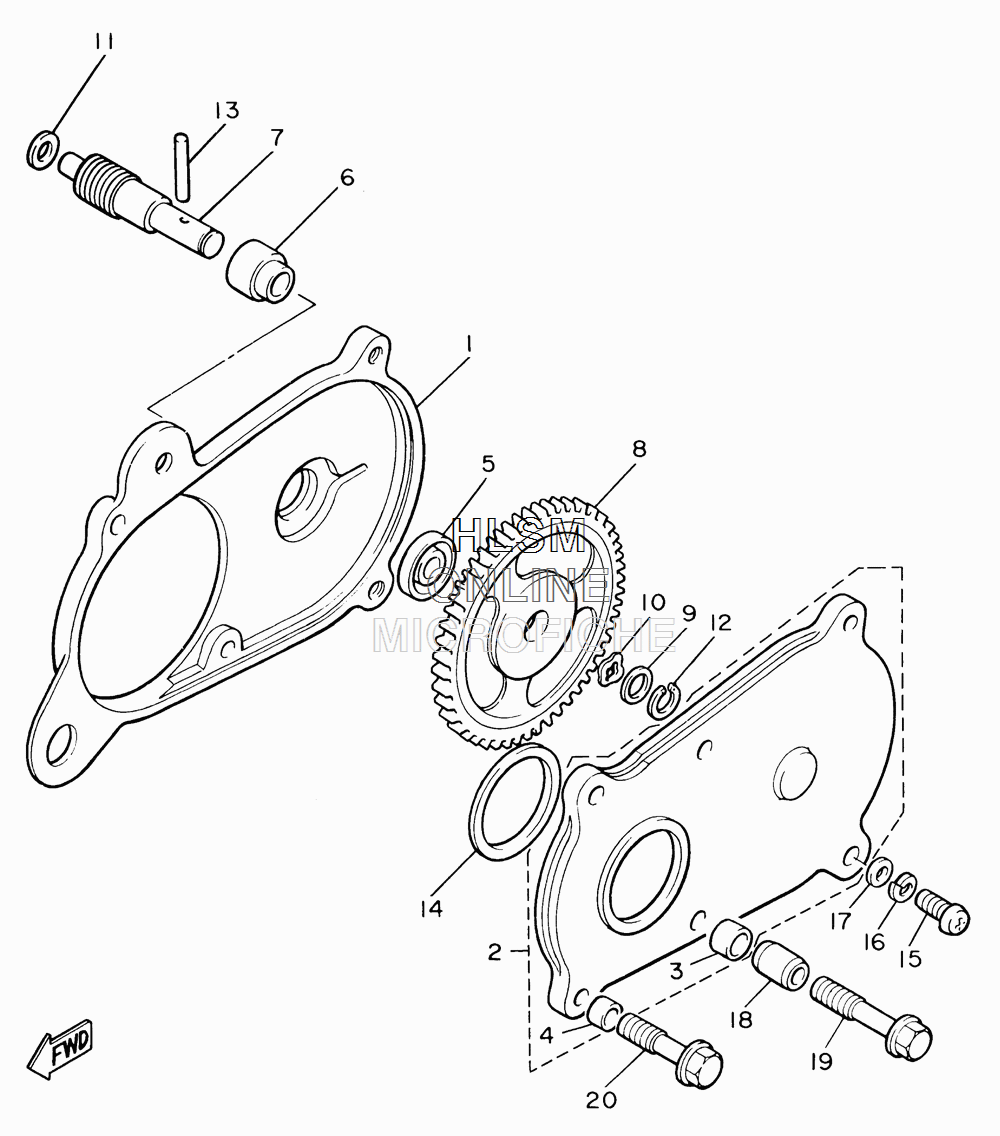

OIL PUMP DRIVE GEAR для Yamaha BRAVO T - 2010 года выпуска`
-
№АртикулНазвание
-
18R4-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
28R4-15426-00-00 COVER, OIL PUMP 2COVER, OIL PUMP 2
-
390387-082N1-00 COLLARCOLLAR
-
490387-062N2-00 COLLARCOLLAR
-
593101-10001-00 OIL SEAL,S-TYPEOIL SEAL,S-TYPE
-
6821-13176-00-00 METAL, WORM SHAFT OUTERMETAL, WORM SHAFT OUTER
-
78R4-13175-00-00 SHAFT, WORMSHAFT, WORM
-
88R4-13188-00-00 GEAR, DRIVE (59T)GEAR, DRIVE (59T)
-
9137-13148-00-00 PLATE, CAM THRUSTPLATE, CAM THRUST
-
1090206-11016-00 WASHER, WAVEWASHER, WAVE
-
1190201-08624-00 WASHER, PLATEWASHER, PLATE
-
1299009-10400-00 CIRCLIPCIRCLIP
-
1393603-22028-00 PIN, DOWELPIN, DOWEL
-
1493104-29072-00 OIL SEALOIL SEAL
-
1598507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1792907-06600-00 WASHER, PLATEWASHER, PLATE
-
1891808-22019-00 PIN, DOWELPIN, DOWEL
-
1995827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2095827-06025-00 BOLT, FLANGEBOLT, FLANGE
