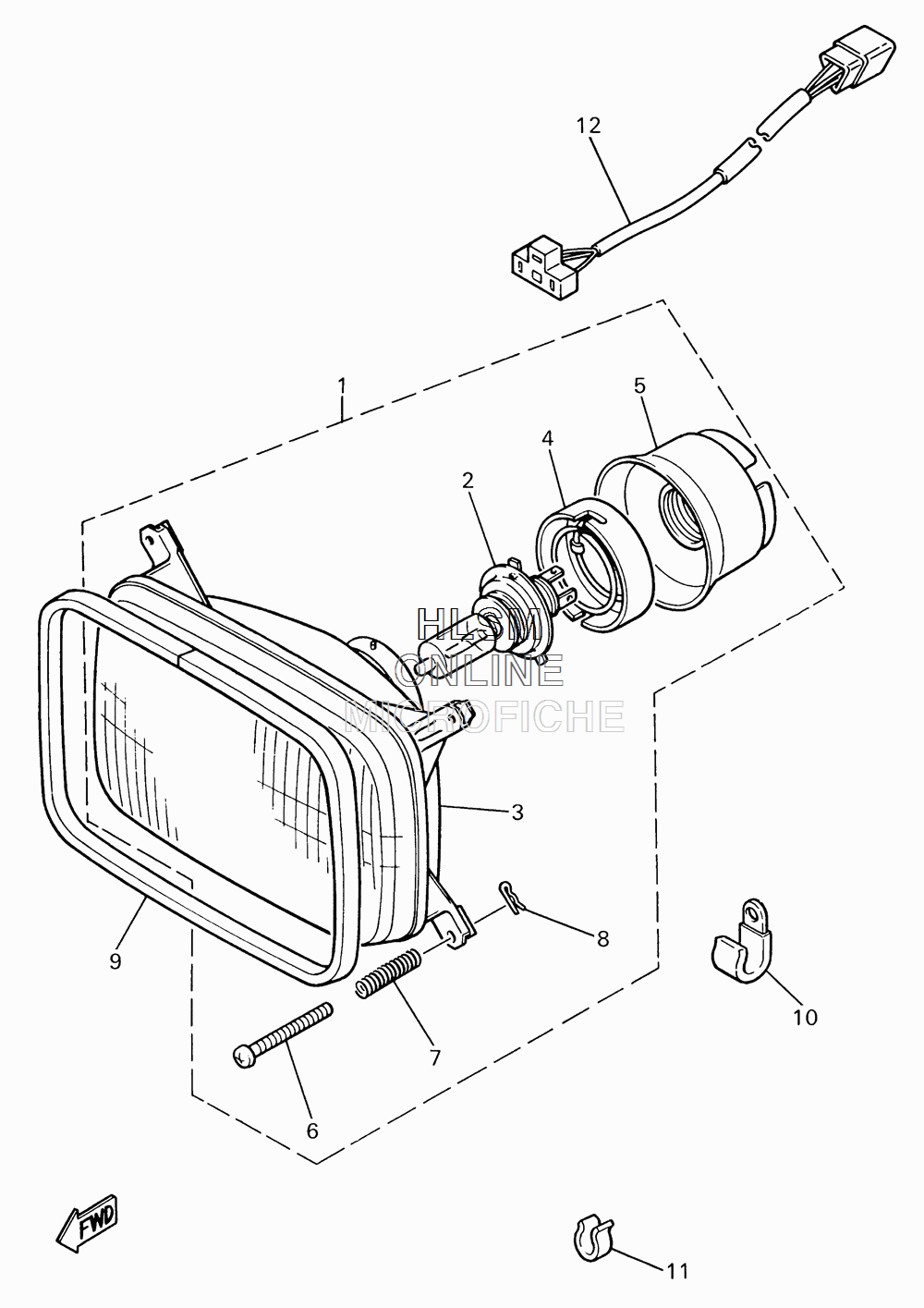

ELECTRICAL - HEADLIGHT ASSY для Yamaha BRAVO T - 2010 года выпуска`
-
№АртикулНазвание
-
18G9-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28V0-84314-10-00 BULB,HEADLIGHT (12V-60/55W)BULB,HEADLIGHT (12V-60/55W)
-
38A7-84320-00-00 LENS ASSYLENS ASSY
-
48A7-84312-00-00 HOLDER, SOCKETHOLDER, SOCKET
-
58A7-84397-01-00 COVER, SOCKETCOVER, SOCKET
-
68A5-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
78A5-84332-00-00 SPRING, SCREWSPRING, SCREW
-
8807-84374-00-00 CLIPCLIP
-
98T7-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
1090465-08028-00 CLAMPCLAMP
-
1190468-05176-00 CLIPCLIP
-
128AD-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
Все узлы модели:
- AIR SHROUD W/ FAN
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE GUARD W/ LUGGAGE BOX
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- • ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- FUEL TANK ASSY 2
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- OIL PUMP ASSY
- OIL PUMP DRIVE GEAR
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- SEAT ASSY
- SHROUD W/ WINDSHIELD
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- THUMB WARMER KIT (OPT)
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
