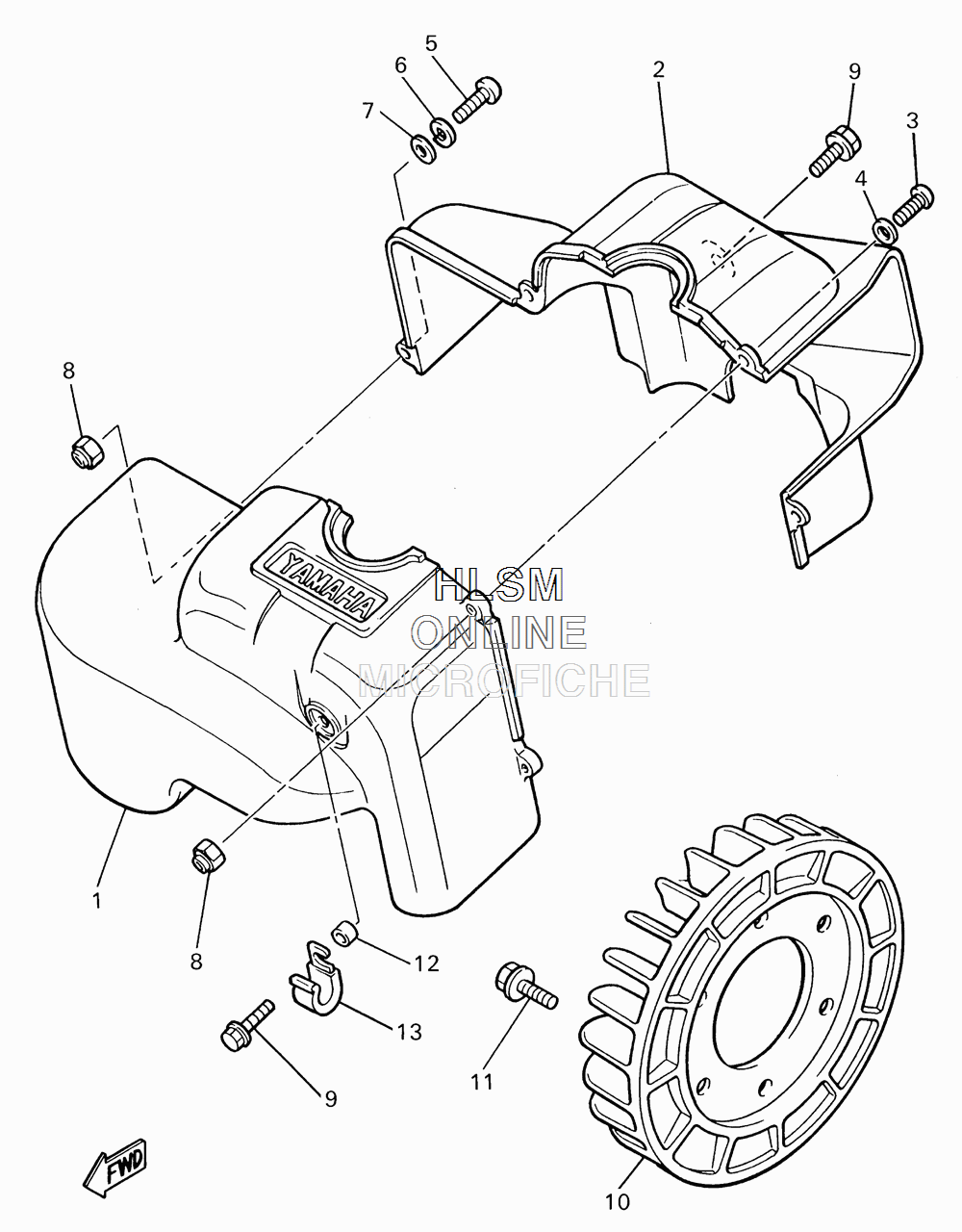

AIR SHROUD W/ FAN для Yamaha BRAVO T - 2010 года выпуска`
-
№АртикулНазвание
-
18R4-12651-03-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
28R4-12652-02-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
398507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
492907-05600-00 WASHER, PLATEWASHER, PLATE
-
598507-05030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
692907-05100-00 WASHER, SPRINGWASHER, SPRING
-
792907-05600-00 WASHER, PLATEWASHER, PLATE
-
895707-05300-00 NUT, FLANGENUT, FLANGE
-
990119-06108-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
108G8-12611-01-00 FANFAN
-
1190105-06556-00 BOLT, FLANGEBOLT, FLANGE
-
1290387-066K1-00 COLLARCOLLAR
-
1390465-10313-00 CLAMPCLAMP
