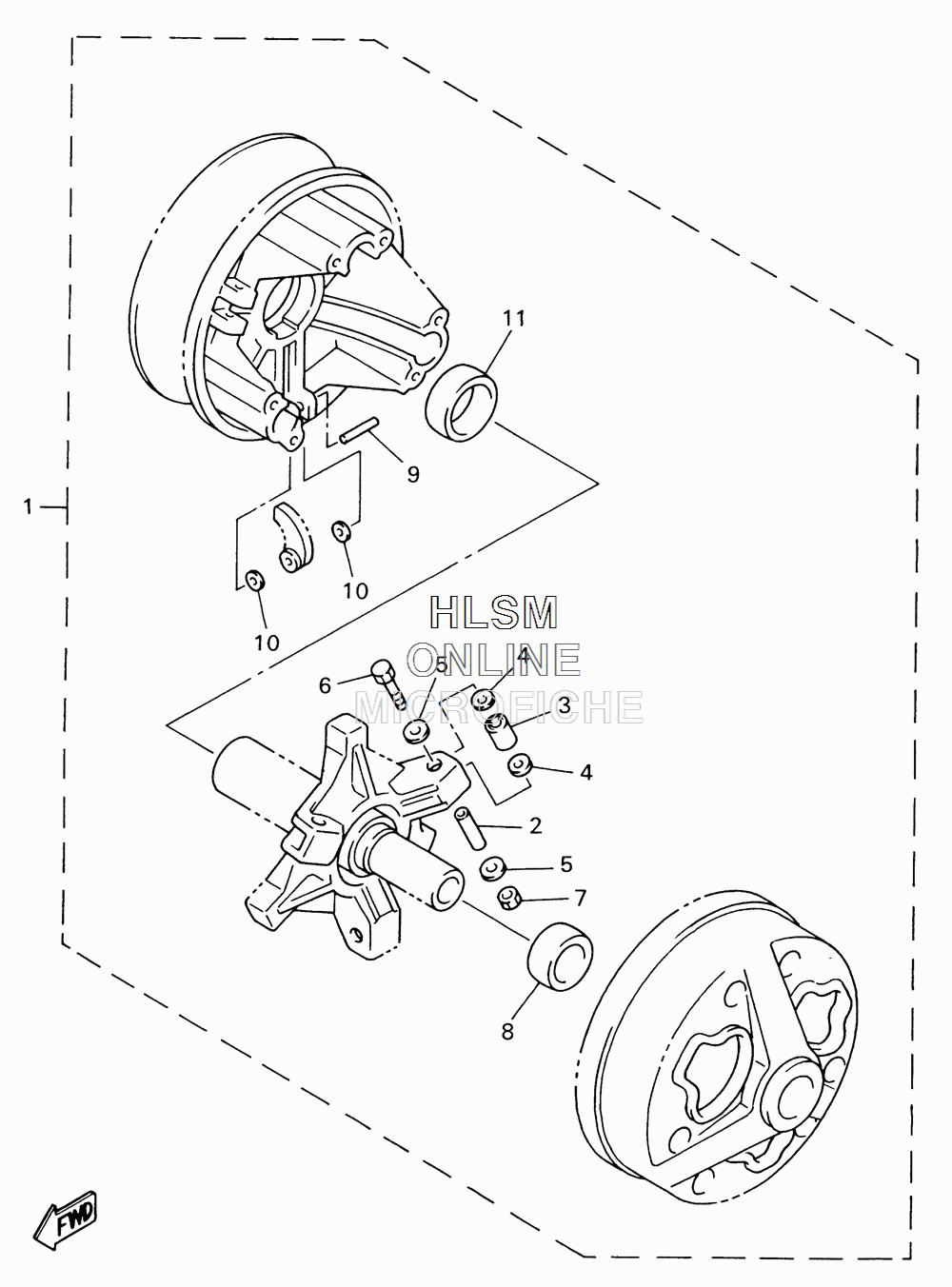

CLUTCH - TUNE-UP KIT (OPTION) для Yamaha BRAVO T - 2010 года выпуска`
-
№АртикулНазвание
-
189D-00000-50-00 CLUTCH TUNE-UP KIT (T)CLUTCH TUNE-UP KIT (T)
-
290387-057W5-00 COLLARCOLLAR
-
390387-087W7-00 COLLARCOLLAR
-
490202-08205-00 WASHER, PLATEWASHER, PLATE
-
590201-050P9-00 WASHER, PLATEWASHER, PLATE
-
697022-05035-00 BOLT,HEXAGONBOLT,HEXAGON
-
795612-05100-00 NUT, UNUT, U
-
890389-28032-00 BUSHBUSH
-
993607-44190-00 PIN, DOWELPIN, DOWEL
-
1090201-077F5-00 WASHER, PLATEWASHER, PLATE
-
1190389-40029-00 BUSHBUSH
