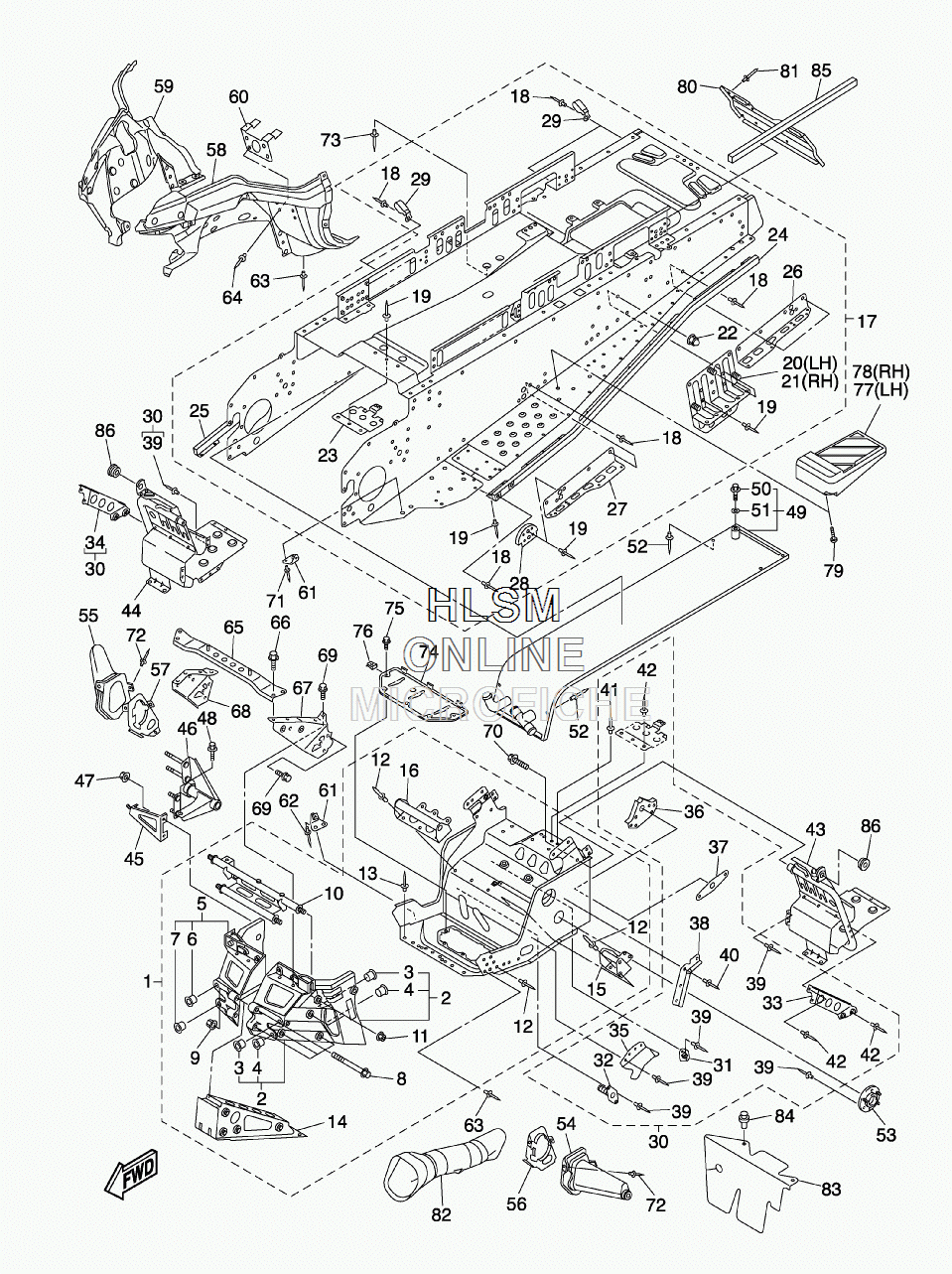

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha VK PROFESSIONAL - 2008 года выпуска
-
№АртикулНазвание
-
18GS-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FN-W2197-00-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FN-W2198-00-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
790381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
890105-08072-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
108FN-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1195607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
1290267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
1390267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
148FN-2198E-00-00 ...REINFORCEMENT, FRAME 3...REINFORCEMENT, FRAME 3
-
158FN-2194F-00-00 ...BRACKET, ENGINE 2...BRACKET, ENGINE 2
-
168FN-2194G-00-00 ...BRACKET, ENGINE 3...BRACKET, ENGINE 3
-
178GS-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
1890267-48023-00 ...RIVET, BLIND...RIVET, BLIND
-
1990267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
208FN-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
218FN-21954-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
2290176-10075-00 ...NUT, CROWN...NUT, CROWN
-
238FN-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
248FN-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
258FN-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
268FN-21962-00-00 ...PATCH 2...PATCH 2
-
278FN-21963-00-00 ...PATCH 3...PATCH 3
-
288CW-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
2990465-08368-00 ...CLAMP...CLAMP
-
308FN-W2195-10-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
318CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
328FN-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
338FG-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
348FG-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
358FU-2198G-00-00 ...COVER 2...COVER 2
-
368AC-21943-02-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
378FN-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
388FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
3990267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
4090267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
4190267-48023-00 ...RIVET, BLIND...RIVET, BLIND
-
4290267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
438FN-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
448GS-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
458FN-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
468FN-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
4795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4895827-10016-00 BOLT, FLANGEBOLT, FLANGE
-
498FN-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
5095817-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
5190210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
5290267-48016-00 RIVET, BLINDRIVET, BLIND
-
538EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
548FU-2198F-00-00 COVER 1COVER 1
-
558FU-2198J-00-00 COVER 3COVER 3
-
568FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
578FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
588ES-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
598FA-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
608FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
618FA-2196F-00-00 BRACKET 3BRACKET 3
-
6290267-48083-00 RIVET, BLINDRIVET, BLIND
-
6390267-48018-00 RIVET, BLINDRIVET, BLIND
-
6490267-47200-00 RIVET, BLINDRIVET, BLIND
-
658FN-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
6695827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
678FN-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
688FN-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
6995827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
7095827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7190267-48095-00 RIVET, BLINDRIVET, BLIND
-
7290267-47195-00 RIVET, BLINDRIVET, BLIND
-
7390267-48016-00 RIVET, BLINDRIVET, BLIND
-
748FA-2197E-01-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
7590109-065F3-00 BOLTBOLT
-
7690183-06053-00 NUT, SPRINGNUT, SPRING
-
778DM-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
788DM-27441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
7997707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
808FN-21933-01-00 REINFORCEMENT, FRAME REAR 2REINFORCEMENT, FRAME REAR 2
-
8190267-47195-00 RIVET, BLINDRIVET, BLIND
-
828FN-21557-00-00 DUCT, AIRDUCT, AIR
-
838FN-2198F-00-00 COVER 1COVER 1
-
8490269-09002-00 RIVETRIVET
-
858FN-241A5-00-00 SEAL, 5SEAL, 5
-
8690480-16278-00 GROMMETGROMMET
