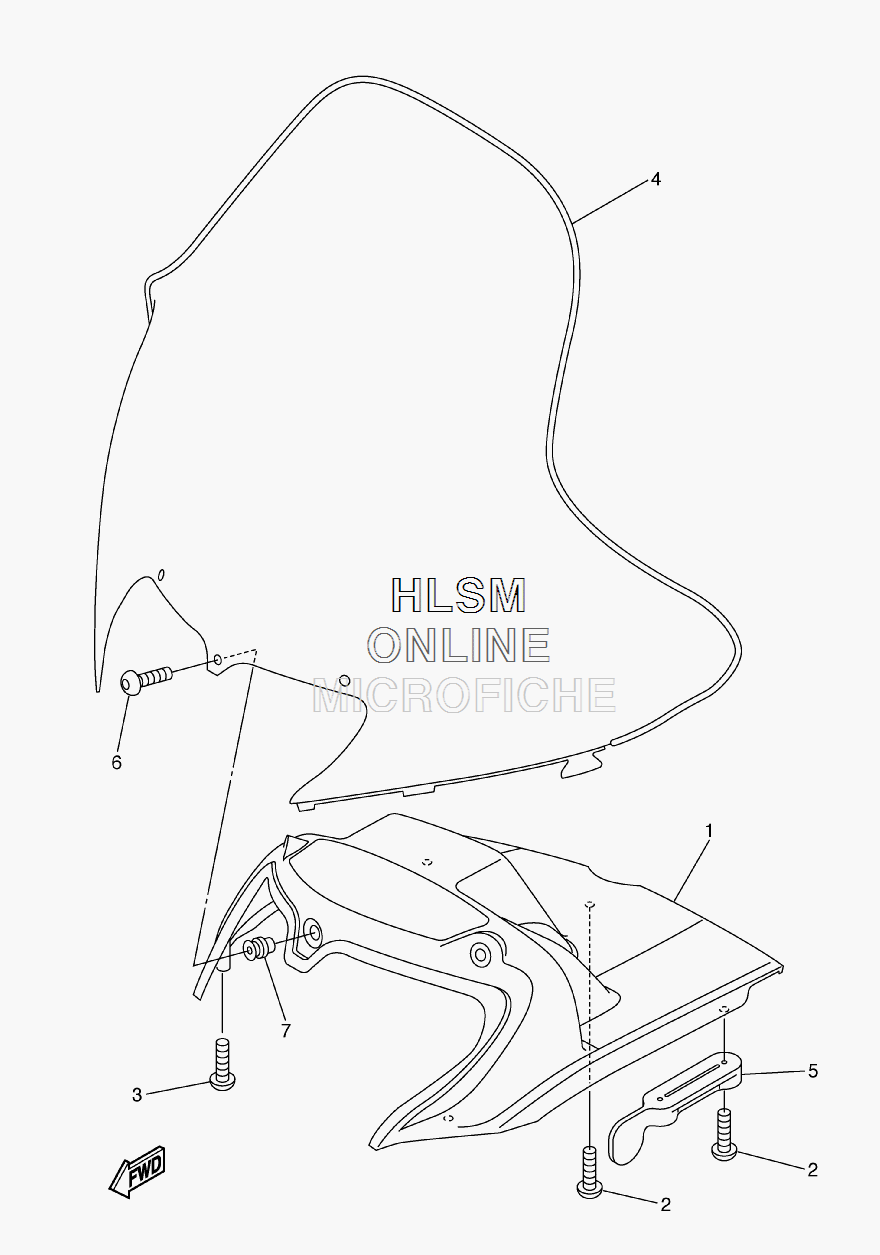

HOOD - WINDSHIELD ASSY для Yamaha VK PROFESSIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
18FN-77251-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
397707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
48FN-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
582H-77223-00-00 FASTNERFASTNER
-
690149-05299-00 SCREWSCREW
-
790179-05523-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
