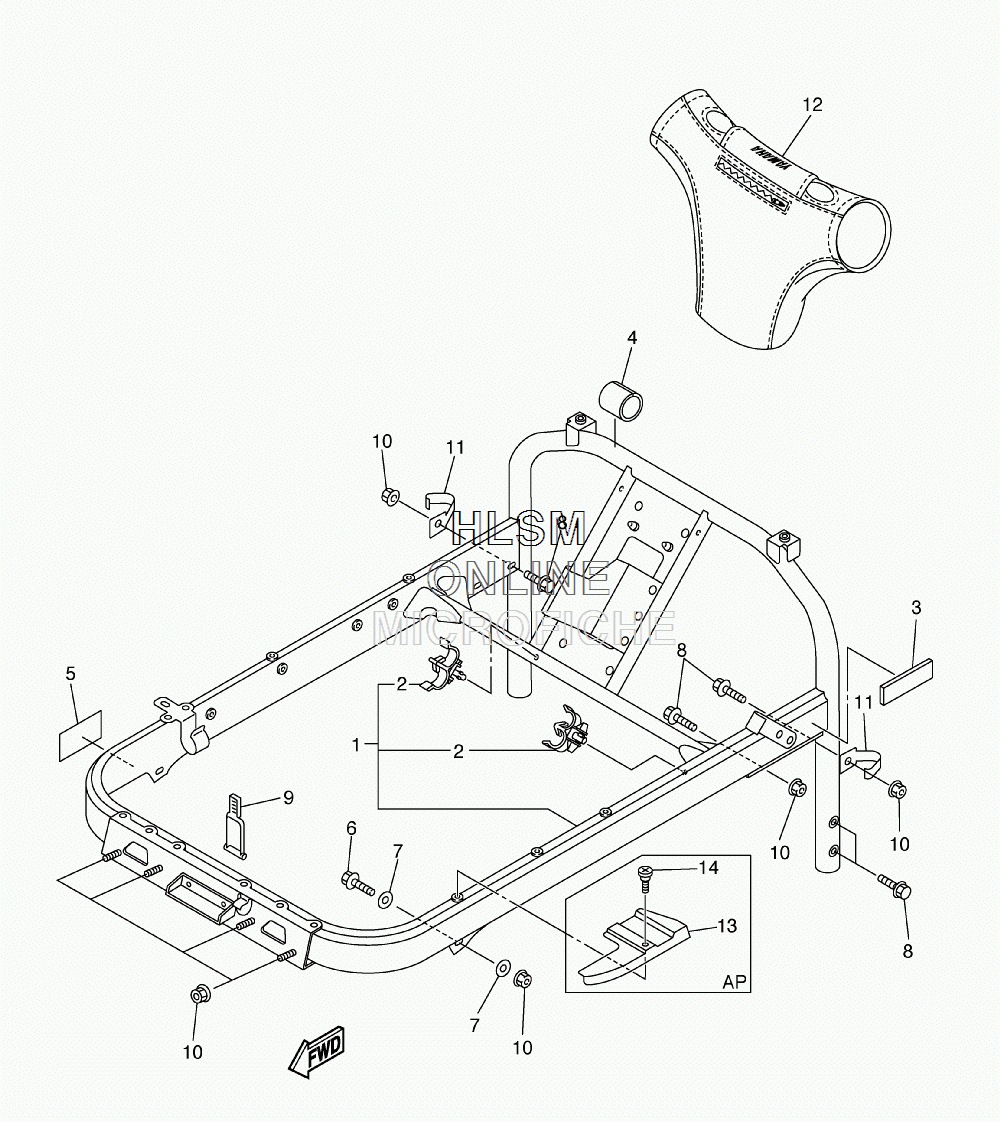

HANDLEBAR PAD W/ STEERING GATE для Yamaha VK PROFESSIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
18GS-23870-00-00 STEERING GATE COMP.STEERING GATE COMP.
-
290464-11007-00 ...CLAMP...CLAMP
-
38FN-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
48FN-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
58FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
690105-081A7-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
790201-08326-00 WASHER, PLATEWASHER, PLATE
-
895827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
98FA-2389E-00-00 LATCHLATCH
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190462-10022-00 CLAMPCLAMP
-
128FN-23815-00-00 PAD, STEERINGPAD, STEERING
-
138ES-14146-00-00 PLATE (OPT)PLATE (OPT)
-
1490150-06015-00 SCREW, ROUND HEAD (OPT)SCREW, ROUND HEAD (OPT)
