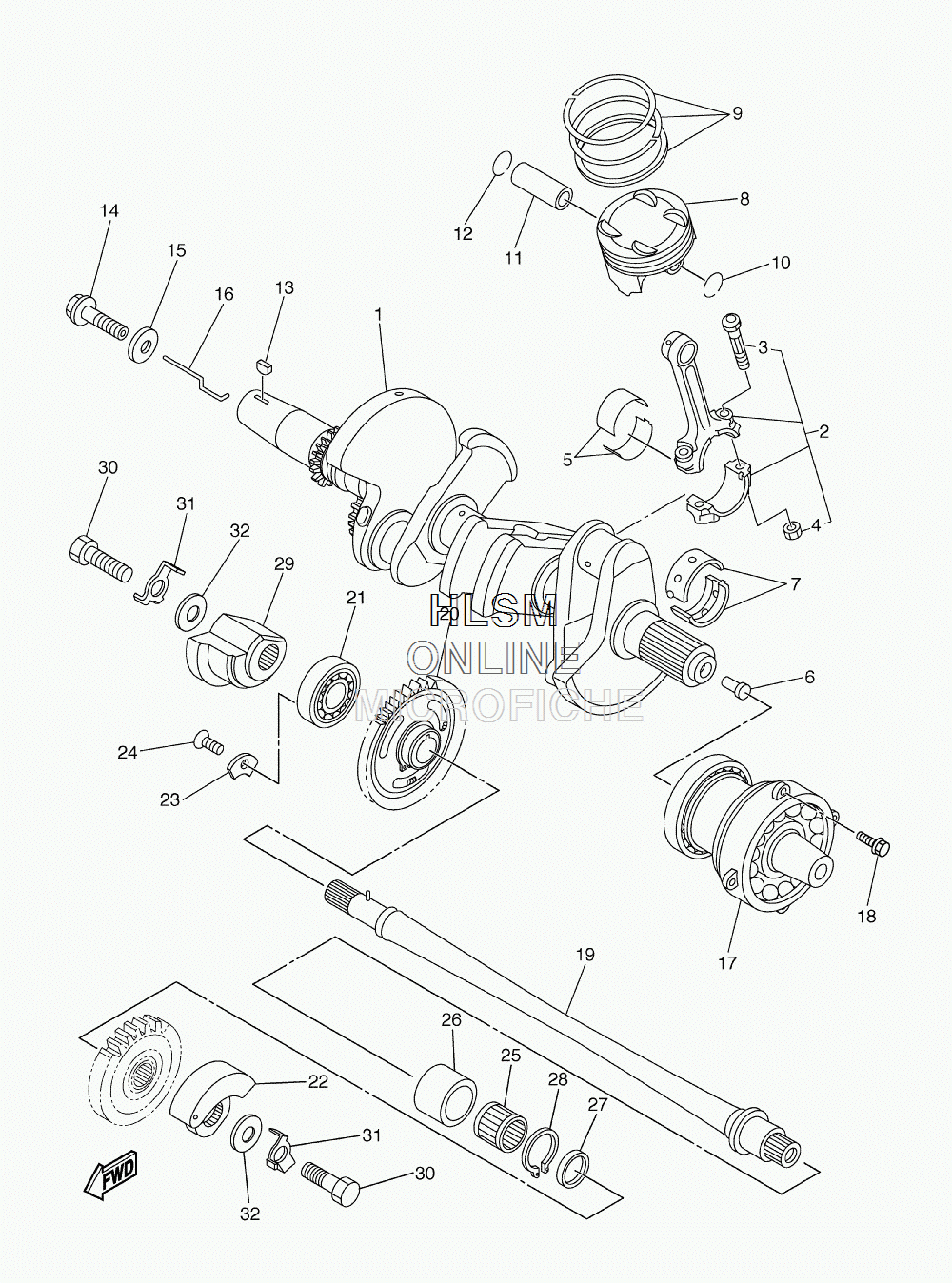

CRANKSHAFT W/ PISTON ASSY для Yamaha VK PROFESSIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
18ES-11400-01-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25JW-11650-01-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35JW-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
490179-08327-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
55JW-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
-
55JW-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
55JW-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
55JW-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
-
55JW-11656-A0-00 PLANE BEARING, CONNECTING ROD (OPT) (WHITE)PLANE BEARING, CONNECTING ROD (OPT) (WHITE)
-
55JW-11656-40-00 PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)
-
68ES-11469-01-00 PLUGPLUG
-
73LD-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
-
73LD-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)
-
73LD-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
-
73LD-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
-
73LD-11416-50-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)
-
73LD-11416-70-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)PLANE BEARING, CRANKSHAFT 1 (OPT) (WHITE)
-
73LD-11416-60-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (RED)PLANE BEARING, CRANKSHAFT 1 (OPT) (RED)
-
88ES-11631-00-00 PISTON (STD)PISTON (STD)
-
95JW-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1093450-19095-00 CIRCLIP, INNERCIRCLIP, INNER
-
115JW-11633-00-00 PIN, PISTONPIN, PISTON
-
1293450-19095-00 CIRCLIP, INNERCIRCLIP, INNER
-
1390280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
1490105-12032-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-121H0-00 WASHER, PLATEWASHER, PLATE
-
1659J-11455-00-00 SHAFT 1SHAFT 1
-
178ES-11406-02-00 SHAFT ASSYSHAFT ASSY
-
1895817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
198ES-11407-02-00 SHAFT ASSY., 2SHAFT ASSY., 2
-
208ES-11530-00-00 BALANCER WEIGHT GEAR COMP.BALANCER WEIGHT GEAR COMP.
-
2193306-30323-00 BEARINGBEARING
-
228ES-11454-00-00 WEIGHT 1WEIGHT 1
-
234JT-15381-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2490151-06008-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
2593310-42239-00 BEARINGBEARING
-
268ES-11428-01-00 BEARING 1BEARING 1
-
278ES-11478-00-00 COLLARCOLLAR
-
2893450-32152-00 CIRCLIPCIRCLIP
-
298ES-11464-00-00 WEIGHT 2WEIGHT 2
-
3097017-10025-00 BOLTBOLT
-
3190215-10003-00 WASHER, LOCKWASHER, LOCK
-
3290201-10591-00 WASHER, PLATEWASHER, PLATE
