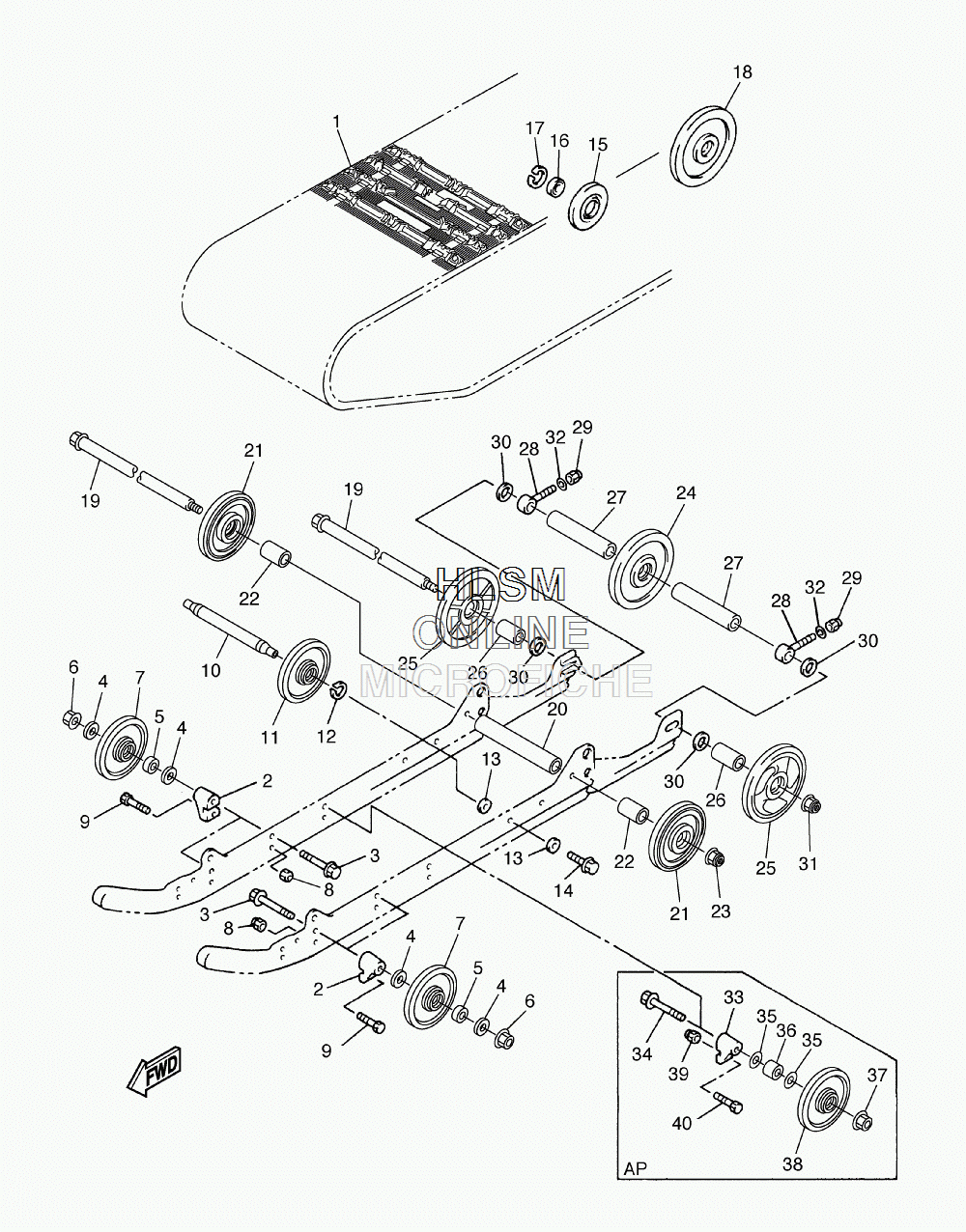

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha VK PROFESSIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
18FN-47110-00-00 TRACK ASSYTRACK ASSY
-
28CM-47419-10-00 BRACKET 7BRACKET 7
-
395817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
490201-100S0-00 WASHER, PLATEWASHER, PLATE
-
590387-10031-00 COLLARCOLLAR
-
695604-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
895607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990101-08774-00 BOLTBOLT
-
108FN-47486-00-00 SHAFT 4SHAFT 4
-
118ES-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1299009-25400-00 CIRCLIPCIRCLIP
-
1390201-100L3-00 WASHER, PLATEWASHER, PLATE
-
1490105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
158AC-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
1693306-00444-00 BEARINGBEARING
-
1799009-42500-00 CIRCLIPCIRCLIP
-
188AC-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
1983R-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
2083R-47469-00-00 COLLAR 1COLLAR 1
-
218FM-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2290387-203H0-00 COLLARCOLLAR
-
2395607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
248CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
258EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
2690387-20022-00 COLLARCOLLAR
-
2790387-20023-00 COLLARCOLLAR
-
288DM-47479-00-00 COLLAR 3COLLAR 3
-
2995707-10300-00 NUT, FLANGENUT, FLANGE
-
3090201-205R6-00 WASHER, PLATEWASHER, PLATE
-
3195607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3292907-10600-00 WASHER, PLATEWASHER, PLATE
-
338CM-47419-10-00 BRACKET 7 (OPT)BRACKET 7 (OPT)
-
3495817-10080-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
3590201-100S0-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
3690387-10031-00 COLLAR (OPT)COLLAR (OPT)
-
3795604-10200-00 NUT, SELF-LOCKING (OPT)NUT, SELF-LOCKING (OPT)
-
388ES-47310-00-00 SUSPENSION WHEEL ASSY (OPT)SUSPENSION WHEEL ASSY (OPT)
-
3995607-08200-00 NUT, SELF-LOCKING (OPT)NUT, SELF-LOCKING (OPT)
-
4090101-08774-00 BOLT (OPT)BOLT (OPT)
