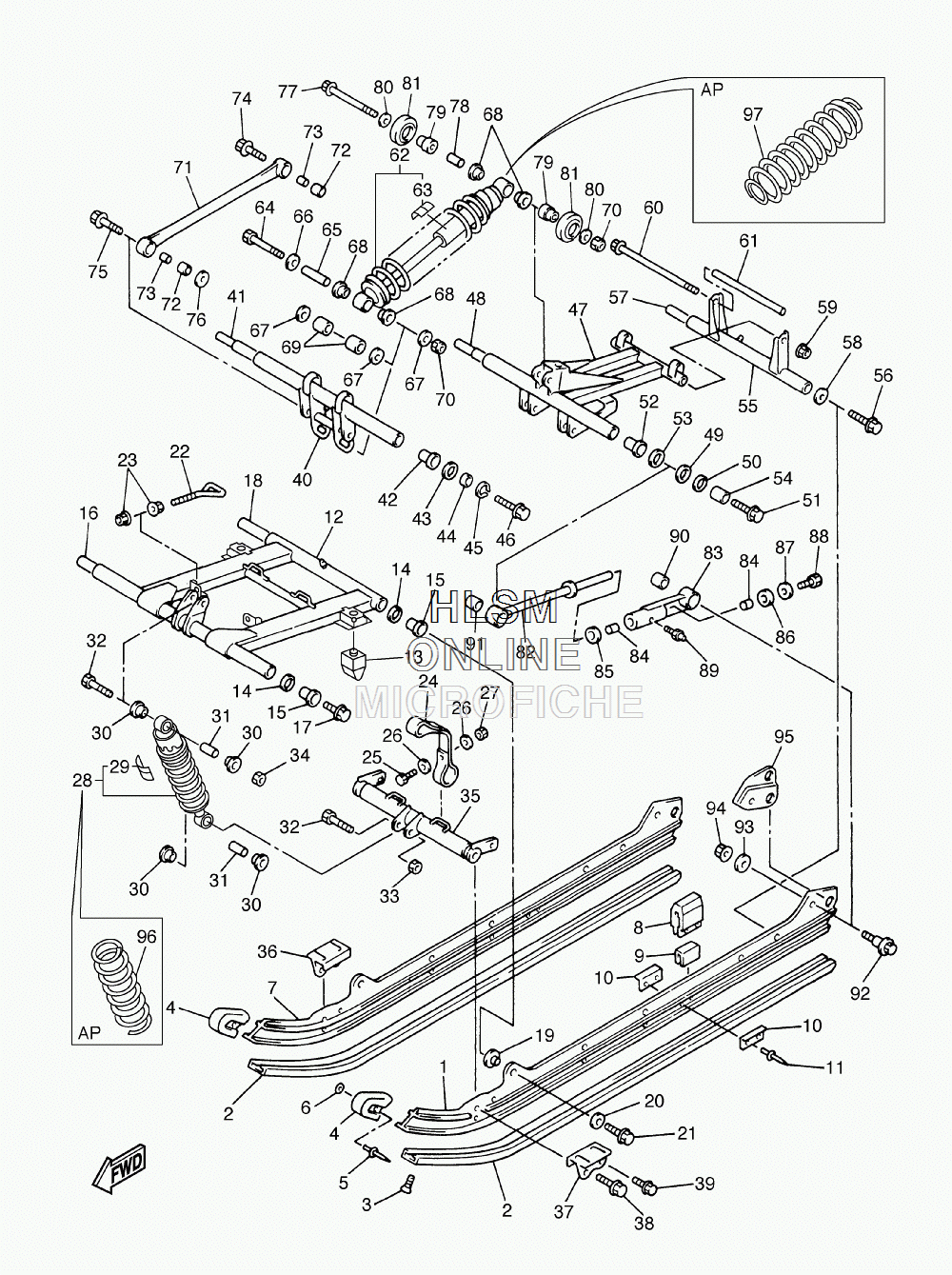

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha VK PROFESSIONAL - 2008 года выпуска
-
№АртикулНазвание
-
18AC-47411-10-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
28AC-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
390151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
48ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
590267-48194-00 RIVET, BLINDRIVET, BLIND
-
690201-047R8-00 WASHER, PLATEWASHER, PLATE
-
78AC-47414-10-00 FRAME, SLIDING 4FRAME, SLIDING 4
-
88AC-47457-00-00 DAMPER 2DAMPER 2
-
98AC-47341-00-00 SPACERSPACER
-
108AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLINDRIVET, BLIND
-
128AC-47331-10-00 ARM, PIVOT 1ARM, PIVOT 1
-
138FN-47456-00-00 DAMPER 1DAMPER 1
-
1490201-210U0-00 WASHER, PLATEWASHER, PLATE
-
1590381-19111-00 BUSH, SOLIDBUSH, SOLID
-
168AC-47465-00-00 SHAFT 1SHAFT 1
-
1790105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1883R-47485-02-00 SHAFT 3SHAFT 3
-
1990387-105G6-00 COLLARCOLLAR
-
2090201-100L3-00 WASHER, PLATEWASHER, PLATE
-
2190105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
228CR-47448-00-00 HOOK 3HOOK 3
-
2395707-08500-00 NUT, FLANGENUT, FLANGE
-
248CV-47495-00-00 STOPPER 1STOPPER 1
-
2597007-06025-00 BOLT, HEXBOLT, HEX
-
2690201-06747-00 WASHER, PLATEWASHER, PLATE
-
2795707-06300-00 NUT, NYLONNUT, NYLON
-
288FN-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
294AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
3090381-14101-00 BUSH, SOLIDBUSH, SOLID
-
3190387-105G5-00 COLLARCOLLAR
-
3290101-10738-00 BOLTBOLT
-
3390185-10110-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3495607-10100-00 NUT, UNUT, U
-
358AC-47418-00-00 BRACKET 4BRACKET 4
-
368DF-47463-01-00 BRACKET 5BRACKET 5
-
378DF-47464-01-00 BRACKET 6BRACKET 6
-
3890105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
3990105-08450-00 BOLT, FLANGEBOLT, FLANGE
-
408AC-47416-00-00 BRACKET 2BRACKET 2
-
418FN-47488-00-00 SHAFT 6SHAFT 6
-
4290381-22099-00 BUSH, SOLIDBUSH, SOLID
-
4390201-207J5-00 WASHER, PLATEWASHER, PLATE
-
4490387-2004V-00 COLLARCOLLAR
-
4599009-20400-00 CIRCLIPCIRCLIP
-
4690105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
478FN-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
488AC-47475-00-00 SHAFT 2SHAFT 2
-
4990201-266L1-00 WASHER, PLATEWASHER, PLATE
-
5090201-250T6-00 WASHER, PLATEWASHER, PLATE
-
5190105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
5290381-28108-00 BUSH, SOLIDBUSH, SOLID
-
5390201-286K9-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
5490387-2515E-00 COLLARCOLLAR
-
558AC-47417-00-00 BRACKET 3BRACKET 3
-
5690105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
5783R-47485-02-00 SHAFT 3SHAFT 3
-
5890201-10136-00 WASHER, PLATEWASHER, PLATE
-
5995607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6095827-08220-00 BOLT, FLANGEBOLT, FLANGE
-
6190387-083G6-00 COLLARCOLLAR
-
628FN-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
634AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
648AC-4631K-00-00 BOLT, ADJUSTINGBOLT, ADJUSTING
-
6590387-1009S-00 COLLARCOLLAR
-
6690201-103U4-00 WASHER, PLATEWASHER, PLATE
-
6790201-100U1-00 WASHER, PLATEWASHER, PLATE
-
6890381-14101-00 BUSH, SOLIDBUSH, SOLID
-
6990387-1404R-00 COLLARCOLLAR
-
7095607-10100-00 NUT, UNUT, U
-
718CR-47494-01-00 ROD, RELAYROD, RELAY
-
7290381-14109-00 BUSH, SOLIDBUSH, SOLID
-
7390387-100X3-00 COLLARCOLLAR
-
7490105-10739-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
7590105-10436-00 BOLT, FLANGEBOLT, FLANGE
-
7690201-100U1-00 WASHER, PLATEWASHER, PLATE
-
7790105-10105-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
7890387-105G5-00 COLLARCOLLAR
-
798AC-47366-00-00 COLLAR 2COLLAR 2
-
8090201-10136-00 WASHER, PLATEWASHER, PLATE
-
818AC-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
828AC-4745A-10-00 ROD, CONTROL 1ROD, CONTROL 1
-
838CR-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
8490384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
8590202-16229-00 WASHER, PLATEWASHER, PLATE
-
8690202-16232-00 WASHER, PLATEWASHER, PLATE
-
8790201-106F2-00 WASHER, PLATEWASHER, PLATE
-
8897027-10025-00 BOLTBOLT
-
8993700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
9090380-22232-00 BUSH, SOLIDBUSH, SOLID
-
9190380-28235-00 BUSH, SOLIDBUSH, SOLID
-
928DF-47367-00-00 SCREW, REAR PIVOTSCREW, REAR PIVOT
-
9390201-101U2-00 WASHER, PLATEWASHER, PLATE
-
9495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
958AC-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
968FN-47336-00-00 SPRING 1 (K=14.7N/MM) (OPT)SPRING 1 (K=14.7N/MM) (OPT)
-
968FN-47336-10-00 SPRING 1 (K=17.7N/MM) (OPT)SPRING 1 (K=17.7N/MM) (OPT)
-
968FN-47336-20-00 SPRING 1 (K=20.6N/MM) (OPT)SPRING 1 (K=20.6N/MM) (OPT)
-
978FN-47489-00-00 SPRING 1 (K=63.7N/MM) (OPT)SPRING 1 (K=63.7N/MM) (OPT)
