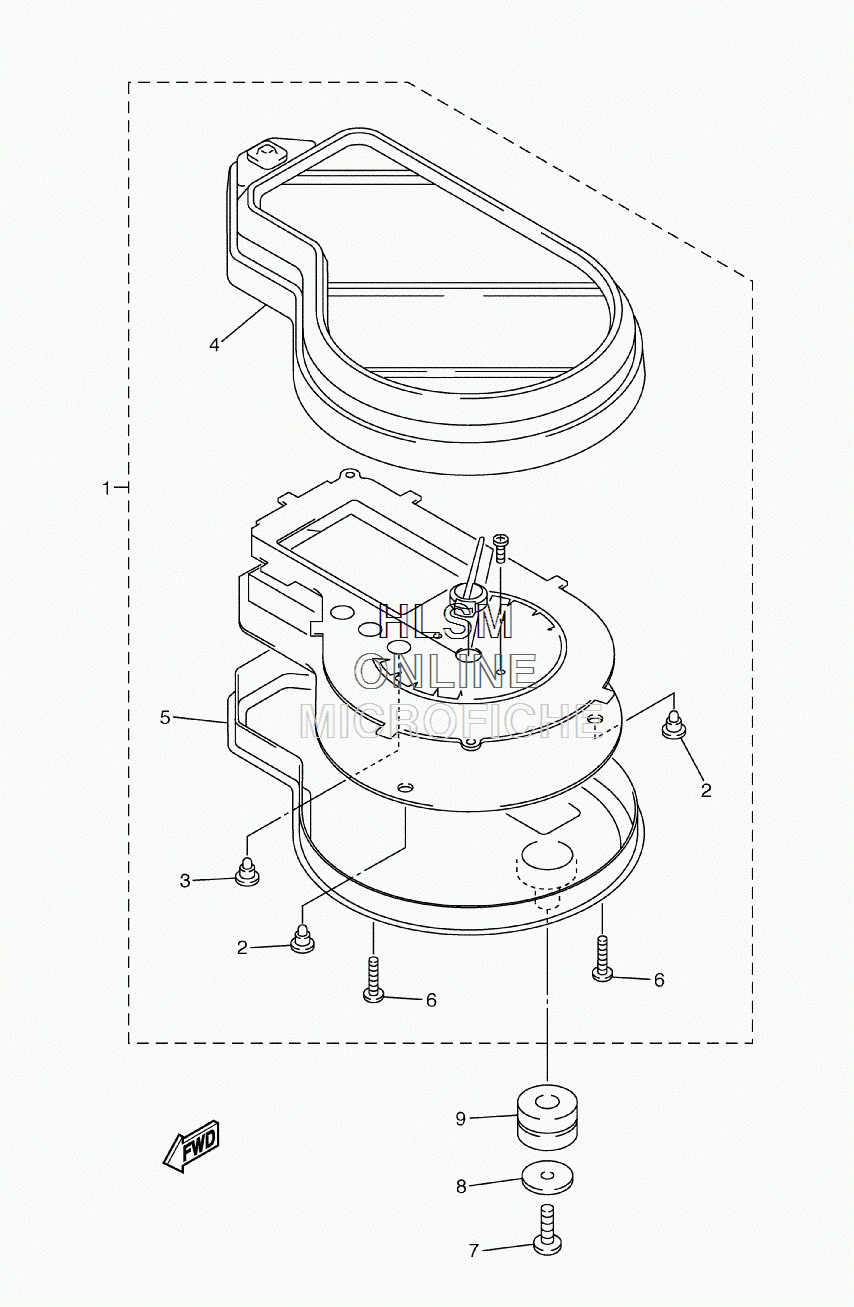

ELECTRICAL - INSTRUMENTS для Yamaha VK PROFESSIONAL - 2008 года выпуска`
-
№АртикулНазвание
-
18FN-83500-10-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
24WM-83517-00-00 ...BULB (T3 14V-50MA)...BULB (T3 14V-50MA)
-
34WM-83517-10-00 ...BULB (T3.4 14V-80MA)...BULB (T3.4 14V-80MA)
-
48EK-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
58EK-83572-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
65PW-8352S-00-00 ...SCREW, PANEL FTTING...SCREW, PANEL FTTING
-
797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
890201-05725-00 WASHER, PLATEWASHER, PLATE
-
94XV-83513-00-00 DAMPERDAMPER
