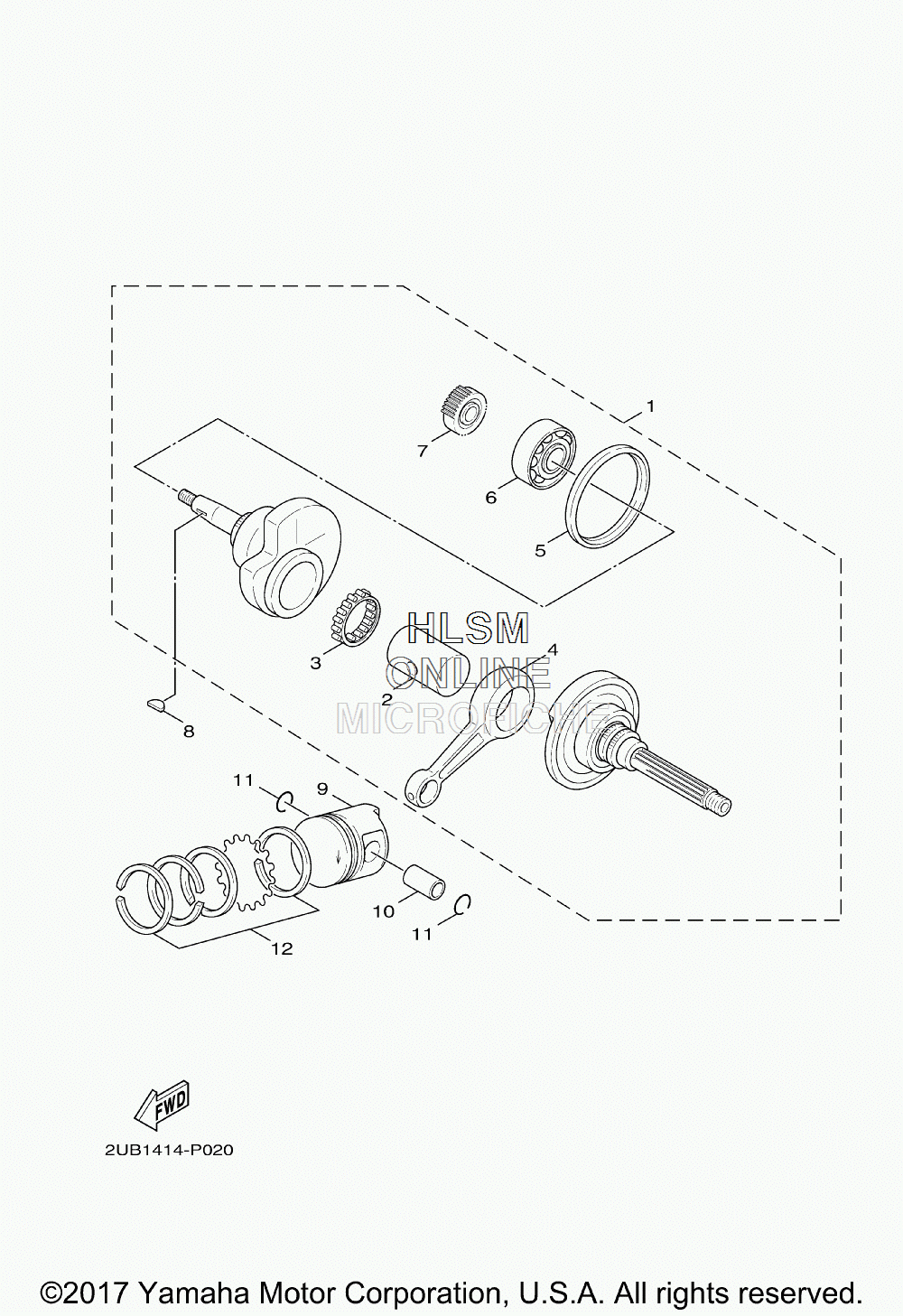

CRANKSHAFT W/ PISTON ASSY. для Yamaha ZUMA 125 - 2018 года выпуска`
-
№АртикулНазвание
-
12JS-E1400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
25ML-E1681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
393310-528Y9-00 ...BEARING...BEARING
-
45LW-E1651-10-00 ...ROD, CONNECTING...ROD, CONNECTING
-
55ML-E3452-00-00 ...COVER, ROTOR FILTER...COVER, ROTOR FILTER
-
693306-372X2-00 ...BEARING...BEARING
-
74D0-E3324-00-00 ...GEAR, PUMP DRIVE...GEAR, PUMP DRIVE
-
890280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
95ML-E1631-10-00 PISTON (STD)PISTON (STD)
-
1053B-E1633-00-00 PIN, PISTONPIN, PISTON
-
1193450-16068-00 CIRCLIPCIRCLIP
-
124C6-E1603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
