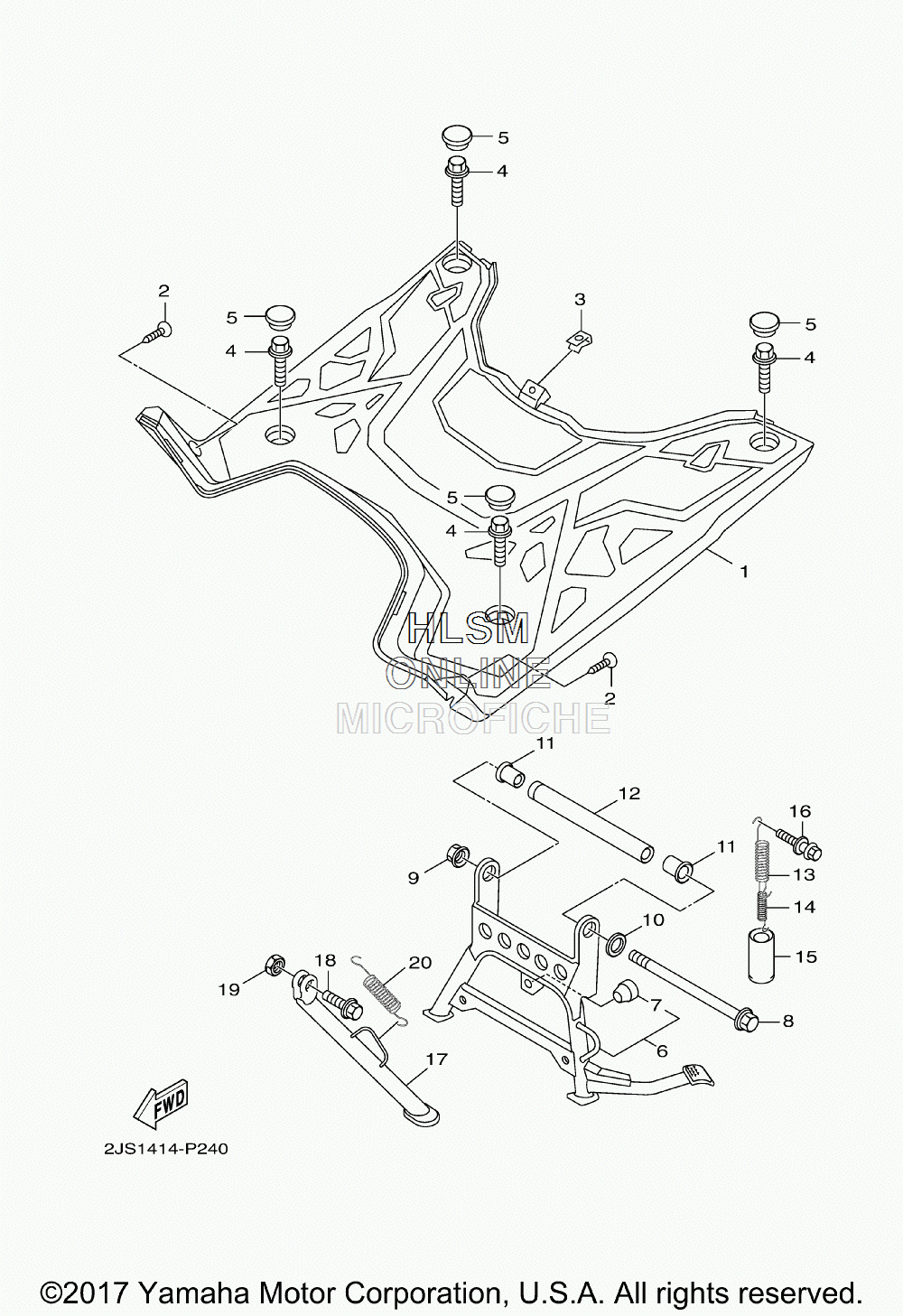

STAND W/ FOOTREST для Yamaha ZUMA 125 - 2018 года выпуска
-
№АртикулНазвание
-
12JS-F7481-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
390183-05816-00 NUT, SPRINGNUT, SPRING
-
490109-06043-00 BOLTBOLT
-
55HK-F7475-00-00 CAP 1CAP 1
-
65S9-XF711-20-00 STAND, MAINSTAND, MAIN
-
75S9-F7114-01-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
85ML-F7117-00-00 BOLT, MAIN STANDBOLT, MAIN STAND
-
995604-08200-00 NUT, U FLANGENUT, U FLANGE
-
1090201-08810-00 WASHER, PLATEWASHER, PLATE
-
115ML-F7121-00-00 BUSHBUSH
-
125ML-F7113-00-00 COLLAR, MAIN STANDCOLLAR, MAIN STAND
-
1390506-40800-00 SPRING, TENSIONSPRING, TENSION
-
1490506-20803-00 SPRING, TENSIONSPRING, TENSION
-
1590445-21815-00 HOSEHOSE
-
165SU-F7254-01-00 HOOKHOOK
-
175S9-F7311-00-00 STAND, SIDESTAND, SIDE
-
1890109-10005-00 BOLTBOLT
-
1990185-10110-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2090506-26803-00 SPRING, TENSIONSPRING, TENSION
