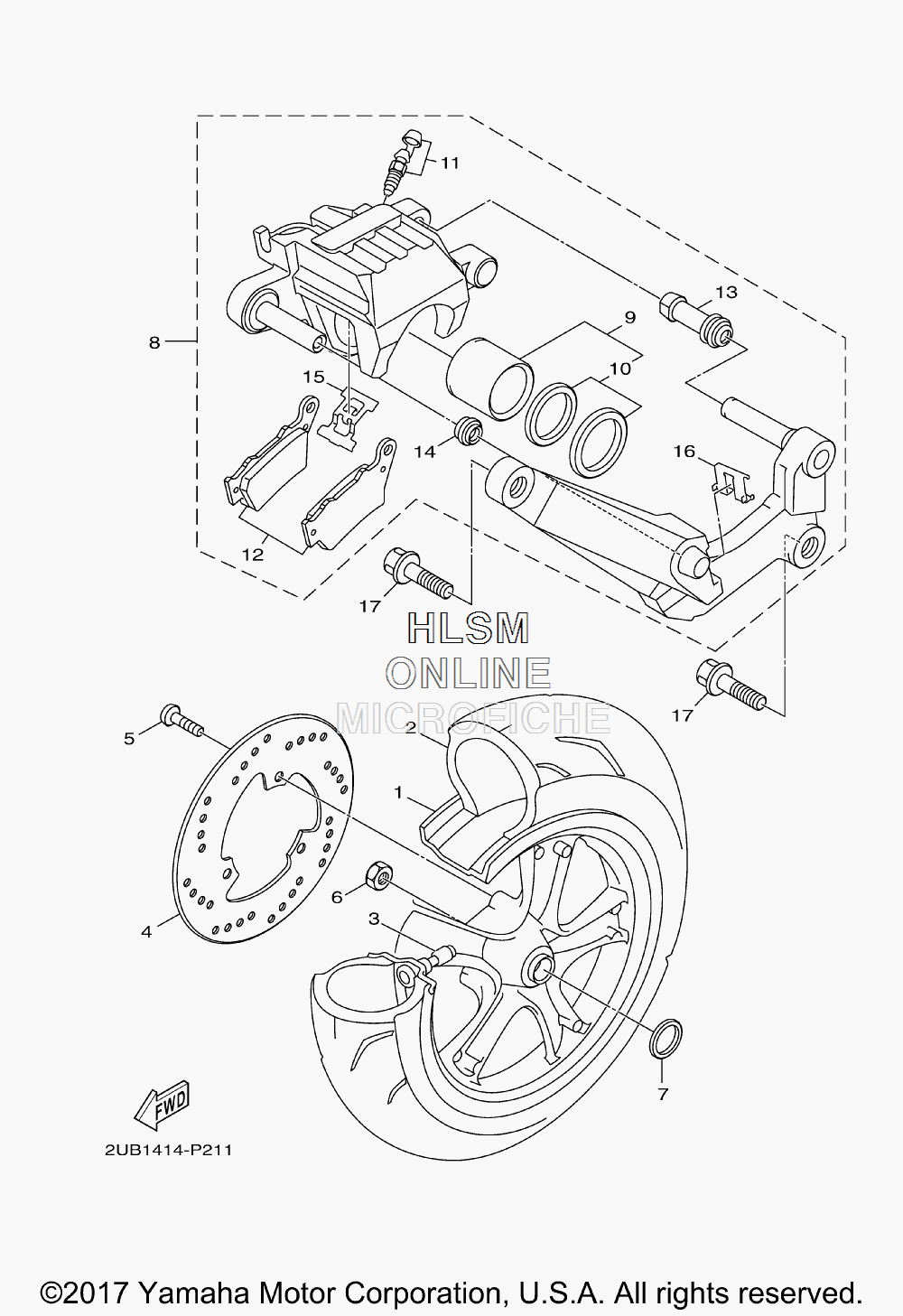

WHEEL - REAR для Yamaha ZUMA 125 - 2018 года выпуска`
-
№АртикулНазвание
-
12JS-F5338-00-33 CAST WHEEL, REAR (YB - YAMAHA BLACK)CAST WHEEL, REAR (YB - YAMAHA BLACK)
-
294113-12802-00 TIRE (130/70-12 56L)TIRE (130/70-12 56L)
-
393900-00814-00 VALVE, RIM (PVR70)VALVE, RIM (PVR70)
-
42JS-F582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
590149-08814-00 SCREWSCREW
-
690185-14124-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790201-220J8-00 WASHER, PLATEWASHER, PLATE
-
82JS-F580W-60-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
92JS-W0057-10-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
105S9-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
112JS-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
122JS-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
132JS-F5927-00-00 ...SPRING, SUPPORT...SPRING, SUPPORT
-
142JS-F5937-00-00 ...BOOT 2...BOOT 2
-
152JS-F5919-20-00 ...SUPPORT, PAD...SUPPORT, PAD
-
162JS-F5919-30-00 ...SUPPORT, PAD...SUPPORT, PAD
-
1790105-10638-00 BOLT, FLANGEBOLT, FLANGE
