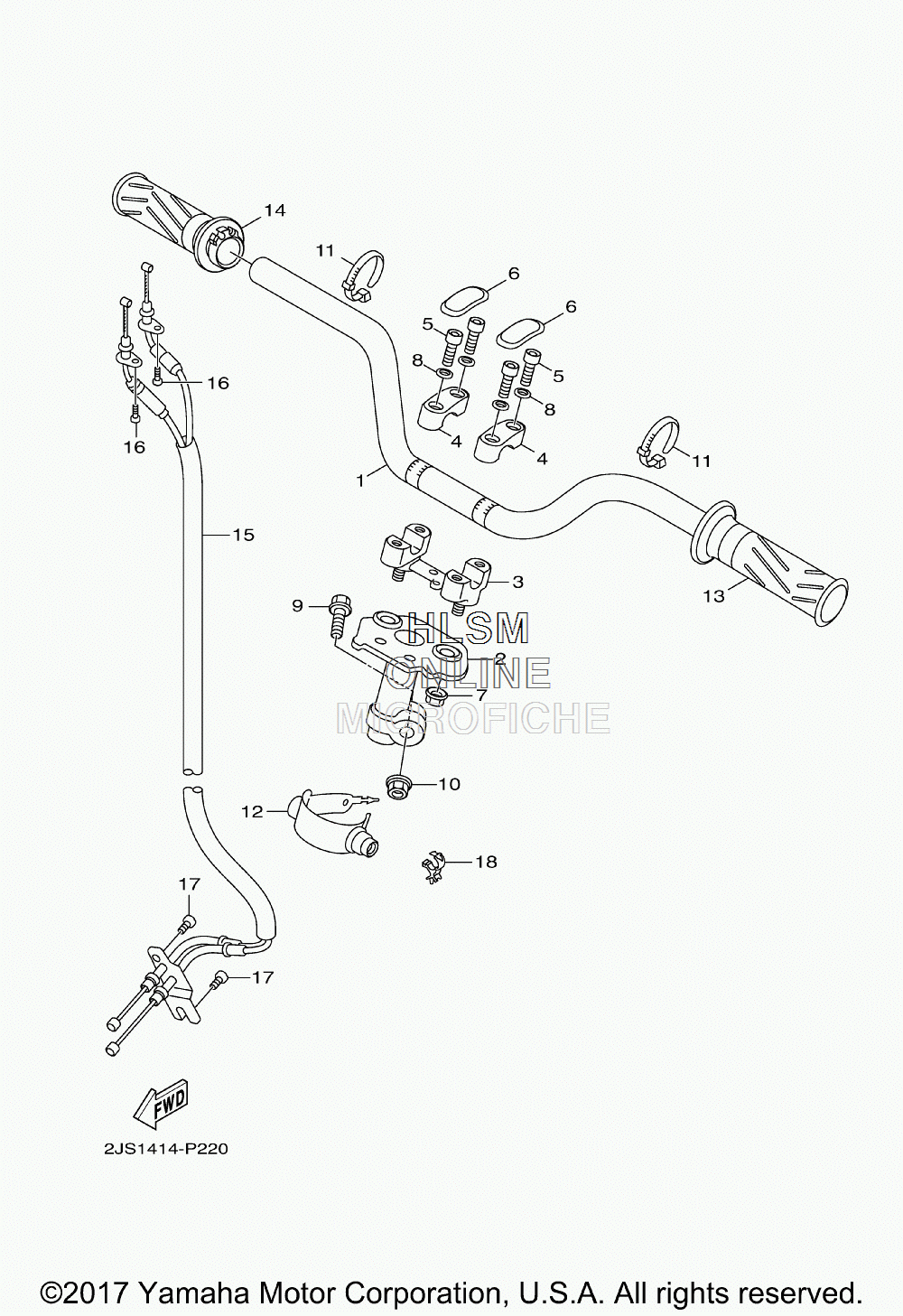

HANDLEBAR W/ CABLES - MIRRORS для Yamaha ZUMA 125 - 2018 года выпуска`
-
№АртикулНазвание
-
12JS-F6111-00-00 HANDLEBARHANDLEBAR
-
22JS-F3461-00-00 BRACKET, HANDLEBRACKET, HANDLE
-
35FH-F3442-10-35 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
41MH-F3441-01-35 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
591317-08025-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
61MH-F3469-00-00 CAP, BOLTCAP, BOLT
-
790185-10814-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890201-08823-00 WASHER, PLATEWASHER, PLATE
-
990105-10864-00 BOLT, FLANGEBOLT, FLANGE
-
1090185-10814-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1131U-H3936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
121DK-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
135ML-F6241-01-00 GRIPGRIP
-
145UA-F6240-00-00 GRIP ASSYGRIP ASSY
-
152JS-F6301-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
1691317-05010-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
1791317-05010-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
1890464-16803-00 CLAMPCLAMP
