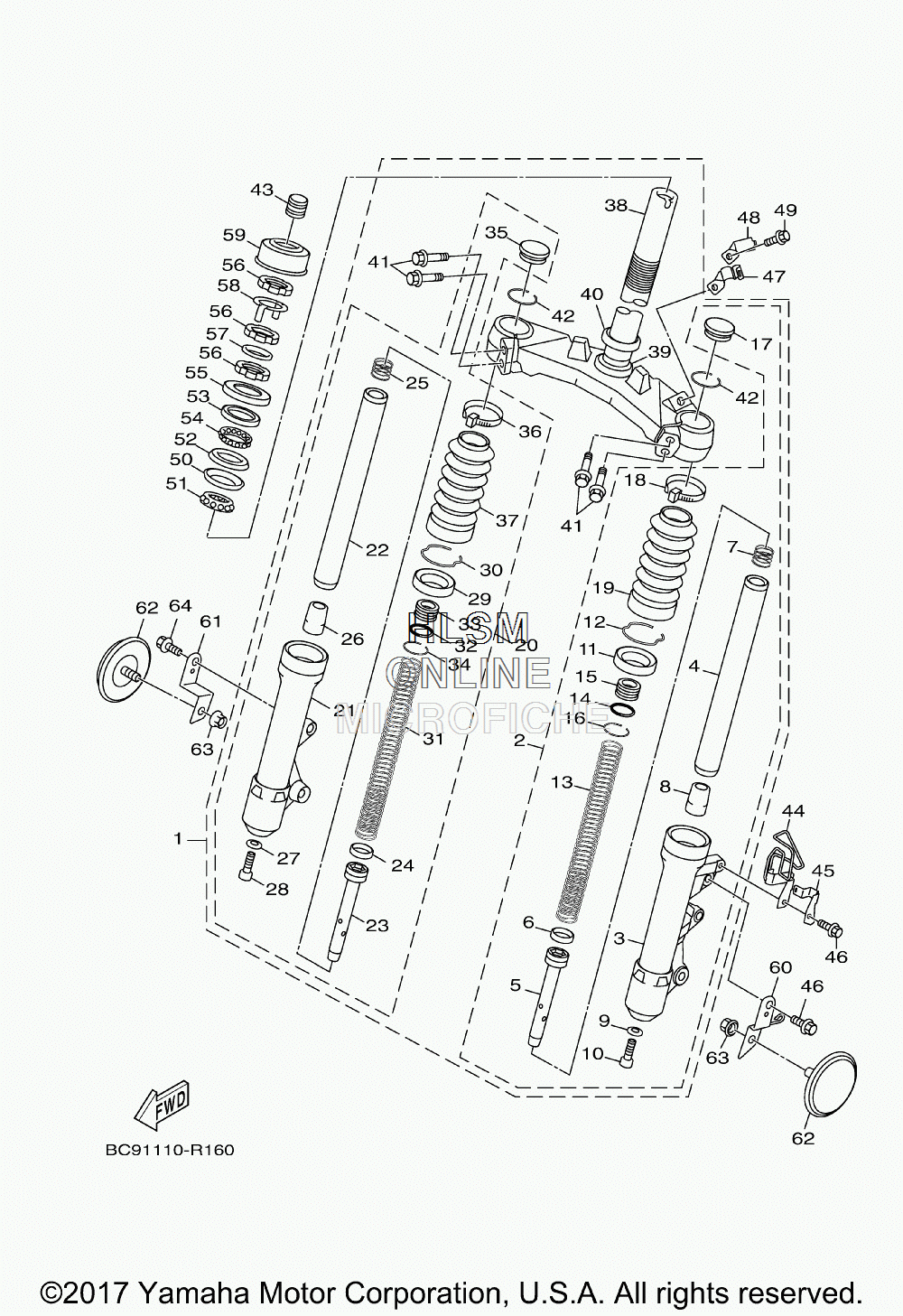

SUSPENSION - FRONT FORK для Yamaha ZUMA 125 - 2018 года выпуска
-
№АртикулНазвание
-
12JS-F3100-00-00 FRONT FORK ASSYFRONT FORK ASSY
-
22JS-F3102-00-00 ...FRONT FORK ASSY (L.H)...FRONT FORK ASSY (L.H)
-
32JS-F3126-00-00 ......TUBE, OUTER (L.H)......TUBE, OUTER (L.H)
-
42JS-F3110-00-00 ............INNER TUBE COMP. 1............INNER TUBE COMP. 1
-
52JS-F3142-00-00 ......SEAT, SPRING UPPER......SEAT, SPRING UPPER
-
64P9-F318X-00-00 ......PISTON RING......PISTON RING
-
74C6-F3151-00-00 ......SPRING, REBOUND......SPRING, REBOUND
-
84P9-F3171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
94P9-F3158-00-00 ......GASKET......GASKET
-
104P9-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
114C6-F3145-00-00 ......OIL SEAL......OIL SEAL
-
124P9-F3157-00-00 ......RING, PISTON......RING, PISTON
-
132JS-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
144C6-F3147-00-00 ......O-RING......O-RING
-
154P9-F3113-00-00 ......COLLAR......COLLAR
-
164P9-F3155-00-00 ......RING, FELT......RING, FELT
-
174P9-F3154-00-00 ......CAP......CAP
-
184C6-F3192-00-00 ......BAND......BAND
-
192JS-F3191-00-00 ......BOOT......BOOT
-
202JS-F3103-00-00 ...FRONT FORK ASSY (R.H)...FRONT FORK ASSY (R.H)
-
212JS-F3136-00-00 ......TUBE, OUTER 2......TUBE, OUTER 2
-
222JS-F3110-00-00 ............INNER TUBE COMP. 1............INNER TUBE COMP. 1
-
232JS-F3142-00-00 ......SEAT, SPRING UPPER......SEAT, SPRING UPPER
-
244P9-F318X-00-00 ......PISTON RING......PISTON RING
-
254C6-F3151-00-00 ......SPRING, REBOUND......SPRING, REBOUND
-
264P9-F3171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
274P9-F3158-00-00 ......GASKET......GASKET
-
284P9-F3181-00-00 ......BOLT, HEXAGON SOCKET HEAD......BOLT, HEXAGON SOCKET HEAD
-
294C6-F3145-00-00 ......OIL SEAL......OIL SEAL
-
304P9-F3157-00-00 ......RING, PISTON......RING, PISTON
-
312JS-F3141-00-00 ......SPRING, FRONT FORK......SPRING, FRONT FORK
-
324C6-F3147-00-00 ......O-RING......O-RING
-
334P9-F3113-00-00 ......COLLAR......COLLAR
-
344P9-F3155-00-00 ......RING, FELT......RING, FELT
-
354P9-F3154-00-00 ......CAP......CAP
-
364C6-F3192-00-00 ......BAND......BAND
-
372JS-F3191-00-00 ......BOOT......BOOT
-
382JS-F3340-00-00 ...UNDER BRACKET COMP....UNDER BRACKET COMP.
-
393KW-F3462-00-00 ...SEAL, DUST...SEAL, DUST
-
404C6-F3411-10-00 ...RACE, BALL 1...RACE, BALL 1
-
411CE-F3346-00-00 ...BOLT 1...BOLT 1
-
424P9-F3153-00-00 ...RING, SNAP...RING, SNAP
-
4310B-F312G-00-00 PLUG, HOLEPLUG, HOLE
-
44BC9-F5875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
45BC9-F5875-10-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
4695807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
472JS-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
482JS-F5876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
4995807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
504C6-F3412-00-00 RACE, BALL 2RACE, BALL 2
-
514C6-F341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
524C6-F3414-00-00 RACE, BALL 4RACE, BALL 4
-
534C6-F3413-00-00 RACE, BALL 3RACE, BALL 3
-
544C6-F341D-00-00 RETAINER, BALL BEARING 2RETAINER, BALL BEARING 2
-
554C6-F3416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
5690179-25811-00 NUTNUT
-
5790202-26142-00 WASHER, PLATEWASHER, PLATE
-
584VP-F3418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
5941D-F3415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
-
60BC9-H5112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
61BC9-H5122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
621CH-H5131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
6395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6495807-06014-00 BOLT, FLANGEBOLT, FLANGE
