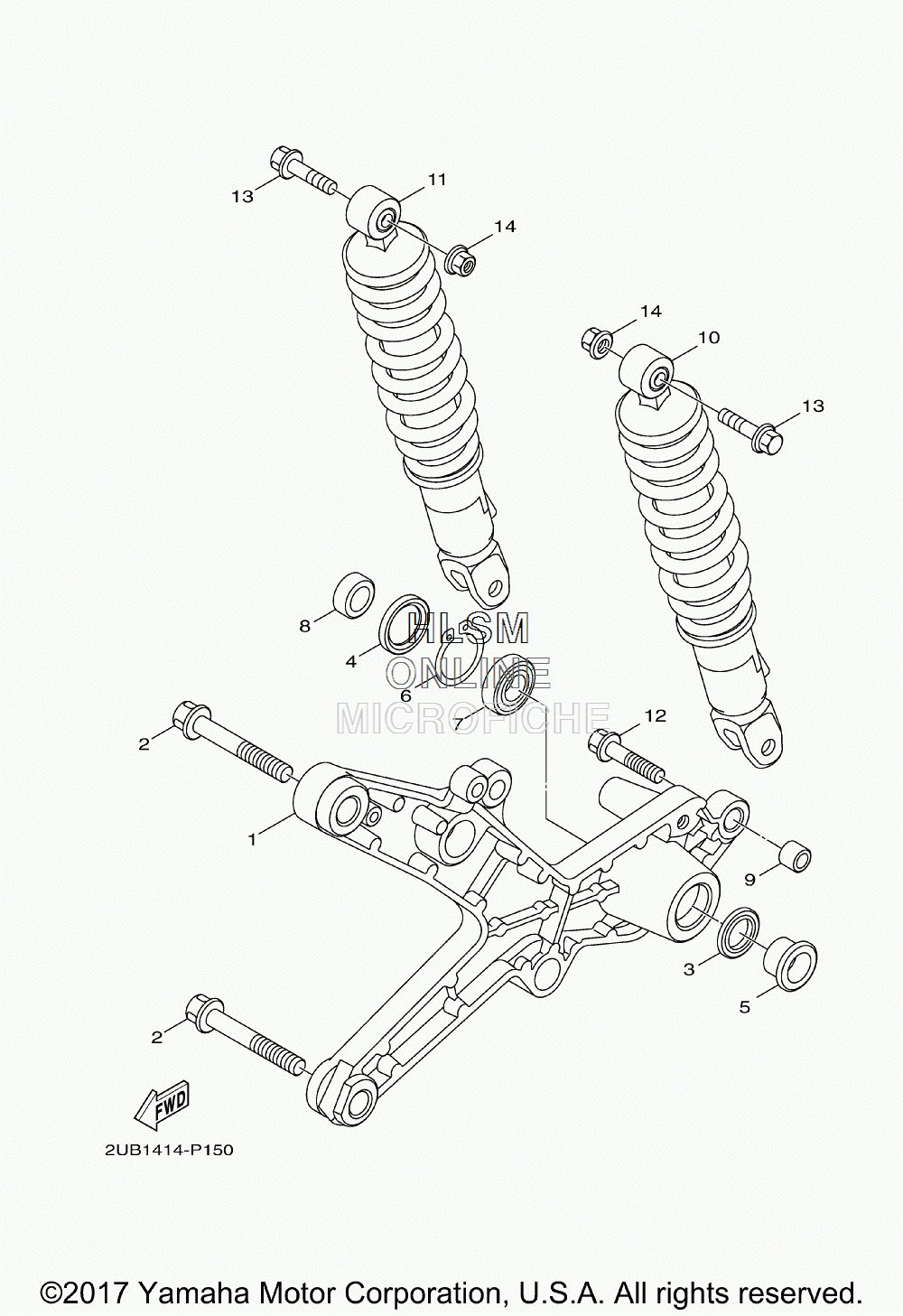

SUSPENSION - REAR ARM W/ SHOCK для Yamaha ZUMA 125 - 2018 года выпуска`
-
№АртикулНазвание
-
12JS-F2171-10-00 ARM, REAR 1ARM, REAR 1
-
295827-08045-00 BOLT, FLANGEBOLT, FLANGE
-
393109-28811-00 OIL SEALOIL SEAL
-
493106-28809-00 OIL SEALOIL SEAL
-
590387-153N8-00 COLLARCOLLAR
-
699009-42500-00 CIRCLIPCIRCLIP
-
793306-302X1-00 BEARINGBEARING
-
890387-15813-00 COLLARCOLLAR
-
94X6-F2216-00-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
10BA4-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
11BA4-F2220-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1290105-088C7-00 BOLT, FLANGEBOLT, FLANGE
-
1390101-10875-00 BOLTBOLT
-
1495707-10500-00 NUT, FLANGENUT, FLANGE
