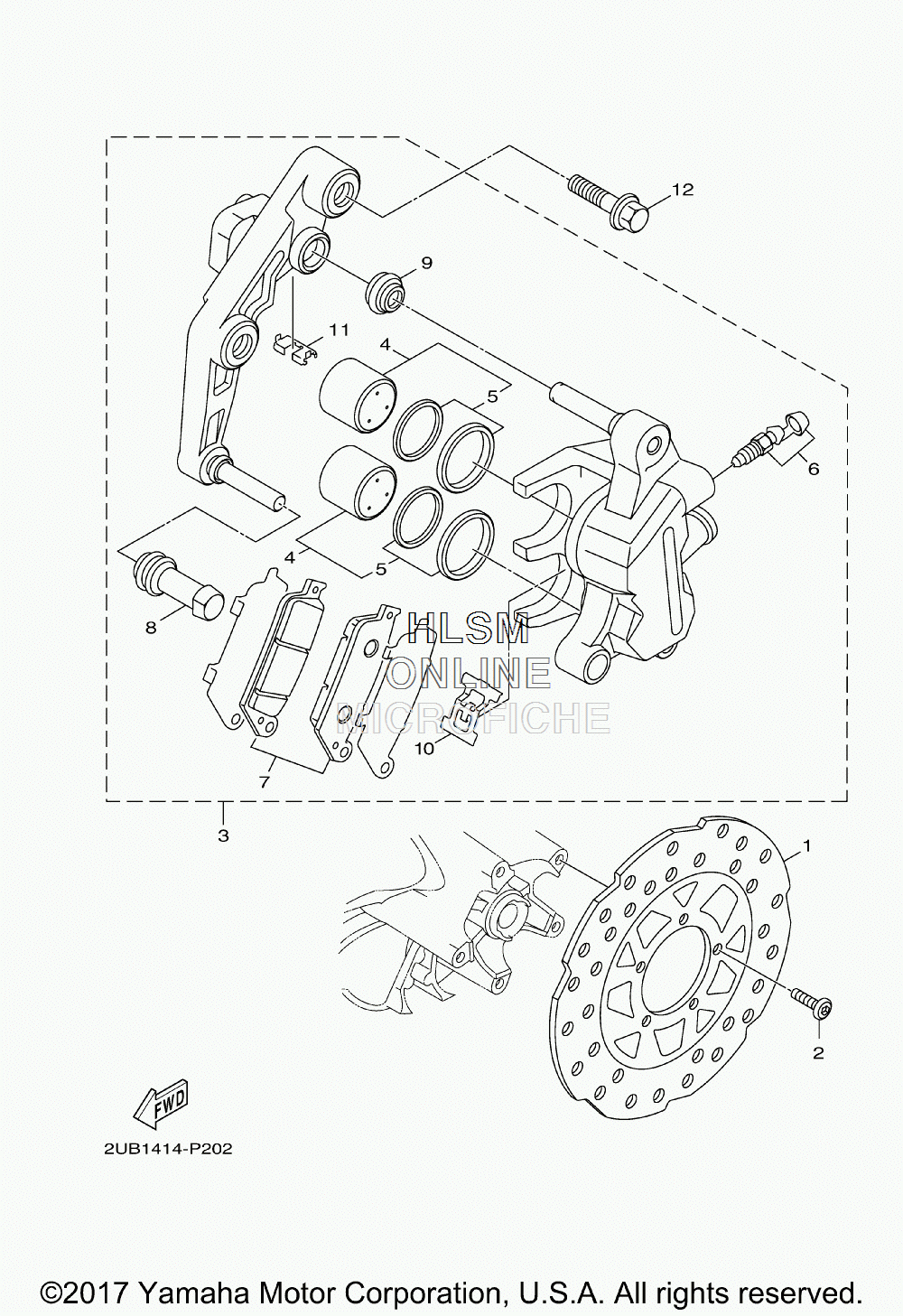

BRAKE - FRONT CALIPER для Yamaha ZUMA 125 - 2018 года выпуска`
-
№АртикулНазвание
-
12JS-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290149-08814-00 SCREWSCREW
-
32JS-F580T-60-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
42JS-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55NW-W0047-10-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
62JS-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
72JS-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
82JS-F5927-00-00 ...SPRING, SUPPORT...SPRING, SUPPORT
-
92JS-F5937-00-00 ...BOOT 2...BOOT 2
-
102JS-F5919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
112JS-F5919-10-00 ...SUPPORT, PAD...SUPPORT, PAD
-
1290105-10638-00 BOLT, FLANGEBOLT, FLANGE
