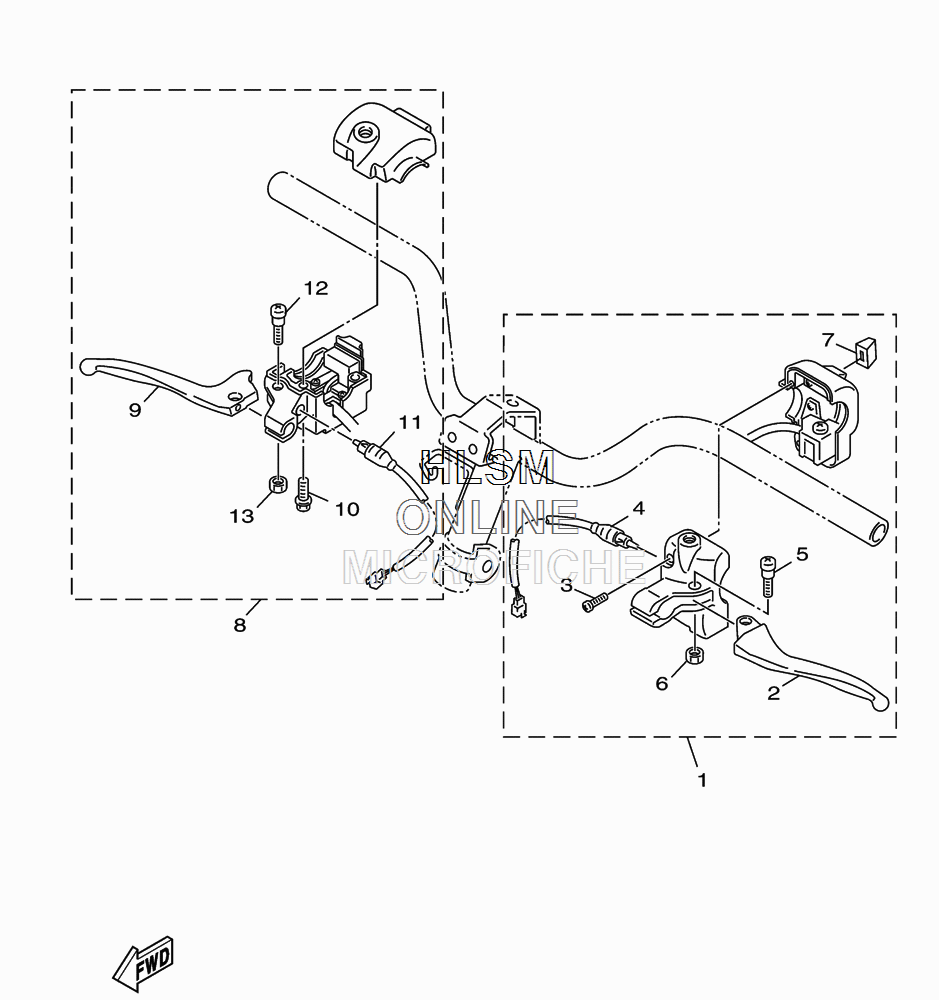

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha VINO CLASSIC - 2010 года выпуска`
-
№АртикулНазвание
-
15ST-H2910-12-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
25SU-H3912-00-00 LEVER 1LEVER 1
-
398507-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
437B-H3980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
53XG-H3915-00-00 SCREW, LEVER FITTINGSCREW, LEVER FITTING
-
695607-05100-00 NUT, UNUT, U
-
75SU-H357H-00-00 KNOBKNOB
-
83D1-H2920-02-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
95ST-H3922-10-00 LEVER 2LEVER 2
-
1098507-05045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1137B-H3980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
123XG-H3915-00-00 SCREW, LEVER FITTINGSCREW, LEVER FITTING
-
1395607-05100-00 NUT, UNUT, U
