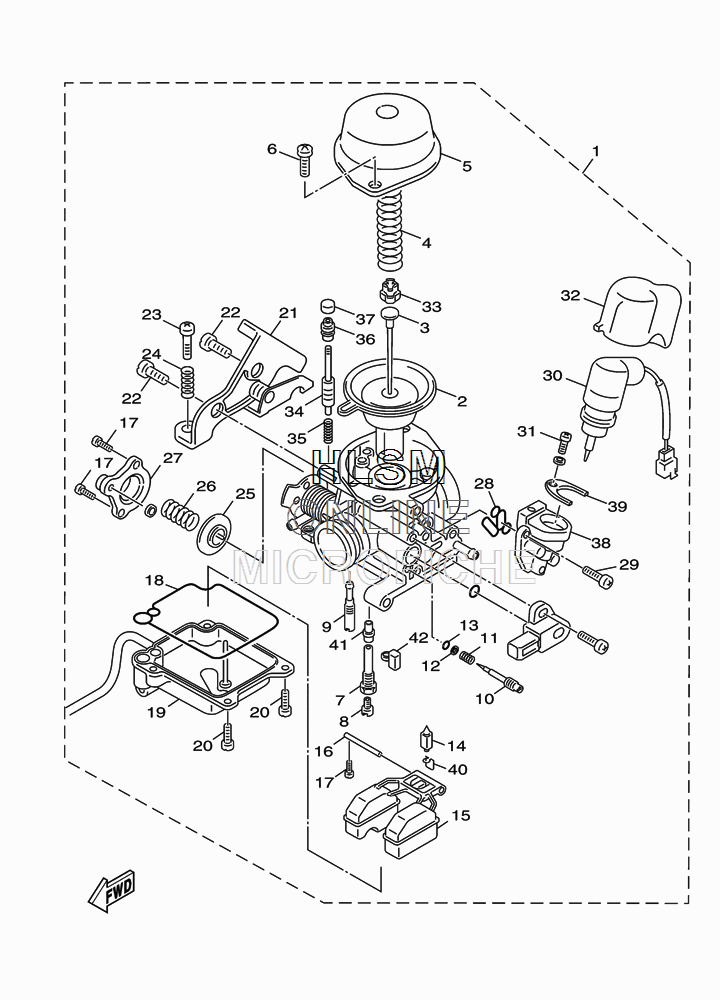

CARBURETOR ASSY. для Yamaha VINO CLASSIC - 2010 года выпуска
-
№АртикулНазвание
-
13D1-E4901-00-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
25ST-E4940-00-00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
35ST-E4916-10-00 NEEDLENEEDLE
-
45ST-E4933-00-00 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
55ST-E4958-00-00 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
6688-14592-00-00 SCREWSCREW
-
75ST-E414G-10-00 PIPE, MAIN BLEEDPIPE, MAIN BLEED
-
85ST-E4943-20-00 JET, MAIN (#82)JET, MAIN (#82)
-
95ST-E4948-01-00 JET (#35)JET (#35)
-
103D1-E4923-00-00 SCREW, PILOTSCREW, PILOT
-
115ST-E4160-00-00 COIL, SPRINGCOIL, SPRING
-
123TJ-14952-00-00 WASHERWASHER
-
133TJ-14562-40-00 O-RINGO-RING
-
145ST-E4D40-00-00 VALVE ASSYVALVE ASSY
-
155TL-E4985-00-00 FLOATFLOAT
-
16676-14548-00-00 PIN, FLOAT ARMPIN, FLOAT ARM
-
17688-14592-00-00 SCREWSCREW
-
185TL-E4984-00-00 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
195ST-E4980-00-00 BODY, FLOAT CHAMBERBODY, FLOAT CHAMBER
-
2098502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
215ST-E4926-00-00 BRACKET, THROTTLE 1BRACKET, THROTTLE 1
-
225TY-E4245-00-00 SCREW, GUIDESCREW, GUIDE
-
235ST-E4922-00-00 SCREW, THROTTLESCREW, THROTTLE
-
245TL-E4531-00-00 SPRING, ADJUST SCREWSPRING, ADJUST SCREW
-
255GS-14940-00-00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
265ST-E4275-00-00 SPRINGSPRING
-
275ST-E4280-00-00 COVER, CARBURETORCOVER, CARBURETOR
-
285ST-E4147-00-00 O-RINGO-RING
-
295ST-E4429-00-00 SCREWSCREW
-
305ST-E4370-10-00 PLUNGER STARTER ASSYPLUNGER STARTER ASSY
-
315TY-E4871-00-00 SCREWSCREW
-
325TY-E4967-00-00 COVERCOVER
-
335ST-E4936-00-00 SEAT, SPRINGSEAT, SPRING
-
345ST-E4853-00-00 PLUNGERPLUNGER
-
355ST-E4D35-00-00 SPRING, PLUNGERSPRING, PLUNGER
-
365ST-E4969-00-00 CAPCAP
-
375ST-E4779-00-00 COLLARCOLLAR
-
385ST-E4907-00-00 BODY, STARTERBODY, STARTER
-
395ML-E4945-00-00 PLATEPLATE
-
40663-14159-00-00 CLIPCLIP
-
4124W-14193-00-00 PIPEPIPE
-
425ST-14196-00-00 PIPE, OVER FLOW 1PIPE, OVER FLOW 1
