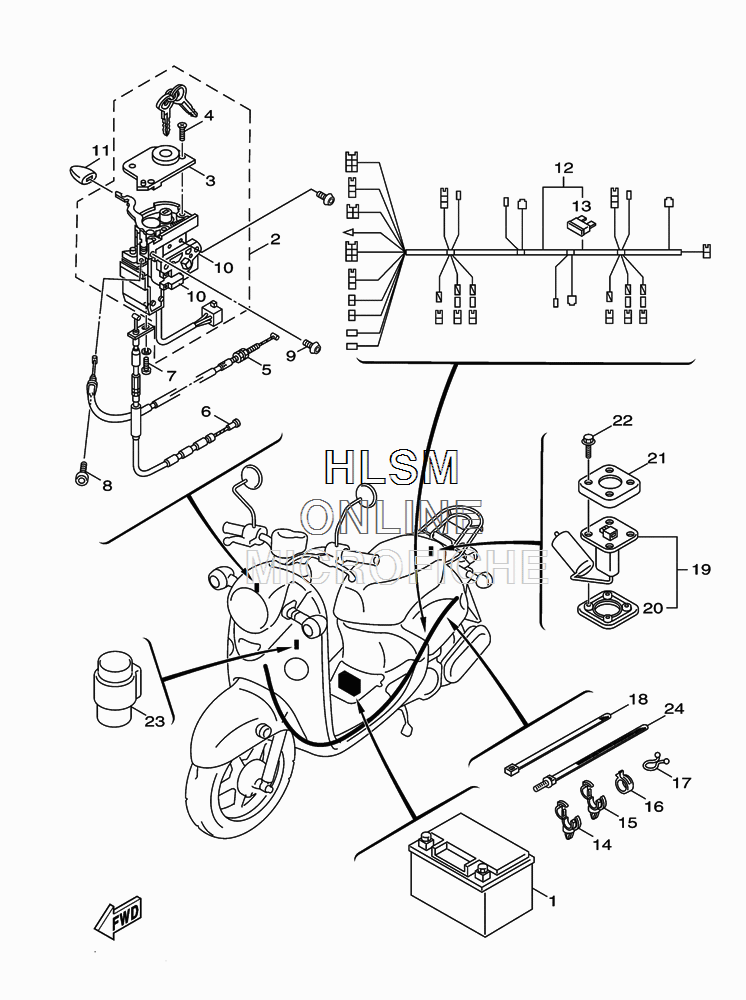

ELECTRICAL 2 для Yamaha VINO CLASSIC - 2010 года выпуска`
-
№АртикулНазвание
-
1BTY-GTX5L-BS-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
25ST-WH202-40-00 KEY SETKEY SET
-
35ST-F831B-00-00 CASE, UNIT 1CASE, UNIT 1
-
498707-04012-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
55ST-F637E-00-00 CABLE, CONTROL 1CABLE, CONTROL 1
-
65ST-F478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
798507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
890110-05800-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990149-06813-00 SCREWSCREW
-
1090149-06814-00 SCREWSCREW
-
115SU-F836X-00-00 KNOB, 1KNOB, 1
-
123D1-H2590-01-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
135ML-H2151-20-00 FUSE (7.5A)FUSE (7.5A)
-
1490464-20803-00 CLAMPCLAMP
-
1590464-20803-00 CLAMPCLAMP
-
1690464-25801-00 CLAMPCLAMP
-
1790464-23811-00 CLAMPCLAMP
-
1890464-12812-00 CLAMPCLAMP
-
195ST-XH575-00-00 SENDER UNIT ASSYSENDER UNIT ASSY
-
204US-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
215SU-H5757-00-00 RETAINERRETAINER
-
2290119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
235CA-H3350-10-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
2490464-30802-00 CLAMPCLAMP
