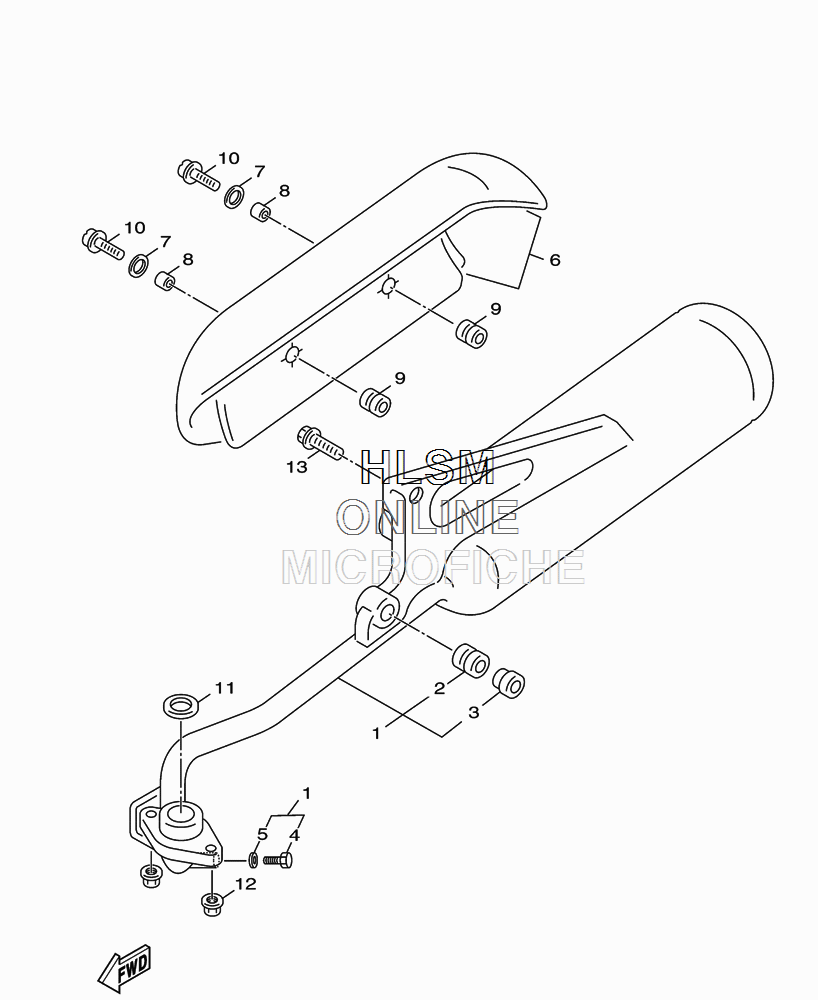

EXHAUST ASSY. для Yamaha VINO CLASSIC - 2010 года выпуска
-
№АртикулНазвание
-
13D1-E4610-00-98 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
24VP-E4445-00-00 GROMMETGROMMET
-
34VP-E4779-00-00 COLLARCOLLAR
-
497080-06008-00 BOLT, HEX.BOLT, HEX.
-
592990-06600-00 WASHER, PLATEWASHER, PLATE
-
63D1-E4708-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
790201-06055-00 WASHER, PLATEWASHER, PLATE
-
890387-06817-00 COLLARCOLLAR
-
990480-12843-00 GROMMETGROMMET
-
1098980-06016-00 SCREW, BINDSCREW, BIND
-
111P4-E4613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1295707-08500-00 NUT, FLANGENUT, FLANGE
-
1390105-08002-00 BOLT, FLANGEBOLT, FLANGE
