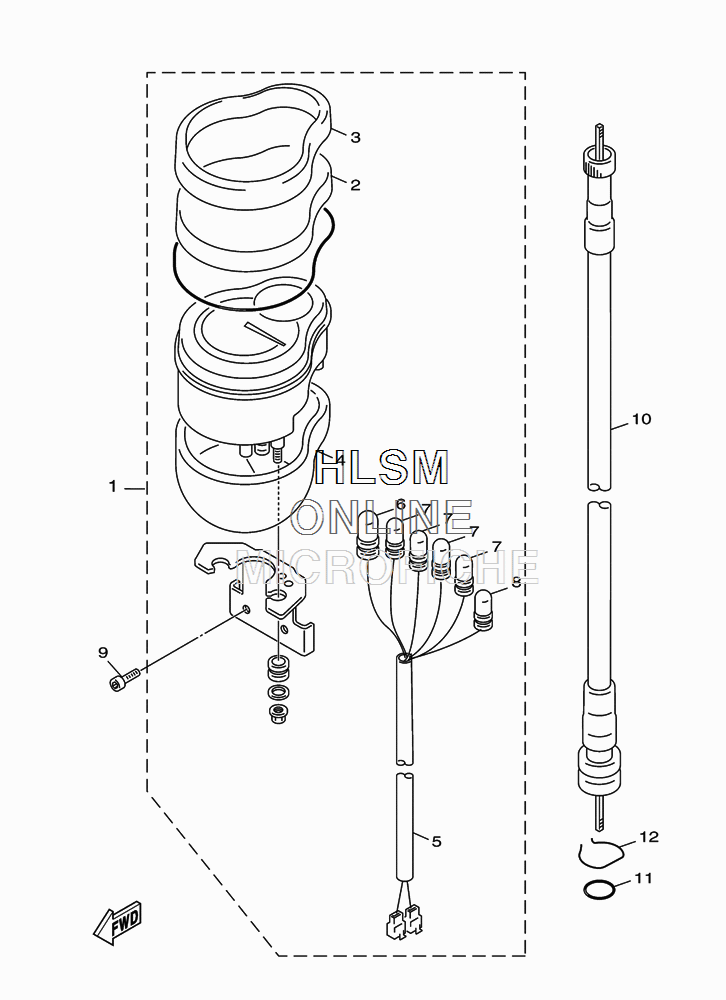

INSTRUMENT PANEL для Yamaha VINO CLASSIC - 2010 года выпуска`
-
№АртикулНазвание
-
13D1-H3510-01-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
25ST-H353K-00-00 GLASS PLATEGLASS PLATE
-
35ST-H353E-10-00 CASE, METER UPPERCASE, METER UPPER
-
45ST-H3507-10-00 CASE COMP, UNDERCASE COMP, UNDER
-
53D1-H3509-00-00 SOCKET CORD ASSYSOCKET CORD ASSY
-
63GF-H3517-00-00 BULB (12V-1.7W)BULB (12V-1.7W)
-
74CW-H3517-00-00 BULB (14V-3W)BULB (14V-3W)
-
85JS-H3517-00-00 BULB (12V-1.7W)BULB (12V-1.7W)
-
991317-06012-00 BOLTBOLT
-
105ST-H3550-02-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
-
1193210-14805-00 O-RINGO-RING
-
124X6-F5137-00-00 RING, STOPRING, STOP
