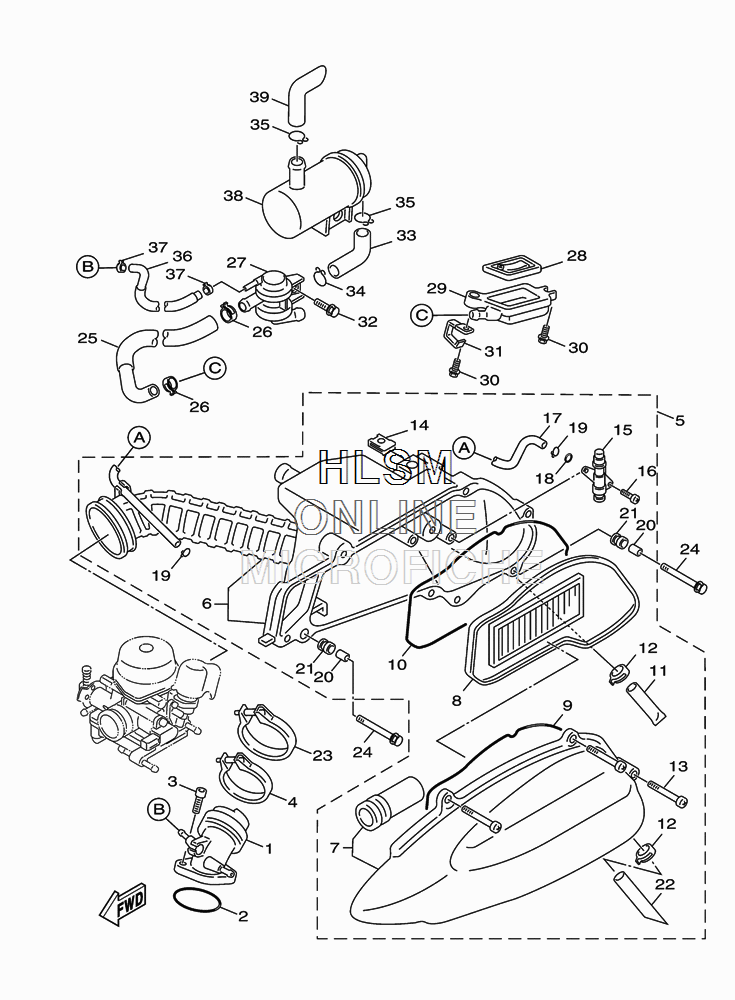

AIR CLEANER ASSY. W/ INTAKE для Yamaha VINO CLASSIC - 2010 года выпуска

№

Артикул

Название
1

5ST-E3585-00-00 MANIFOLD

MANIFOLD
2

93210-22803-00 O-RING

O-RING
3

91317-06020-00 BOLT

BOLT
4

5ST-E3575-00-00 BAND

BAND
5

5ST-E4410-12-00 AIR CLEANER ASSY.

AIR CLEANER ASSY.
6

5ST-WE441-01-00 AIR CLEANER CASE COMP.

AIR CLEANER CASE COMP.
7

5ST-WE442-10-00 CAP, CLEANER CASE 1

CAP, CLEANER CASE 1
8

5ST-E4451-00-00 ELEMENT, AIR CLEANER

ELEMENT, AIR CLEANER
9

5ST-E4467-00-00 SEAL

SEAL
10

5ST-E4476-00-00 SEAL

SEAL
11

5ST-E443E-00-00 PIPE, DRAIN

PIPE, DRAIN
12

90467-12804-00 CLIP

CLIP
13

97707-50125-00 SCREW, TAPPING

SCREW, TAPPING
14

5ST-E4164-00-00 NUT, HOLDING

NUT, HOLDING
15

5ST-E4303-00-00 COMPENSATOR ASSY

COMPENSATOR ASSY
16

97707-50530-00 SCREW, TAPPING

SCREW, TAPPING
17

5ST-E4318-00-00 PIPE STARTER

PIPE STARTER
18

93210-108A6-00 O-RING

O-RING
19

90467-07029-00 CLIP

CLIP
20

5TY-E4449-00-00 COLLAR

COLLAR
21

5ST-E4435-00-00 GROMMET

GROMMET
22

5ST-E443G-00-00 PIPE, DRAIN 2

PIPE, DRAIN 2
23

90450-48802-00 HOSE CLAMP ASSY

HOSE CLAMP ASSY
24

95807-06030-00 BOLT, FLANGE

BOLT, FLANGE
25

5ST-E4881-00-00 HOSE, BEND 1

HOSE, BEND 1
26

90468-08812-00 CLIP

CLIP
27

5ST-E4840-00-00 AIR CUT VALVE ASSY

AIR CUT VALVE ASSY
28

5ST-E4890-00-00 REED VALVE ASSY

REED VALVE ASSY
29

5ST-E4858-00-00 CAP, CASE

CAP, CASE
30

95807-06014-00 BOLT, FLANGE

BOLT, FLANGE
31

90462-08801-00 CLAMP

CLAMP
32

90109-063F1-00 BOLT

BOLT
33

5ST-E4882-00-00 HOSE, BEND 2

HOSE, BEND 2
34

90467-16829-00 CLIP

CLIP
35

90467-18830-00 CLIP

CLIP
36

5ST-E3542-00-00 HOSE, VACUUM SENSING 1

HOSE, VACUUM SENSING 1
37

90467-08092-00 CLIP

CLIP
38

5ST-E4806-00-00 AIR FILTER

AIR FILTER
39

5ST-E4883-00-00 HOSE, BEND 3

HOSE, BEND 3
