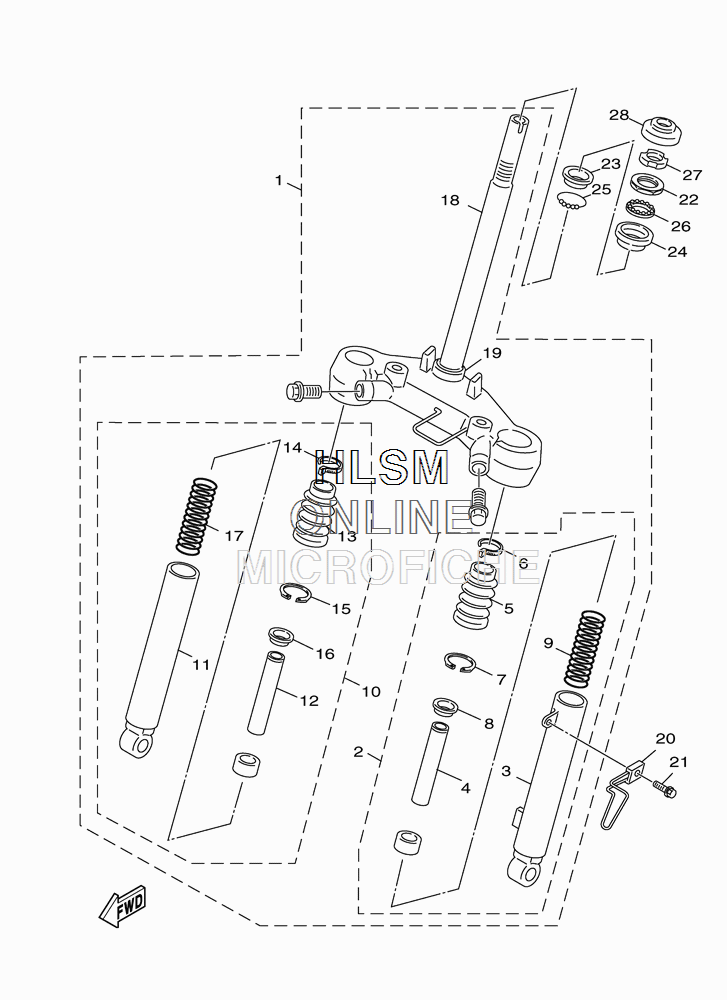

SUSPENSION - FRONT FORK для Yamaha VINO CLASSIC - 2010 года выпуска`
-
№АртикулНазвание
-
13D1-F3100-10-00 FRONT FORK ASSY (RIGHT)FRONT FORK ASSY (RIGHT)
-
213P-F3102-10-00 FRONT FORK ASSY (LEFT)FRONT FORK ASSY (LEFT)
-
313P-F3126-10-00 TUBE, OUTER (LEFT)TUBE, OUTER (LEFT)
-
43B3-F3110-00-00 INNER TUBE COMP.1INNER TUBE COMP.1
-
513P-F3191-00-00 BOOTBOOT
-
613P-F3192-00-00 BANDBAND
-
73NW-F3156-00-00 RING, SNAPRING, SNAP
-
85SU-F3145-00-00 OIL SEALOIL SEAL
-
913P-F3141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
1013P-F3103-10-00 FRONT FORK ASSY (RIGHT)FRONT FORK ASSY (RIGHT)
-
1113P-F3136-10-00 TUBE, OUTER (RIGHT)TUBE, OUTER (RIGHT)
-
123B3-F3110-00-00 INNER TUBE COMP.1INNER TUBE COMP.1
-
1313P-F3191-00-00 BOOTBOOT
-
1413P-F3192-00-00 BANDBAND
-
153NW-F3156-00-00 RING, SNAPRING, SNAP
-
165SU-F3145-00-00 OIL SEALOIL SEAL
-
1713P-F3141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
183D1-F3340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
1922F-23414-01-00 RACE, BALL 4RACE, BALL 4
-
205ST-F3317-00-00 HOLDER, CABLEHOLDER, CABLE
-
219580L-06010-00 BOLT, FLANGEBOLT, FLANGE
-
223KJ-23411-01-00 RACE, BALL 1RACE, BALL 1
-
2322F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
242E9-23412-00-00 RACE, BALL 2RACE, BALL 2
-
2522F-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
2693505-32042-00 BALLBALL
-
272E9-23454-00-00 NUT, FITTING 2NUT, FITTING 2
-
285SU-F3415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
