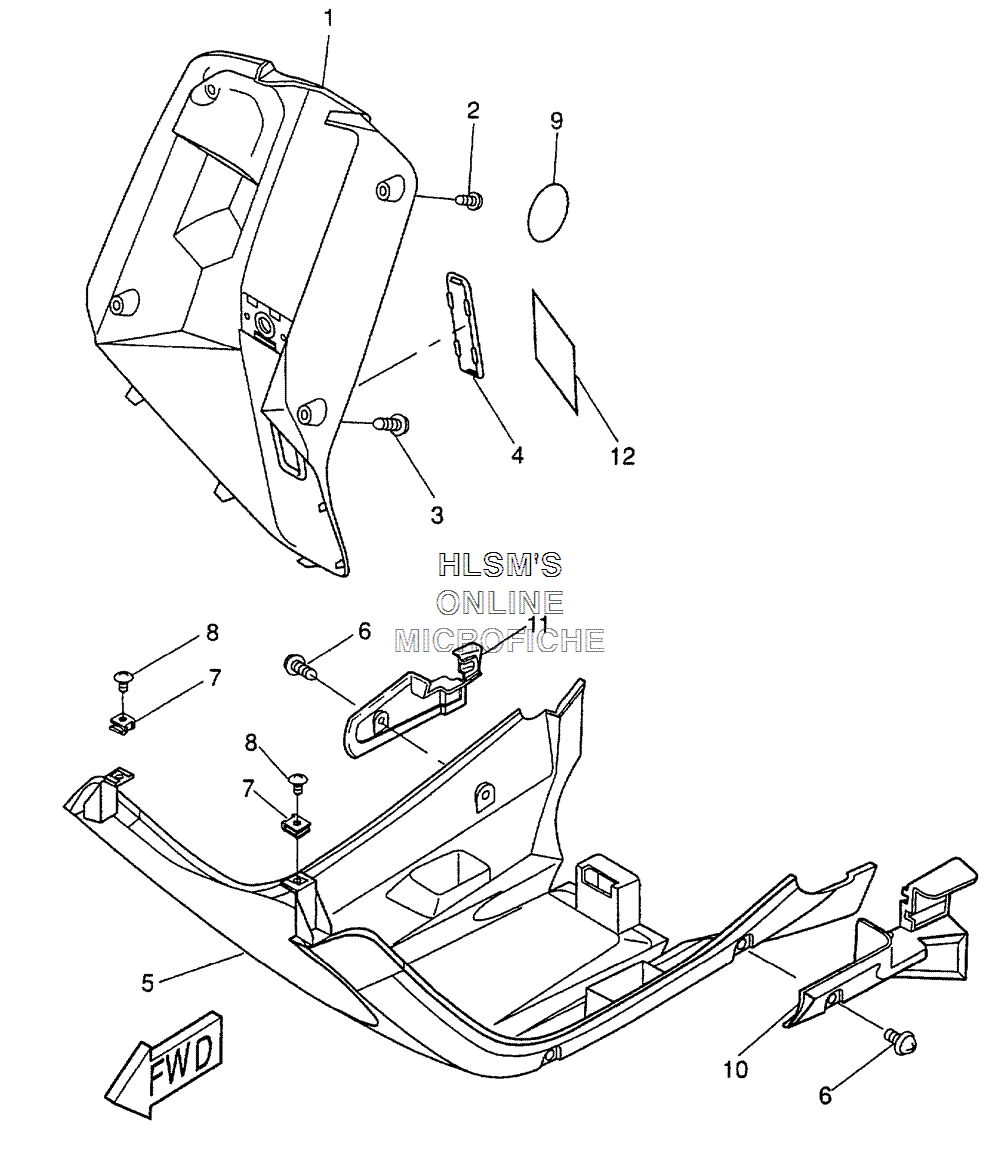

COWLING W/ LEG SHIELD для Yamaha ZUMA II - 2001 года выпуска`
-
№АртикулНазвание
-
13VL-F8311-10-00 LEG SHIELD 1 (BLACK)LEG SHIELD 1 (BLACK)
-
297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
398980-06012-00 SCREW, BINDSCREW, BIND
-
43WV-F8349-10-00 CAP (BLACK)CAP (BLACK)
-
54CA-F8385-10-00 COVER, LOWER (BLACK)COVER, LOWER (BLACK)
-
698980-06012-00 SCREW, BINDSCREW, BIND
-
790183-05042-00 NUT, SPRINGNUT, SPRING
-
890167-05X01-00 SCREW, TAPPINGSCREW, TAPPING
-
93VL-F8315-10-00 EMBLEM (OVM5)EMBLEM (OVM5)
-
103MX-27486-20-00 COVER 1 (BLACK)COVER 1 (BLACK)
-
113MX-27487-20-00 COVER 2 (BLACK)COVER 2 (BLACK)
-
124UY-F1186-00-00 PLATE, PERMIT (NOT SHOWN)PLATE, PERMIT (NOT SHOWN)
-
124UY-F179X-00-00 PLATE, EPA U50 (NOT SHOWN)PLATE, EPA U50 (NOT SHOWN)
-
123MX-21668-00-00 LABEL, TIRELABEL, TIRE
