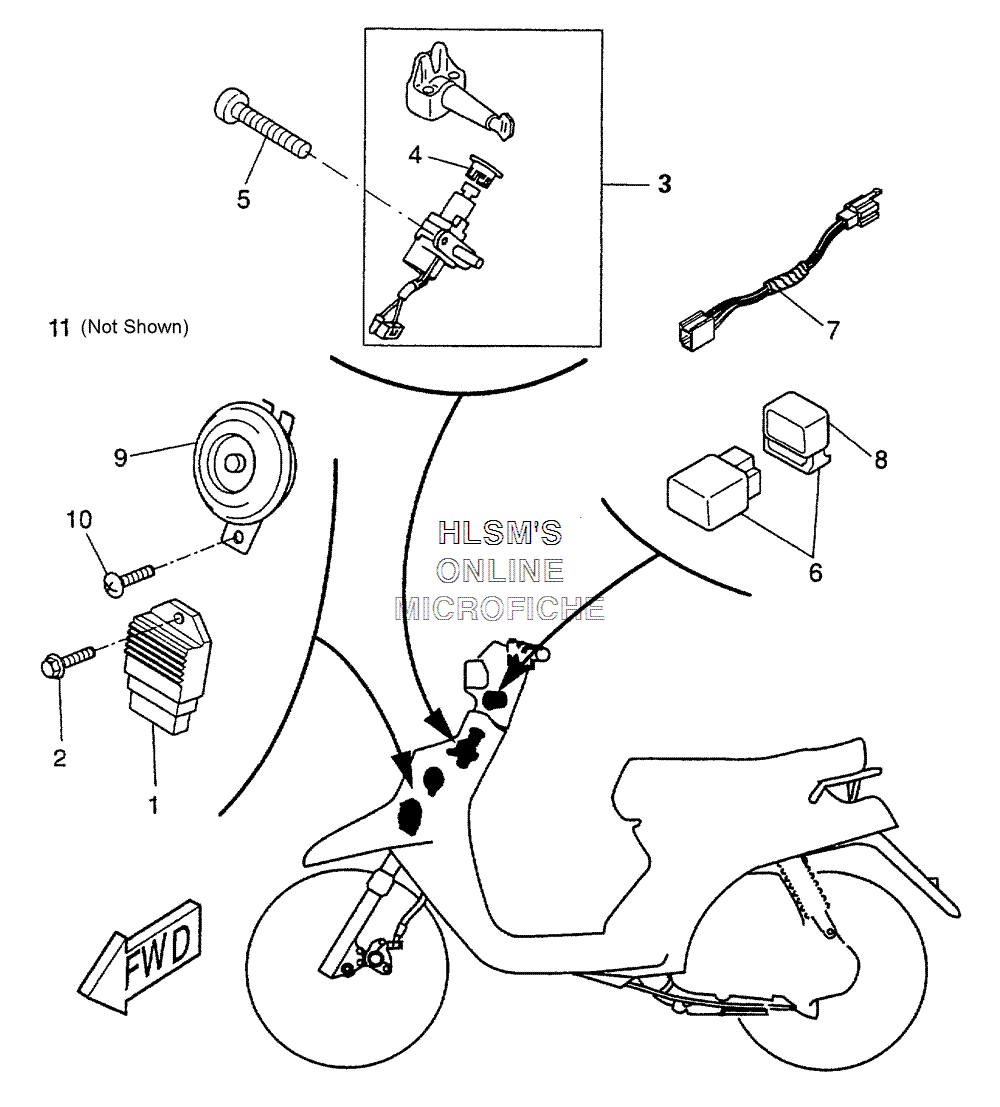

ELECTRICAL для Yamaha ZUMA II - 2001 года выпуска`
-
№АртикулНазвание
-
14VV-H1960-00-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
290106-06696-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
35JH-H2021-00-00 MAIN, SWITCH SEAT LMAIN, SWITCH SEAT L
-
44VV-H2532-00-00 ...CAP...CAP
-
590109-06851-00 BOLTBOLT
-
63VL-H3350-00-00 FLASHER RELAY ASSY.FLASHER RELAY ASSY.
-
74CH-H2509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
83VL-H5546-00-00 BANDBAND
-
94CU-H3371-00-00 HORNHORN
-
1098507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
114VU-H3936-01-00 BAND, SWITCH CORD (95.7X2.5) NOT SHOWNBAND, SWITCH CORD (95.7X2.5) NOT SHOWN
