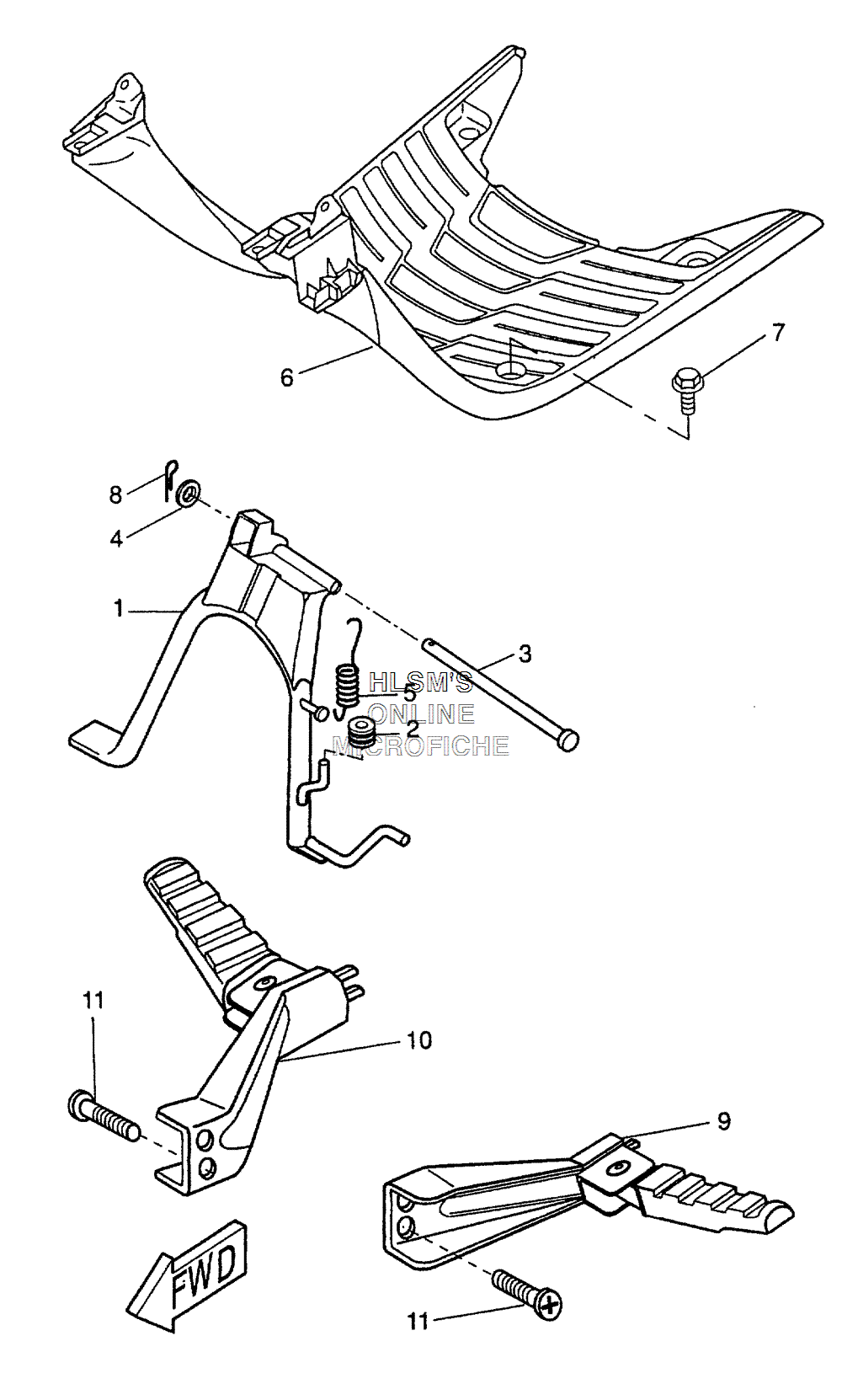

STAND W/ FOOTREST для Yamaha ZUMA II - 2001 года выпуска`
-
№АртикулНазвание
-
15LU-F7111-00-00 STAND, MAIN (BLACK)STAND, MAIN (BLACK)
-
290387-076V1-00 COLLARCOLLAR
-
390240-08X00-00 PIN, CLEVISPIN, CLEVIS
-
490202-08125-00 WASHER, PLATEWASHER, PLATE
-
590506-29280-00 SPRINGSPRING
-
63VL-F7481-10-00 BOARD, FOOTREST (BLACK)BOARD, FOOTREST (BLACK)
-
790119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
890468-12006-00 CLIPCLIP
-
93MX-27430-00-00 REAR FOOTREST ASSY. L (BLACK)REAR FOOTREST ASSY. L (BLACK)
-
103MX-27440-00-00 REAR FOOTREST ASSY. R (BLACK)REAR FOOTREST ASSY. R (BLACK)
-
1190111-08X00-00 BOLT HEX, SOCKET BUTTONBOLT HEX, SOCKET BUTTON
