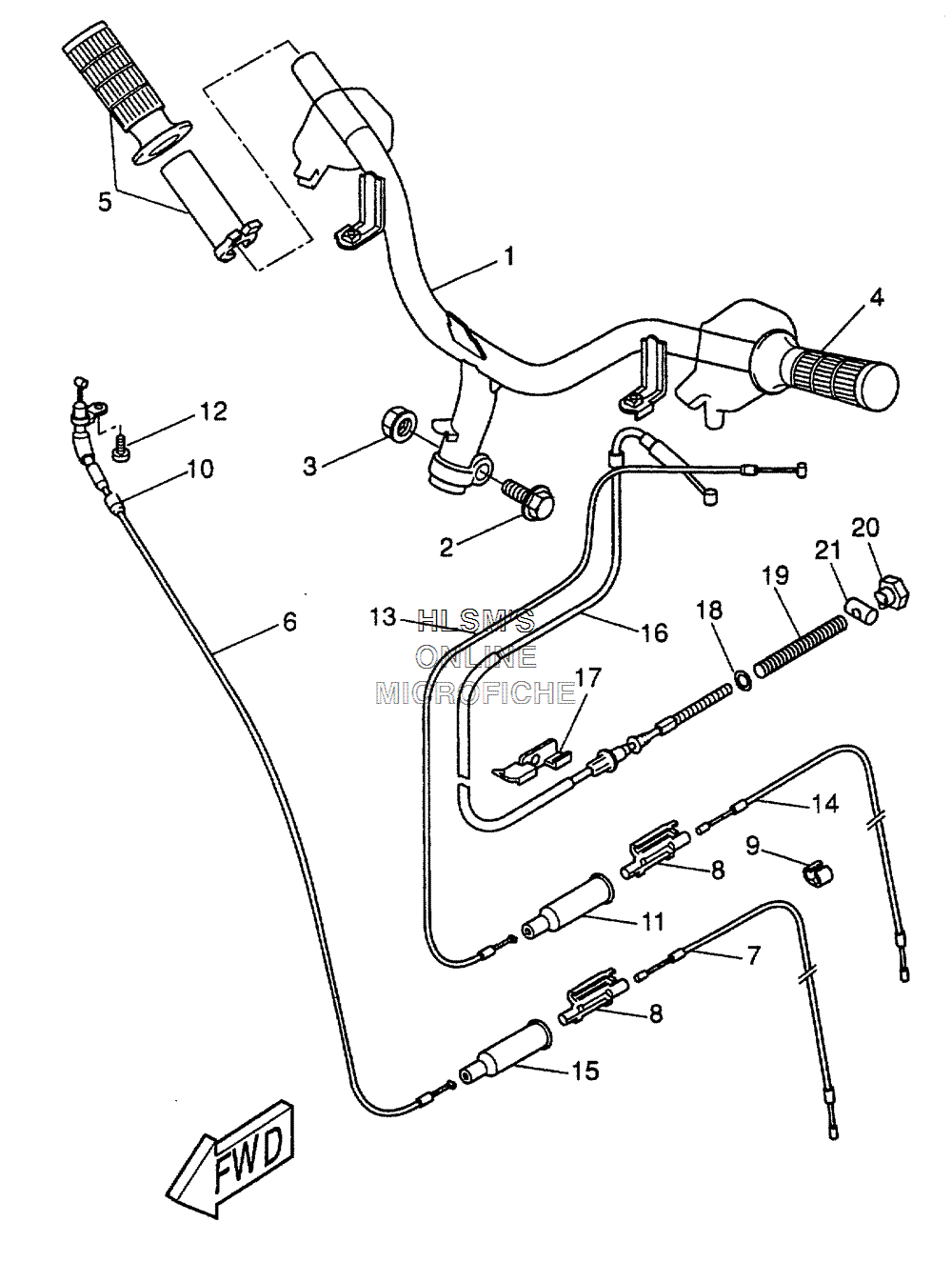

HANDLEBAR W/ CABLES - MIRRORS для Yamaha ZUMA II - 2001 года выпуска`
-
№АртикулНазвание
-
14RD-F6110-01-00 HANDLE COMP.HANDLE COMP.
-
290105-10036-00 BOLT, FLANGEBOLT, FLANGE
-
395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
44VU-F6241-00-00 GRIP (LEFT)GRIP (LEFT)
-
54VU-F6240-00-00 GRIP ASSY.GRIP ASSY.
-
64UY-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
74UY-F6312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
83VL-F6261-00-00 CONNECTOR, CABLECONNECTOR, CABLE
-
990468-15009-00 CLIPCLIP
-
103VL-F6262-00-00 CAP, CABLE CONNECTORCAP, CABLE CONNECTOR
-
113WG-F6329-00-00 CAP, RUBBERCAP, RUBBER
-
1298517-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
133VL-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
143VL-F6334-02-00 CABLE, STARTER 2CABLE, STARTER 2
-
153WG-F6329-00-00 CAP, RUBBERCAP, RUBBER
-
163VL-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
174SB-F6475-00-00 HOLDERHOLDER
-
1890202-08175-00 WASHER, PLATEWASHER, PLATE
-
1990501-12X00-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2090179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
2190249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
