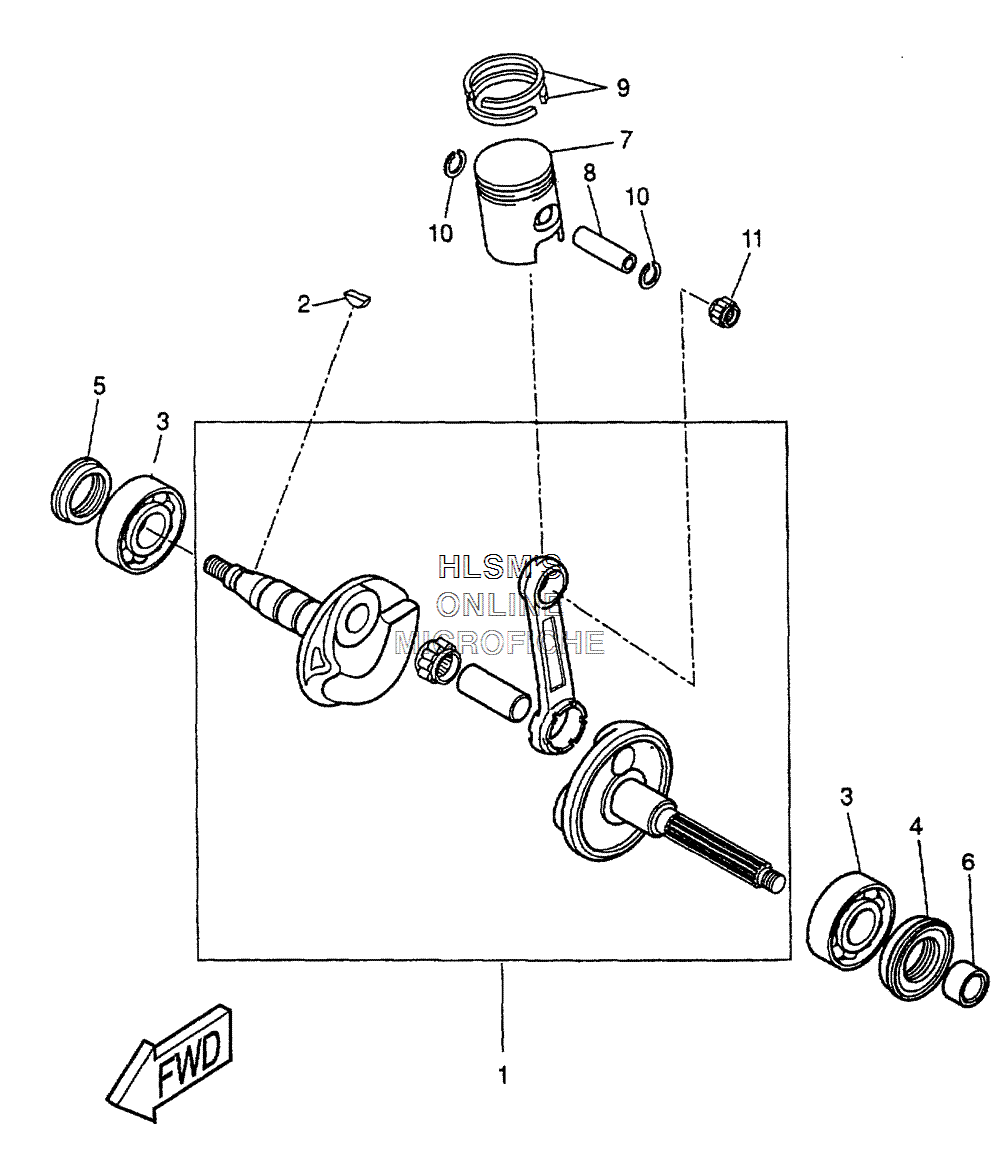

CRANKSHAFT W/ PISTON ASSY. для Yamaha ZUMA II - 2001 года выпуска
-
№АртикулНазвание
-
13VL-E1400-10-00 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
290280-03017-00 KEY, WOODRUFFKEY, WOODRUFF
-
393306-204X2-00 BEARINGBEARING
-
493102-20371-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
593101-20138-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
690387-156U0-00 COLLARCOLLAR
-
73YJ-11631-11-A0 PISTON (STD)PISTON (STD)
-
83VL-E1633-00-00 PIN, PISTONPIN, PISTON
-
93YJ-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1093450-11120-00 CIRCLIP, INNERCIRCLIP, INNER
-
1193310-210M0-00 BEARING, PISTON PINBEARING, PISTON PIN
