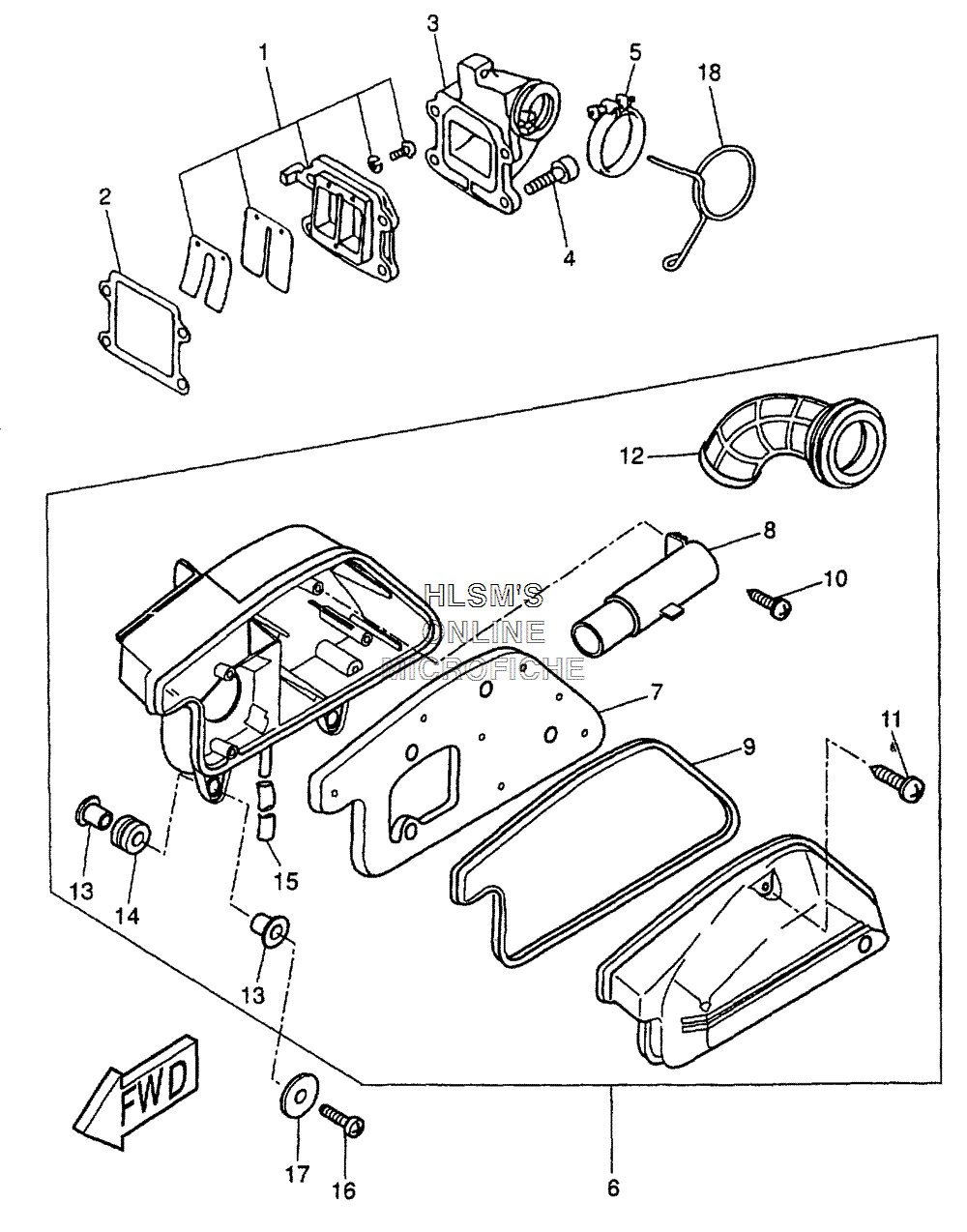

AIR CLEANER ASSY. W/ INTAKE для Yamaha ZUMA II - 2001 года выпуска`
-
№АртикулНазвание
-
13VL-E3610-00-00 REED VALVE ASSY.REED VALVE ASSY.
-
24KN-13621-00-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
33VL-E3555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
41TK-E5481-00-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590450-32081-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
65LU-E4410-00-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
73VL-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
83VL-E4437-00-00 DUCTDUCT
-
93VL-E4452-00-00 SEALSEAL
-
103VL-E4429-00-00 SCREWSCREW
-
113VL-E4565-00-00 SCREWSCREW
-
123VL-E4453-02-00 JOINT, AIR CLEANERJOINT, AIR CLEANER
-
1390387-061V1-00 COLLARCOLLAR
-
1490480-12497-00 GROMMETGROMMET
-
155T8-F1745-01-00 PIPE, OIL TANK BREATHERPIPE, OIL TANK BREATHER
-
1698517-06025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792907-06600-00 WASHER, PLATEWASHER, PLATE
-
1890467-24140-00 CLIP, SCISSORCLIP, SCISSOR
