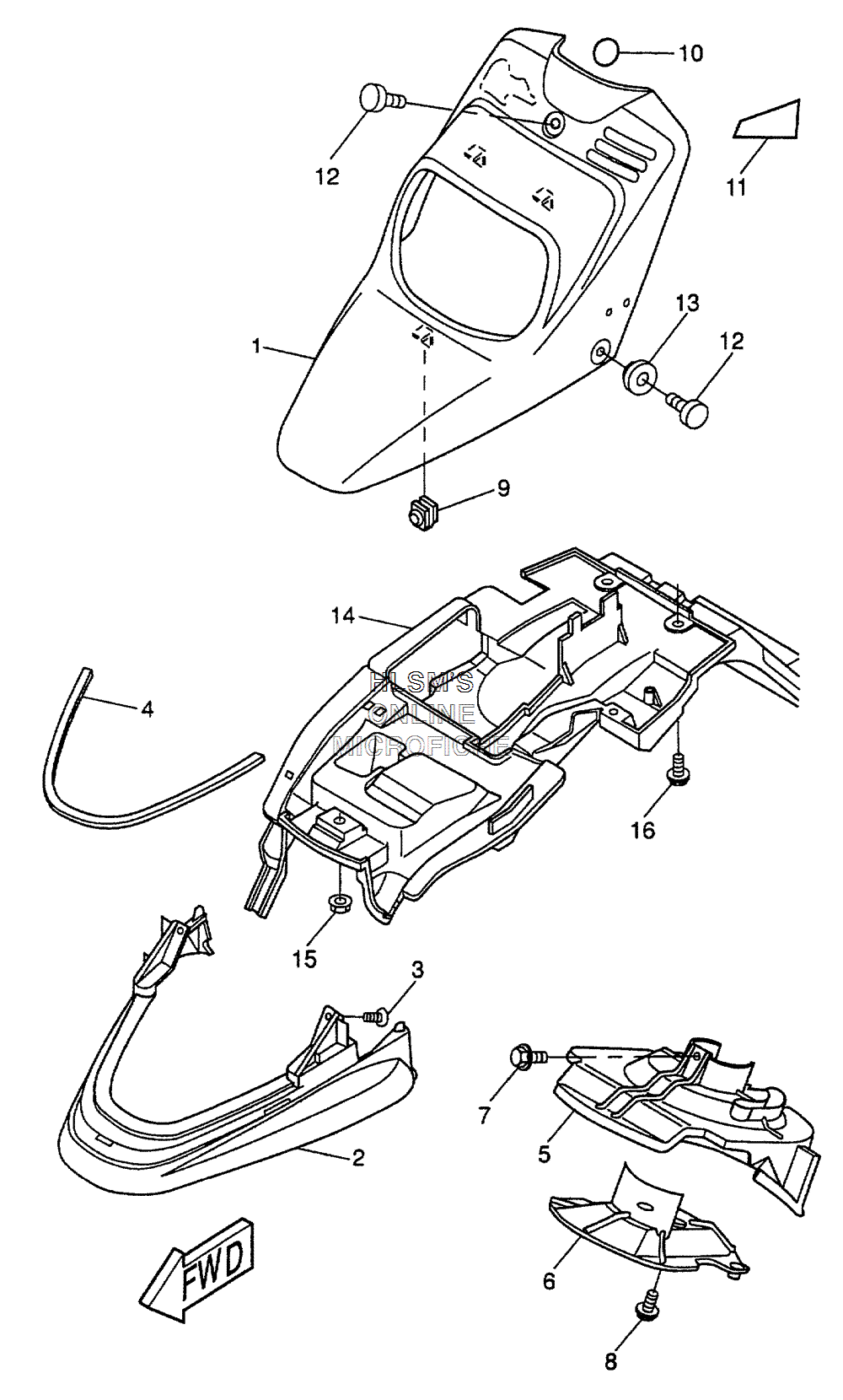

FENDER - FRONT / REAR для Yamaha ZUMA II - 2001 года выпуска`
-
№АртикулНазвание
-
14RW-F1511-10-P2 FENDER (FRONT) (VRC4)FENDER (FRONT) (VRC4)
-
14RW-F1511-00-P8 FENDER, FRONT (DPBMC)FENDER, FRONT (DPBMC)
-
23VL-F1551-10-00 OVER, FENDER (BLACK)OVER, FENDER (BLACK)
-
397707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
390167-05X01-00 SCREW, TAPPINGSCREW, TAPPING
-
43VL-F7482-10-00 MOLD, FOOTREST (BLACK)MOLD, FOOTREST (BLACK)
-
53VL-F1552-01-00 FENDER, INNER (BLACK)FENDER, INNER (BLACK)
-
63VL-F1553-00-00 FENDER, INNER 2 (BLACK)FENDER, INNER 2 (BLACK)
-
795817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
890119-06123-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
935R-26294-00-00 NUT 1NUT 1
-
10X01-F153A-00-00 EMBLEM 2EMBLEM 2
-
115LU-F1569-00-00 GRAPHIC 1 (DPBMC)GRAPHIC 1 (DPBMC)
-
114SW-F1569-20-00 GRAPHIC 1 (VRC4)GRAPHIC 1 (VRC4)
-
1290154-06808-00 SCREW, BINDINGSCREW, BINDING
-
133VL-F1545-00-00 PLATE 3PLATE 3
-
143VL-F1629-01-00 GUARD, MUD (BLACK)GUARD, MUD (BLACK)
-
1590179-06X00-00 NUTNUT
-
1697017-06016-00 BOLTBOLT
