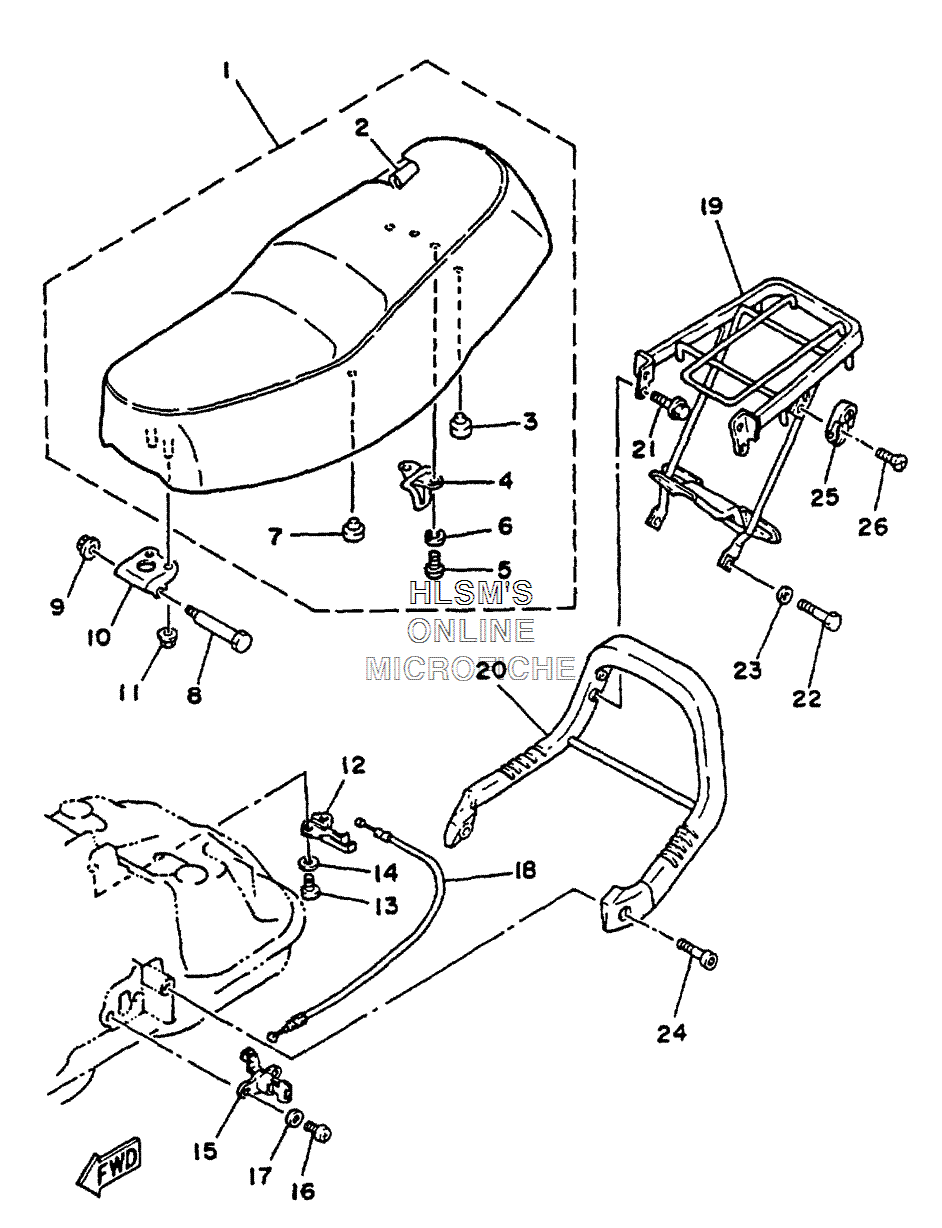

SEAT ASSY. для Yamaha RIVA - 2001 года выпуска`
-
№АртикулНазвание
-
13EK-24730-30-00 DOUBLE SEAT ASSY. (BLACK)DOUBLE SEAT ASSY. (BLACK)
-
250M-24731-30-00 ...COVER, SEAT (BLACK)...COVER, SEAT (BLACK)
-
34G0-24723-00-00 ...DAMPER, SEAT...DAMPER, SEAT
-
450W-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
598580-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
692995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
71L9-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
890109-06504-00 BOLTBOLT
-
995704-06500-00 NUT, FLANGENUT, FLANGE
-
102T4-24726-10-00 HINGE, SEATHINGE, SEAT
-
1195704-06500-00 NUT, FLANGENUT, FLANGE
-
1250W-W247E-00-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
1398502-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492901-06600-00 WASHER, PLATEWASHER, PLATE
-
153CK-W2470-00-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
1698502-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792901-06600-00 WASHER, PLATEWASHER, PLATE
-
1850W-2478E-00-00 WIRE, SEAT HOOKWIRE, SEAT HOOK
-
1950M-24842-00-00 CARRIER, REARCARRIER, REAR
-
2050W-24819-00-00 STAY, REARSTAY, REAR
-
2195811-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2297313-08016-00 BOLT, HEXAGONBOLT, HEXAGON
-
2392990-08600-00 WASHER, PLATEWASHER, PLATE
-
2491316-08050-00 BOLTBOLT
-
2555E-21308-00-00 HELMET HANGER ASSY.HELMET HANGER ASSY.
-
2698701-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
