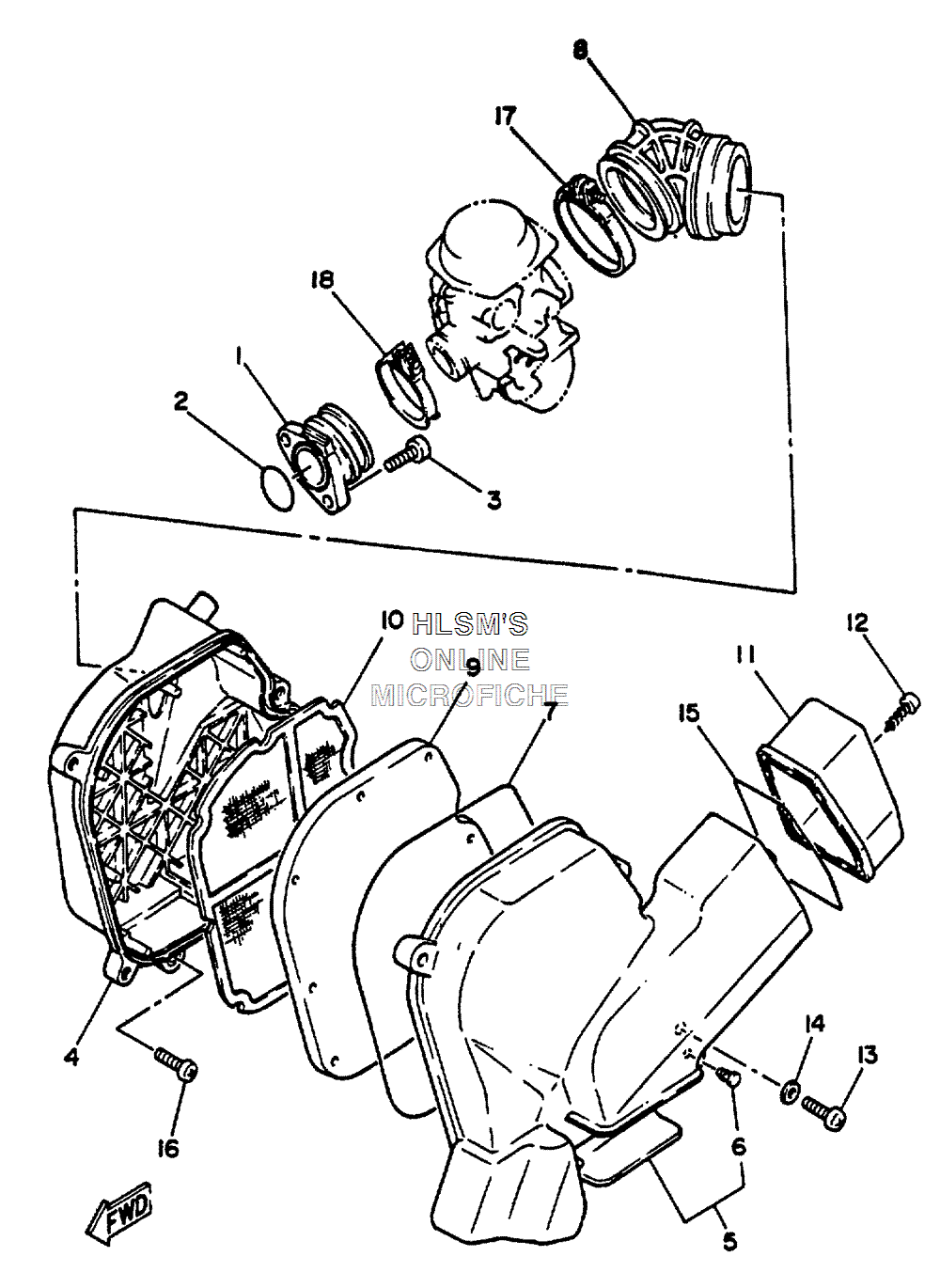

AIR CLEANER ASSY. W/ INTAKE для Yamaha RIVA - 2001 года выпуска`
-
№АртикулНазвание
-
150M-13585-00-00 JOINT, CARBURETORJOINT, CARBURETOR
-
293210-27672-00 O-RINGO-RING
-
391317-06020-00 BOLTBOLT
-
450M-W1441-00-00 AIR CLEANER CASE COMP.AIR CLEANER CASE COMP.
-
550M-W1443-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
690338-05056-00 ...PLUG...PLUG
-
750M-14462-00-00 SEALSEAL
-
850M-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
950M-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1050M-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
1150M-14422-00-00 CAP, CLEANER CASE 2CAP, CLEANER CASE 2
-
1297780-40120-00 SCREW, TAPPINGSCREW, TAPPING
-
1398580-05525-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492990-05600-00 WASHER, PLATEWASHER, PLATE
-
1551Y-14462-00-00 SEALSEAL
-
1698580-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1790460-56105-00 CLAMP, HOSECLAMP, HOSE
-
184BR-13575-00-00 CLAMP, HOSECLAMP, HOSE
