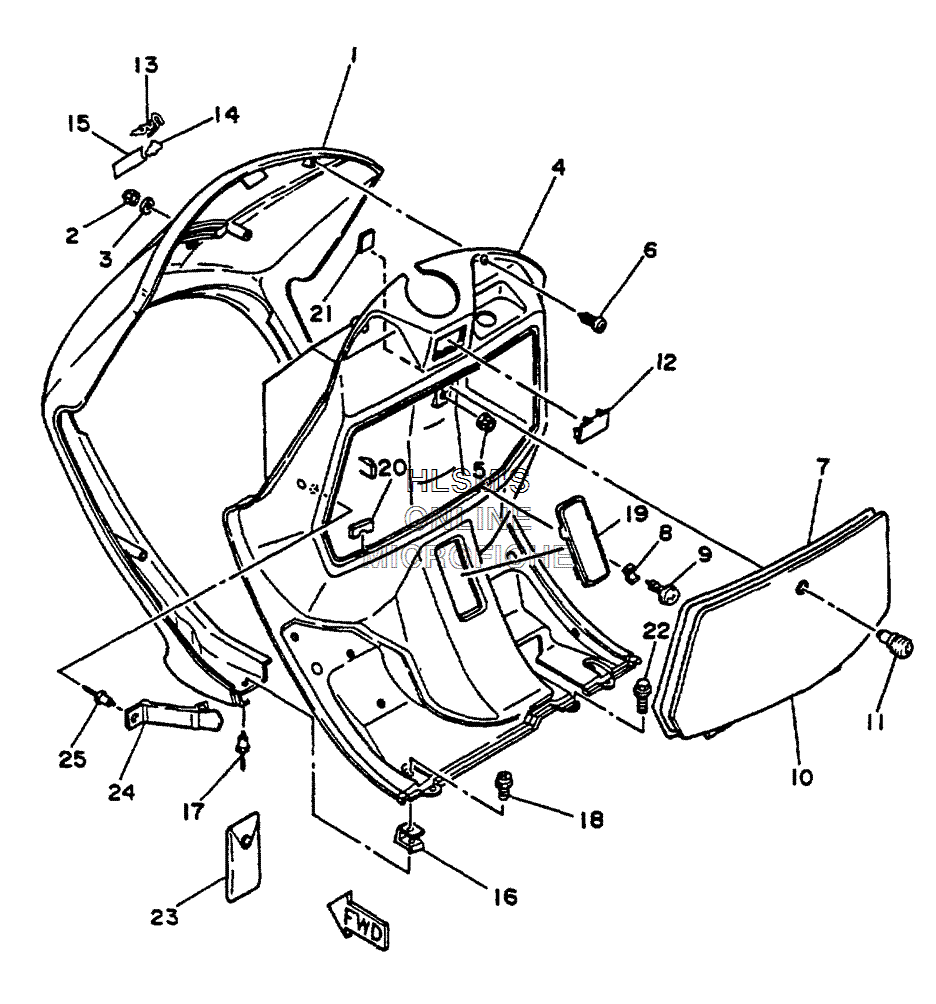

COWLING W/ LEG SHIELD для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150W-28311-00-GE LEG SHIELD 1 (SW)LEG SHIELD 1 (SW)
-
150W-28311-00-P0 LEG SHIELD 1 (VRC1)LEG SHIELD 1 (VRC1)
-
295380-06800-00 NUT (CROWN)NUT (CROWN)
-
390201-060H9-00 WASHER, PLATEWASHER, PLATE
-
450M-28312-10-00 LEG SHIELD 2LEG SHIELD 2
-
595704-06500-00 NUT, FLANGENUT, FLANGE
-
690167-05016-00 SCREW, TAPPINGSCREW, TAPPING
-
750W-28371-01-00 DAMPERDAMPER
-
835R-21796-00-00 HINGEHINGE
-
997706-40512-00 SCREW, TAPPINGSCREW, TAPPING
-
1050W-28313-10-00 LIDLID
-
1126H-21708-00-00 SIDE COVER LOCK ASSY.SIDE COVER LOCK ASSY.
-
1250W-2835U-10-00 PANEL 1PANEL 1
-
1350M-28328-00-00 EMBLEM (RIVA)EMBLEM (RIVA)
-
1450M-2839H-00-00 EMBLEM 1EMBLEM 1
-
152EK-2153A-20-00 EMBLEMEMBLEM
-
1650W-28321-00-00 STAY, LEG SHIELD LSTAY, LEG SHIELD L
-
1790267-40073-00 RIVET, BLINDRIVET, BLIND
-
1890159-06013-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1914T-28349-40-00 CAP (BLACK)CAP (BLACK)
-
2050M-2834J-00-00 CAP 2CAP 2
-
2150M-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
2290119-06018-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2350M-28100-00-00 TOOL KITTOOL KIT
-
2433M-21376-00-00 BAND, TOOLBAND, TOOL
-
2590267-40054-00 RIVET, BLINDRIVET, BLIND
