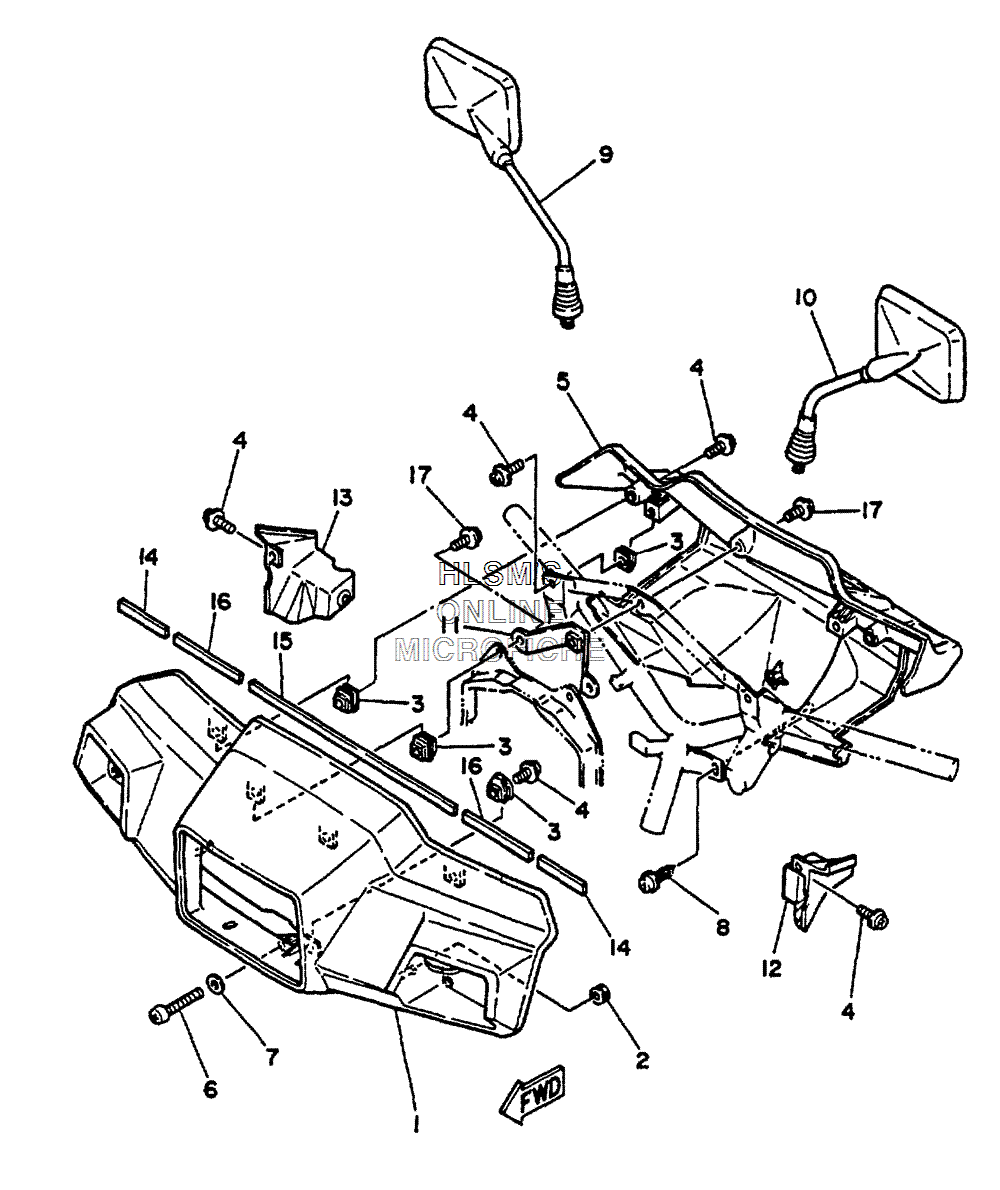

HANDLEBAR - COVER W/ MIRRORS для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150W-26143-00-GE HANDLEBAR UPPER 1 (SW)HANDLEBAR UPPER 1 (SW)
-
150W-26143-00-P0 COVER, HANDLEBAR UPPER 1 (VRC1)COVER, HANDLEBAR UPPER 1 (VRC1)
-
290480-13018-00 GROMMETGROMMET
-
335R-26294-00-00 NUT 1NUT 1
-
490159-05089-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
550W-26145-10-00 COVER, HANDLEBAR UPPER 2COVER, HANDLEBAR UPPER 2
-
698580-05540-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792990-05600-00 WASHER, PLATEWASHER, PLATE
-
890167-05015-00 SCREW, TAPPINGSCREW, TAPPING
-
950M-26290-00-00 MIRROR ASSY. (RIGHT)MIRROR ASSY. (RIGHT)
-
1050M-26290-10-00 MIRROR ASSY. (LEFT)MIRROR ASSY. (LEFT)
-
1150W-26223-00-00 BRACKET, HANDLE 1BRACKET, HANDLE 1
-
1250W-26372-00-00 COVER, HANDLE LEVERCOVER, HANDLE LEVER
-
1350W-2637A-00-00 COVER, HANDLE LEVERCOVER, HANDLE LEVER
-
143CV-28378-00-00 PADPAD
-
153FA-21639-00-00 DAMPERDAMPER
-
163FA-21639-00-00 DAMPERDAMPER
-
1790159-05089-00 SCREW, WITH WASHERSCREW, WITH WASHER
