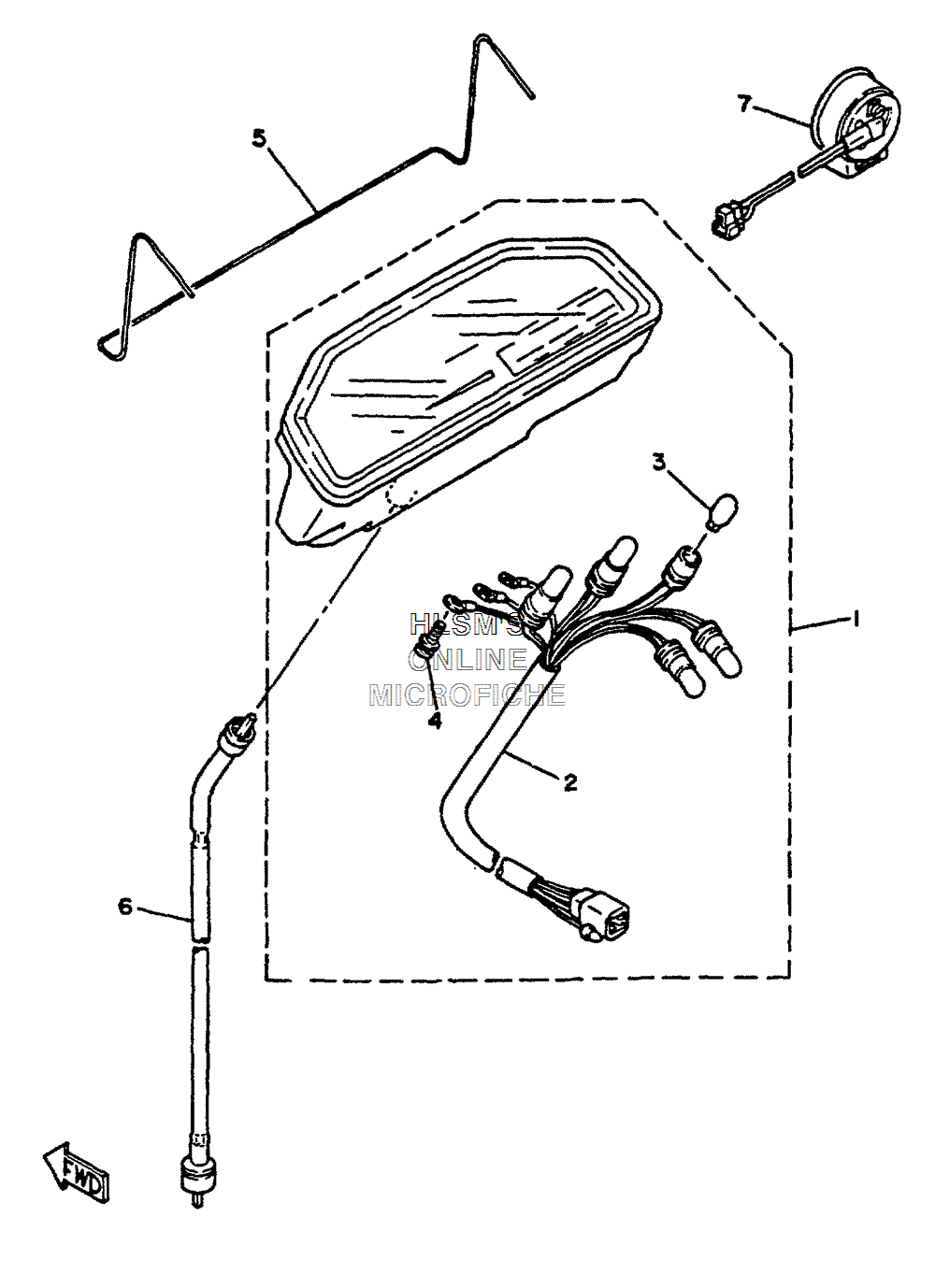

INSTRUMENT PANEL для Yamaha RIVA - 2001 года выпуска`
-
№АртикулНазвание
-
150M-83510-A0-00 SPEEDOMETER AASY.SPEEDOMETER AASY.
-
250M-83509-00-00 ...SOCKET CORD ASSY....SOCKET CORD ASSY.
-
34G1-84744-00-XX ...BULB (12V-3.4W T10)...BULB (12V-3.4W T10)
-
490159-03102-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
550W-83515-00-00 SPRING, METERSPRING, METER
-
650W-83550-01-00 SPEEDOMETER CABLE ASSY.SPEEDOMETER CABLE ASSY.
-
735R-83390-20-00 AUDIO PILOT ASSY.AUDIO PILOT ASSY.
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- • INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY. W/ CAM CHAIN ASSY.
- WHEEL - FRONT
- WHEEL - REAR
