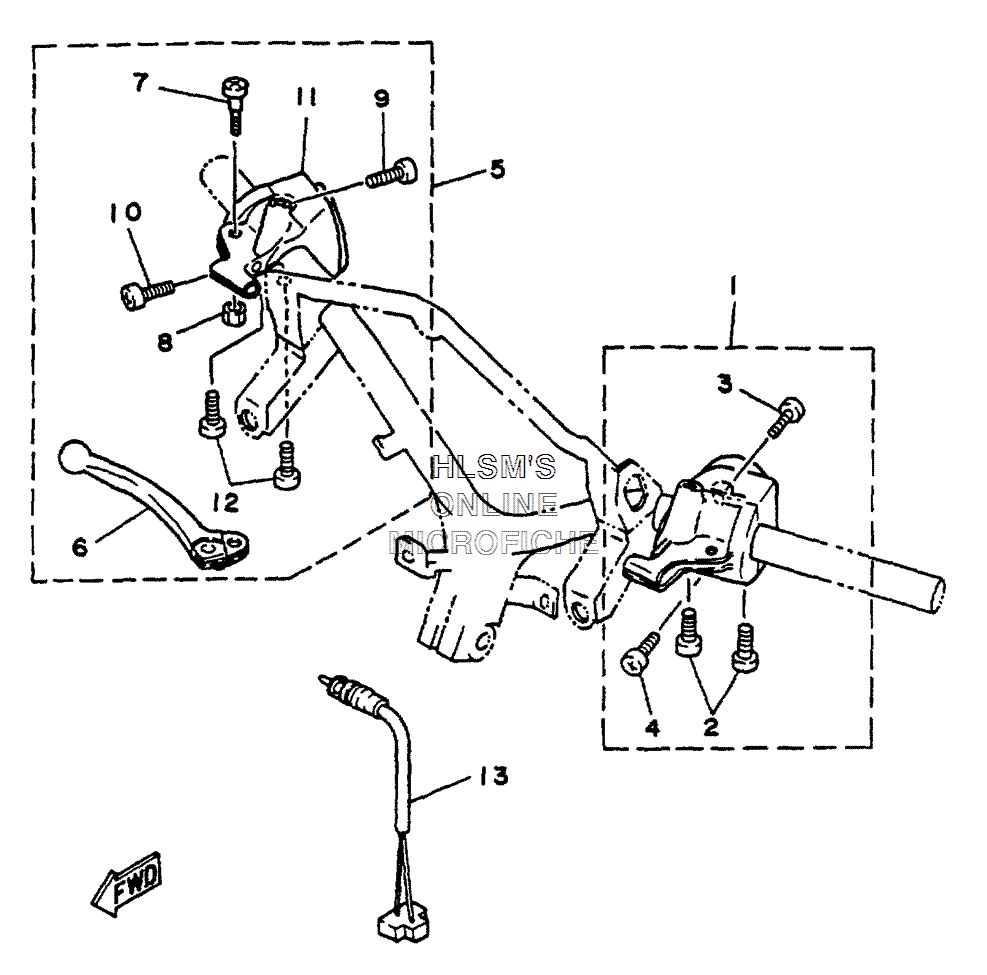

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha RIVA - 2001 года выпуска
-
№АртикулНазвание
-
150M-83973-30-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
298901-04010-00 ...SCREW, BIND...SCREW, BIND
-
398506-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
498507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
550M-W8292-31-00 LEVER HOLDER ASSY. (RIGHT)LEVER HOLDER ASSY. (RIGHT)
-
656J-83922-00-00 ...LEVER R...LEVER R
-
790149-05121-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
895601-05100-00 ...NUT, U...NUT, U
-
998506-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1098507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1150M-83975-30-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1298901-04010-00 ...SCREW, BIND...SCREW, BIND
-
1386S-83980-00-00 FRONT STOP SWITCH ASSY.FRONT STOP SWITCH ASSY.
