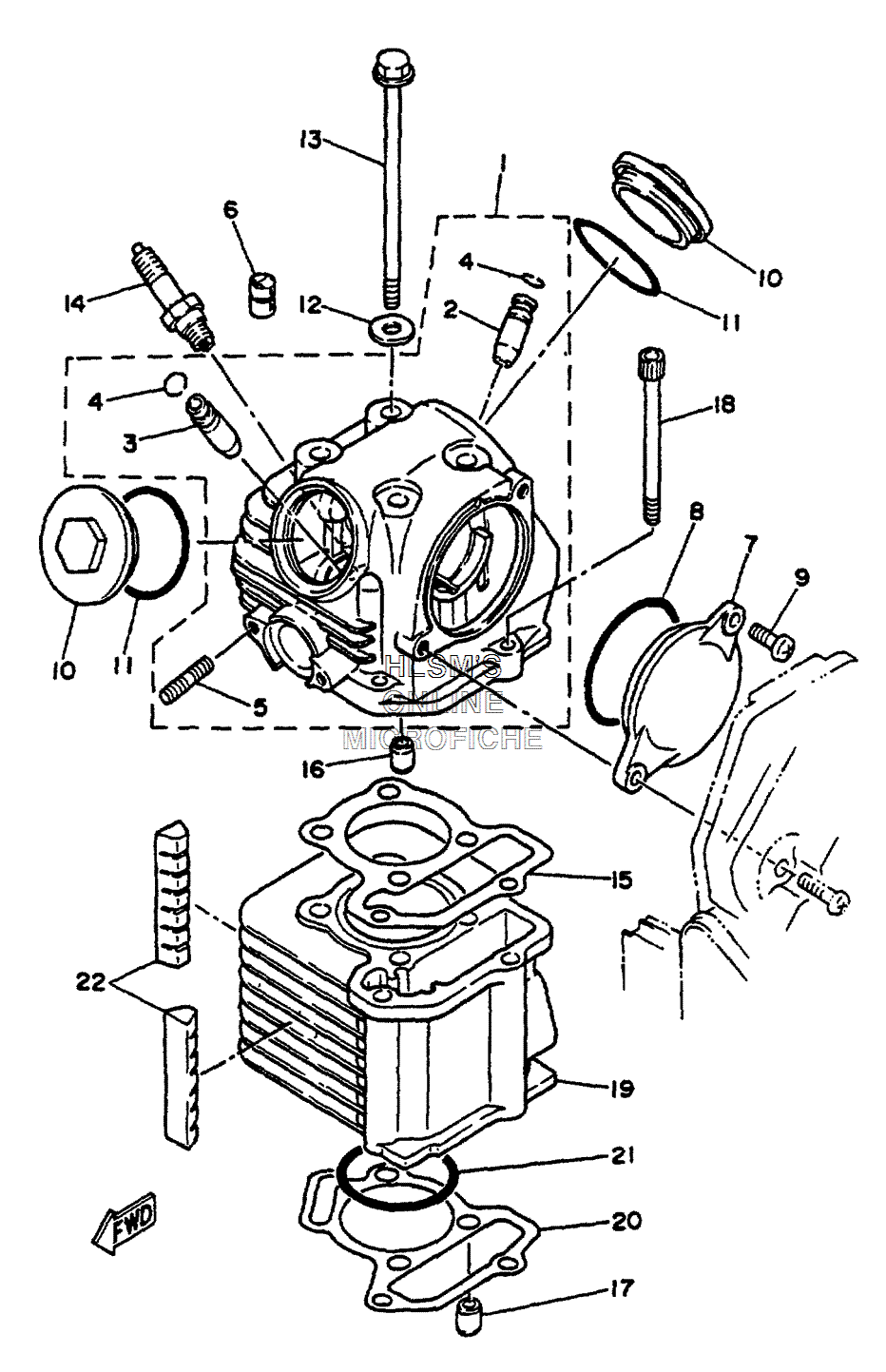

CYLINDER W/ HEAD ASSY. для Yamaha RIVA - 2001 года выпуска`
-
№АртикулНазвание
-
150M-11110-00-00 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
222F-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
322F-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
493440-10109-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
550M-14651-00-00 ...BOLT...BOLT
-
615A-11162-00-00 ABSORBER 2ABSORBER 2
-
750M-11185-01-00 COVER, CYLINDER HEAD SIDE 1COVER, CYLINDER HEAD SIDE 1
-
893210-63556-00 O-RINGO-RING
-
998580-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1022F-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
1193210-44704-00 O-RINGO-RING
-
1290201-080L7-00 WASHER, PLATEWASHER, PLATE
-
1390105-08324-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
14NGK-C6HSA-00-00 PLUG, SPARK (NGK C6HSA)PLUG, SPARK (NGK C6HSA)
-
1550M-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1699510-10114-00 PIN, DOWELPIN, DOWEL
-
1799510-10114-00 PIN, DOWELPIN, DOWEL
-
1891311-06110-00 BOLTBOLT
-
1950M-11310-00-00 CYLINDERCYLINDER
-
2050M-11351-10-00 GASKET, CYLINDERGASKET, CYLINDER
-
2193210-53679-00 O-RINGO-RING
-
2250M-11162-00-00 ABSORBER 2ABSORBER 2
