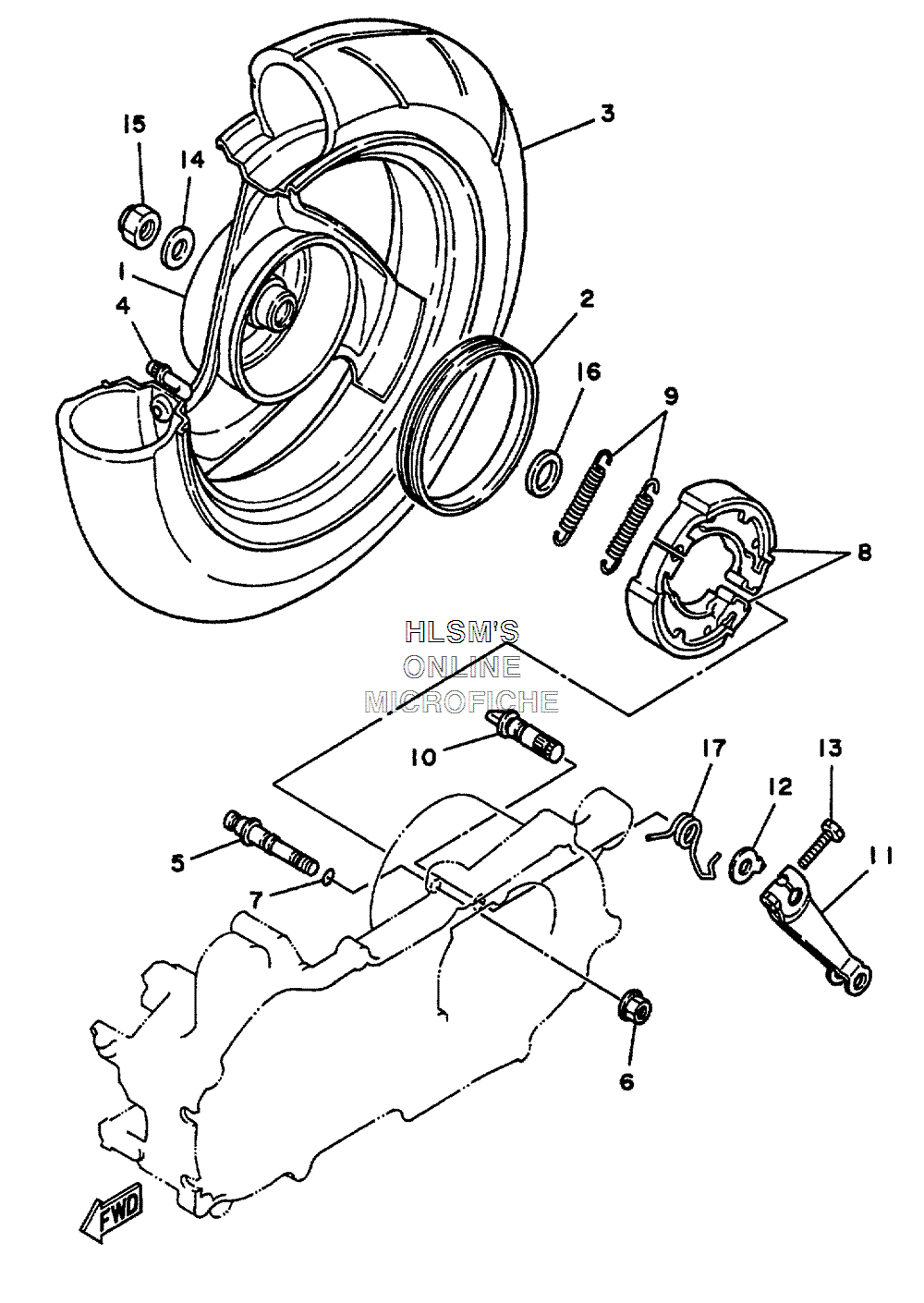

WHEEL - REAR для Yamaha RIVA JOG - 2001 года выпуска`
-
№АртикулНазвание
-
13KJ-25390-00-P3 REAR WHEEL COMP. (PURPLE)REAR WHEEL COMP. (PURPLE)
-
23KJ-25336-00-00 RING 2RING 2
-
394108-1004V-00 TIRE (80/90-10 34J MB38) INQUETIRE (80/90-10 34J MB38) INQUE
-
493900-00036-00 VALVE, RIMVALVE, RIM
-
53KJ-25326-00-00 PIN, PIVOTPIN, PIVOT
-
695707-08500-00 NUT, FLANGENUT, FLANGE
-
793210-07540-00 O-RINGO-RING
-
84BX-W2536-00-00 BRAKE SHOE COMP.BRAKE SHOE COMP.
-
990506-15260-00 SPRING, TENSIONSPRING, TENSION
-
103KJ-25351-01-00 CAMSHAFTCAMSHAFT
-
113KJ-25355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
1252H-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
1390101-06278-00 BOLTBOLT
-
1490201-142M6-00 WASHER, PLATEWASHER, PLATE
-
1590185-14150-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1690201-17255-00 WASHER, PLATEWASHER, PLATE
-
173KJ-25357-00-00 SPRING, LEVER RETURNSPRING, LEVER RETURN
