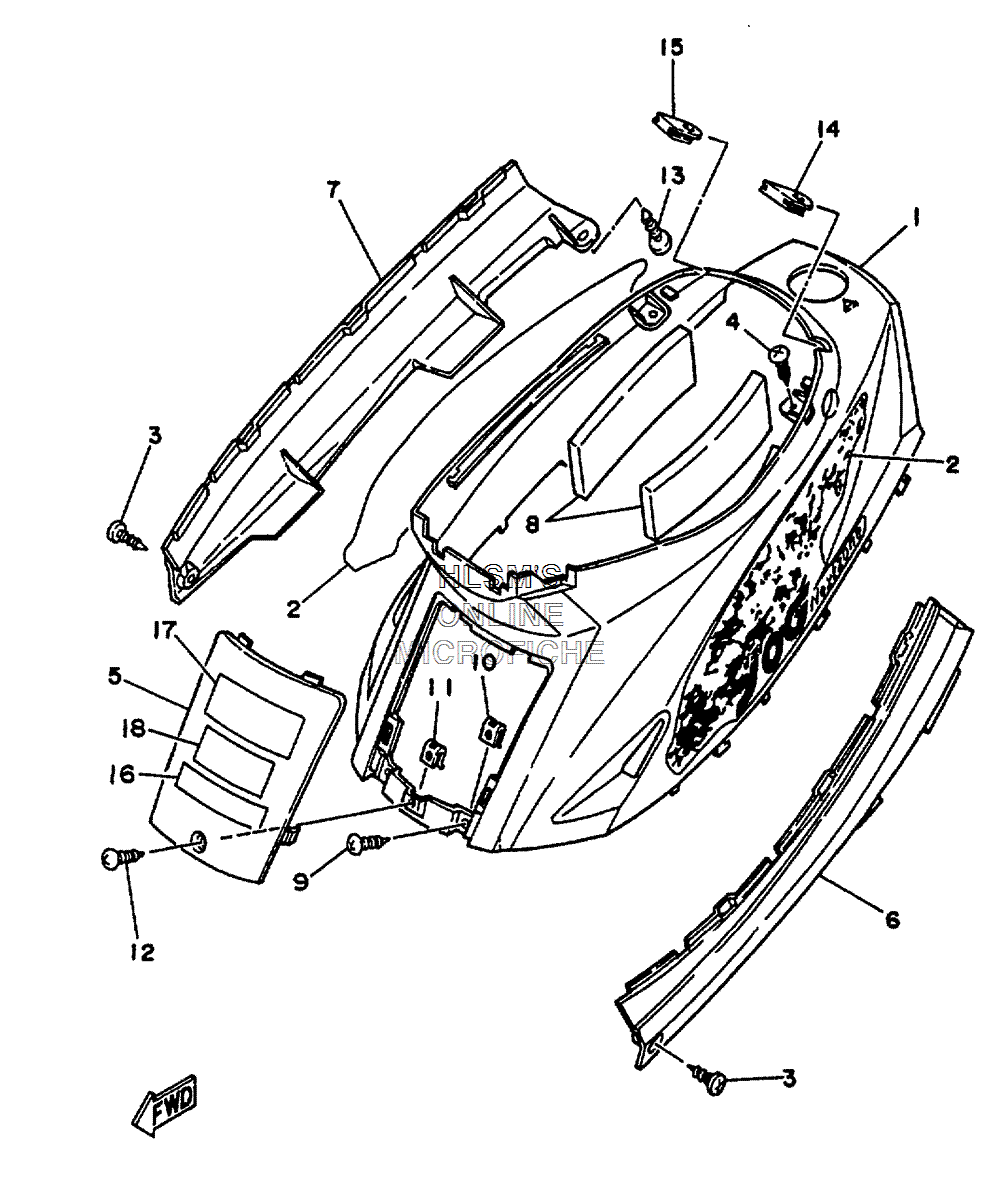

SIDE COVER для Yamaha RIVA JOG - 2001 года выпуска`
-
№АртикулНазвание
-
13KJ-21711-00-4B COVER, SIDE 1 (BLACK)COVER, SIDE 1 (BLACK)
-
13KJ-21711-00-GE COVER, SIDE 1 (SILKY WHITE)COVER, SIDE 1 (SILKY WHITE)
-
24FB-2173G-10-00 EMBLEM SET 1 (BLACK)EMBLEM SET 1 (BLACK)
-
24MN-2173G-00-00 EMBLEM SET 1 (SILKY WHITE)EMBLEM SET 1 (SILKY WHITE)
-
390149-06184-00 SCREW, BINDINGSCREW, BINDING
-
497707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
53KJ-21721-00-4B COVER, SIDE 2COVER, SIDE 2
-
63KJ-2171L-30-00 MOLE, SIDE COVER 1MOLE, SIDE COVER 1
-
73KJ-2171M-30-00 MOLE, SIDE COVER 2MOLE, SIDE COVER 2
-
83KJ-21511-00-4B FENDER, FRONTFENDER, FRONT
-
997707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1090183-05042-00 NUT, SPRINGNUT, SPRING
-
1190183-05042-00 NUT, SPRINGNUT, SPRING
-
1290167-05055-00 SCREW, TAPPINGSCREW, TAPPING
-
1397707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
143KJ-24845-00-00 COVER 1COVER 1
-
153KJ-24846-00-00 COVER 2COVER 2
-
164FB-2179X-00-00 PLATE, EPA 50PLATE, EPA 50
-
173SL-2118K-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
183SA-21668-01-00 LABEL, TIRE PRESSURELABEL, TIRE PRESSURE
