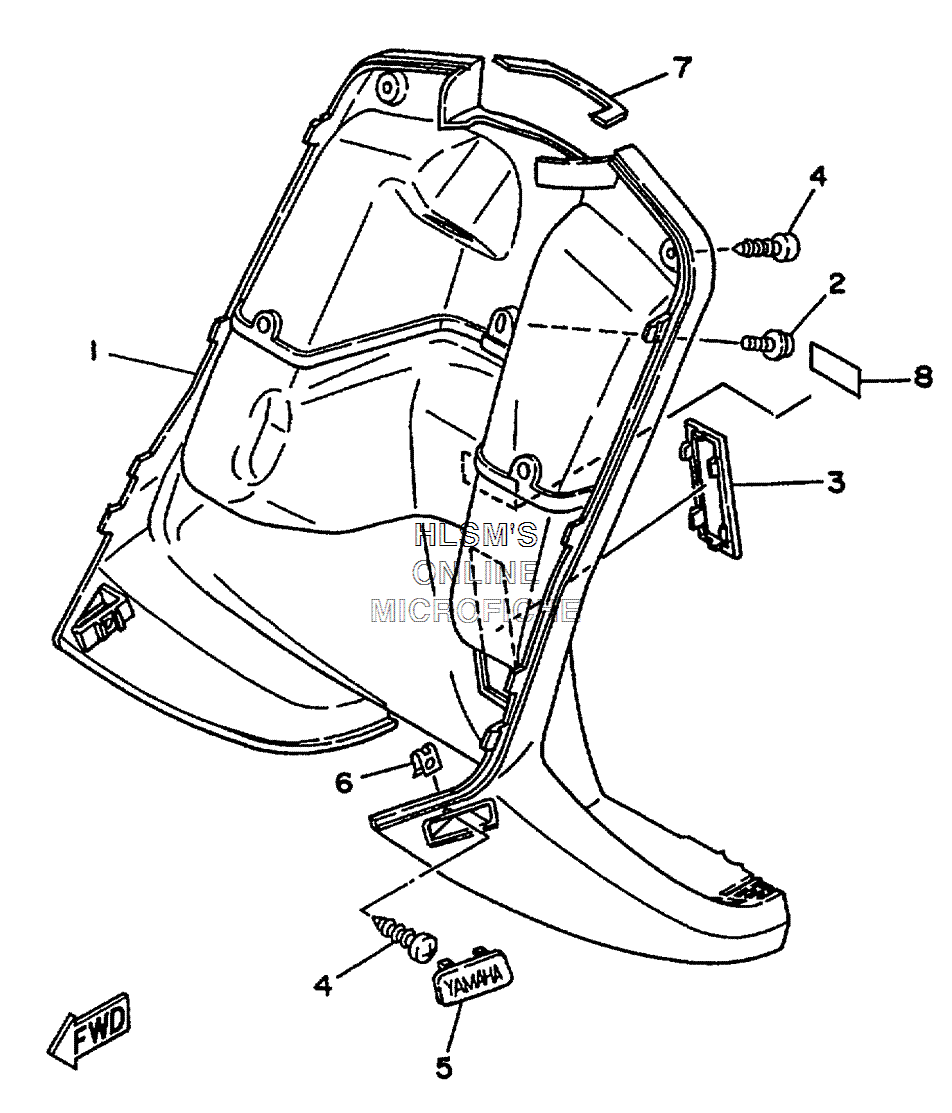

COWLING W/ LEG SHIELD для Yamaha RIVA JOG - 2001 года выпуска`
-
№АртикулНазвание
-
13SA-28300-30-00 LEG SHIELD ASSY. (PURPLE)LEG SHIELD ASSY. (PURPLE)
-
290159-06182-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
320H-28349-E0-00 CAP (PURPLE)CAP (PURPLE)
-
497707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
53FC-27475-30-00 CAP 1 (PURPLE)CAP 1 (PURPLE)
-
690183-05042-00 NUT, SPRINGNUT, SPRING
-
73SA-28371-00-00 DAMPERDAMPER
-
83SA-24877-00-00 LABEL, CAUTIONLABEL, CAUTION
