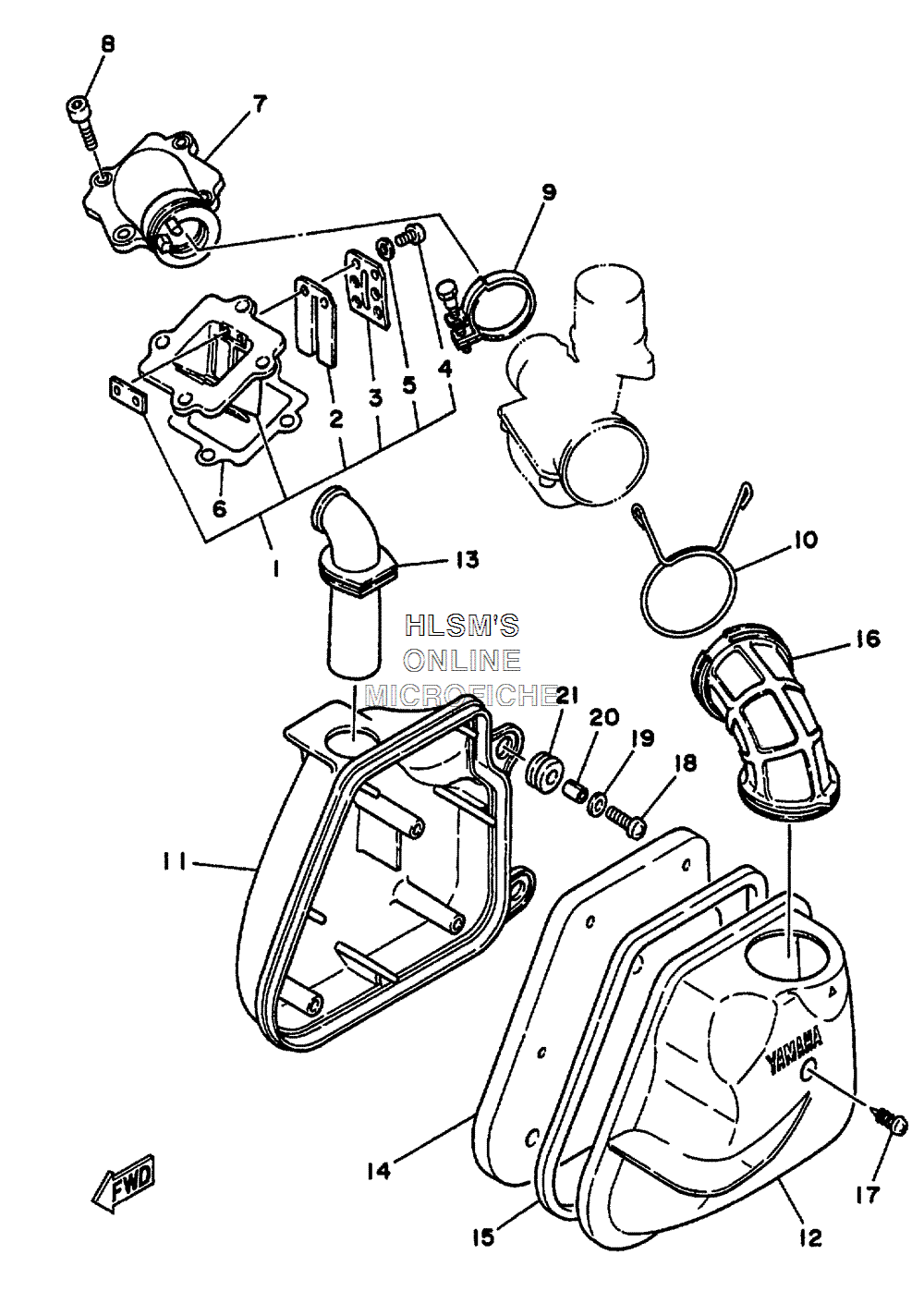

AIR CLEANER ASSY. W/ INTAKE для Yamaha RIVA JOG - 2001 года выпуска`
-
№АртикулНазвание
-
13KJ-13610-00-00 REED VALVE ASSY.REED VALVE ASSY.
-
23KJ-13613-00-00 ...REED, VALVE...REED, VALVE
-
33KJ-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592907-03600-00 ...WASHER...WASHER
-
64FB-13621-00-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
73KJ-13555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
891317-06020-00 BOLTBOLT
-
990450-32081-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
1090467-24140-00 CLIP, SCISSORCLIP, SCISSOR
-
113KJ-14411-30-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
123KJ-14412-30-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
133KJ-14437-00-00 DUCTDUCT
-
144CY-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
153KJ-14452-30-00 SEALSEAL
-
164JC-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1797707-50525-00 SCREW, TAPPINGSCREW, TAPPING
-
1898517-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992907-06600-00 WASHER, PLATEWASHER, PLATE
-
2090387-067V1-00 COLLARCOLLAR
-
2190480-12497-00 GROMMETGROMMET
