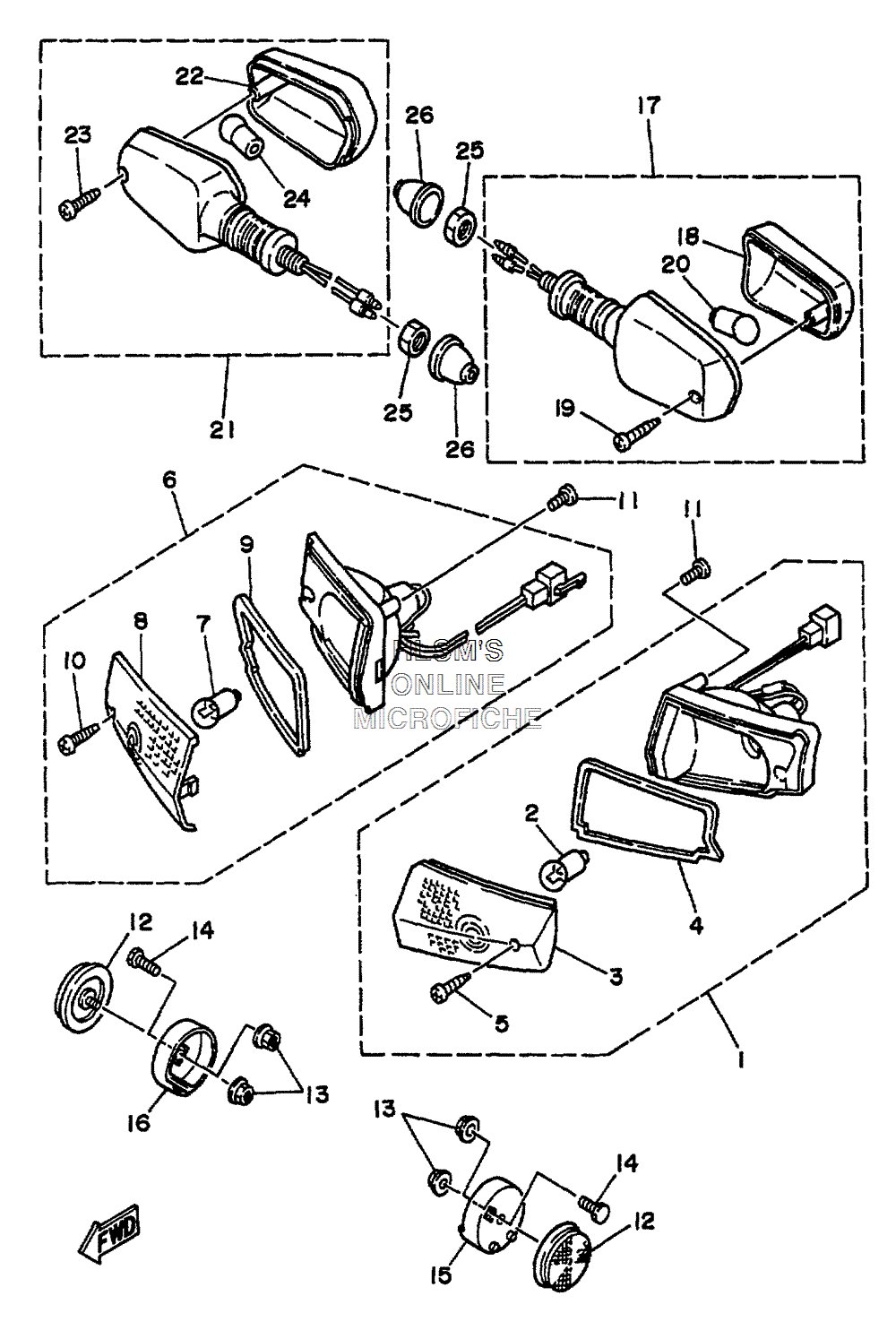

FLASHER LIGHT для Yamaha RIVA JOG - 2001 года выпуска`
-
№АртикулНазвание
-
12EK-83310-00-00 FRONT FLASHER LIGHT ASSY. 1FRONT FLASHER LIGHT ASSY. 1
-
22NS-83331-00-00 ...BULB...BULB
-
32EK-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
42EK-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
597707-40116-00 ...SCREW, TAPPING...SCREW, TAPPING
-
62EK-83320-00-00 FRONT FLASHER LIGHT ASSY. 2FRONT FLASHER LIGHT ASSY. 2
-
73NS-83331-00-00 ...BULB (12V 10W)...BULB (12V 10W)
-
82EK-83322-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
92EK-83313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
1097707-40116-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1197707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
122EK-85111-00-00 REFLECTOR, FRONT 1REFLECTOR, FRONT 1
-
1395707-05500-00 NUT, FLANGENUT, FLANGE
-
1497007-05016-00 BOLTBOLT
-
153SA-85127-00-00 BASE, REFLECTORBASE, REFLECTOR
-
163SA-85137-00-00 BASE, REFLECTOR REARBASE, REFLECTOR REAR
-
173SA-83330-01-00 REAR FLASHER LIGHT ASSY. 1REAR FLASHER LIGHT ASSY. 1
-
182EK-83332-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1997707-40620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
203TX-83311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
213SA-833340-01-00 FLASHER LIGHT ASSY. 2FLASHER LIGHT ASSY. 2
-
222EK-83342-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
2397707-40620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
243TX-83311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
2595317-12600-00 NUTNUT
-
2610V-83365-00-00 CAPCAP
