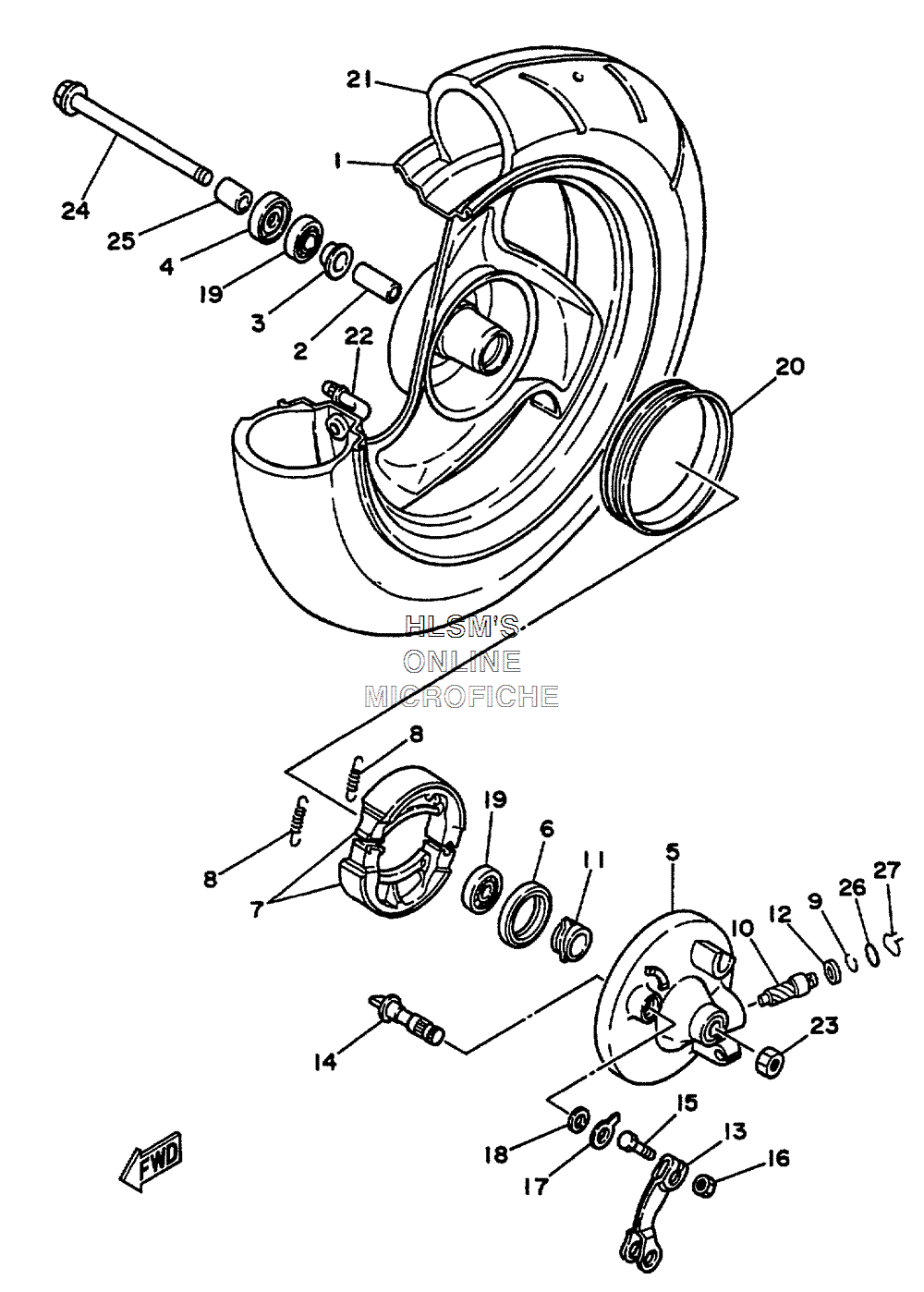

WHEEL - FRONT для Yamaha RIVA JOG - 2001 года выпуска`
-
№АртикулНазвание
-
13YJ-25180-00-P2 FRONT WHEEL COMP. (PURPLE)FRONT WHEEL COMP. (PURPLE)
-
290560-10289-00 SPACERSPACER
-
325K-25116-00-00 FLANGE, SPACER 2FLANGE, SPACER 2
-
493106-17015-00 OIL SEAL, DD-TYPEOIL SEAL, DD-TYPE
-
52GM-25121-00-P8 PLATE, BRAKE SHOE (PURPLE)PLATE, BRAKE SHOE (PURPLE)
-
693109-34057-00 OIL SEAL, SDO-TYPEOIL SEAL, SDO-TYPE
-
74JP-W2535-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
890506-14081-00 SPRING, TENSIONSPRING, TENSION
-
92T4-25137-00-00 RING, STOPRING, STOP
-
102E9-25138-00-00 GEAR, METERGEAR, METER
-
112E9-25135-00-00 GEAR, DRIVE (14T)GEAR, DRIVE (14T)
-
1290201-064L6-00 WASHER, PLATEWASHER, PLATE
-
132T4-25155-00-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
143KJ-25151-00-00 CAMSHAFTCAMSHAFT
-
1597027-05020-00 BOLTBOLT
-
1695307-05600-00 NUTNUT
-
173L8-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
1825K-25159-00-00 SEAL, CAMSHAFTSEAL, CAMSHAFT
-
1993306-20005-00 BEARING (B6200)BEARING (B6200)
-
203KJ-25185-00-00 RING 1RING 1
-
2194108-1004V-00 TIRE (80/90-10 34J MB38) INQUETIRE (80/90-10 34J MB38) INQUE
-
2293900-00036-00 VALVE, RIMVALVE, RIM
-
2390185-10154-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
243KJ-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
2590560-10360-00 SPACERSPACER
-
2693210-10096-00 O-RINGO-RING
-
272E9-25137-01-00 RING, STOPRING, STOP
