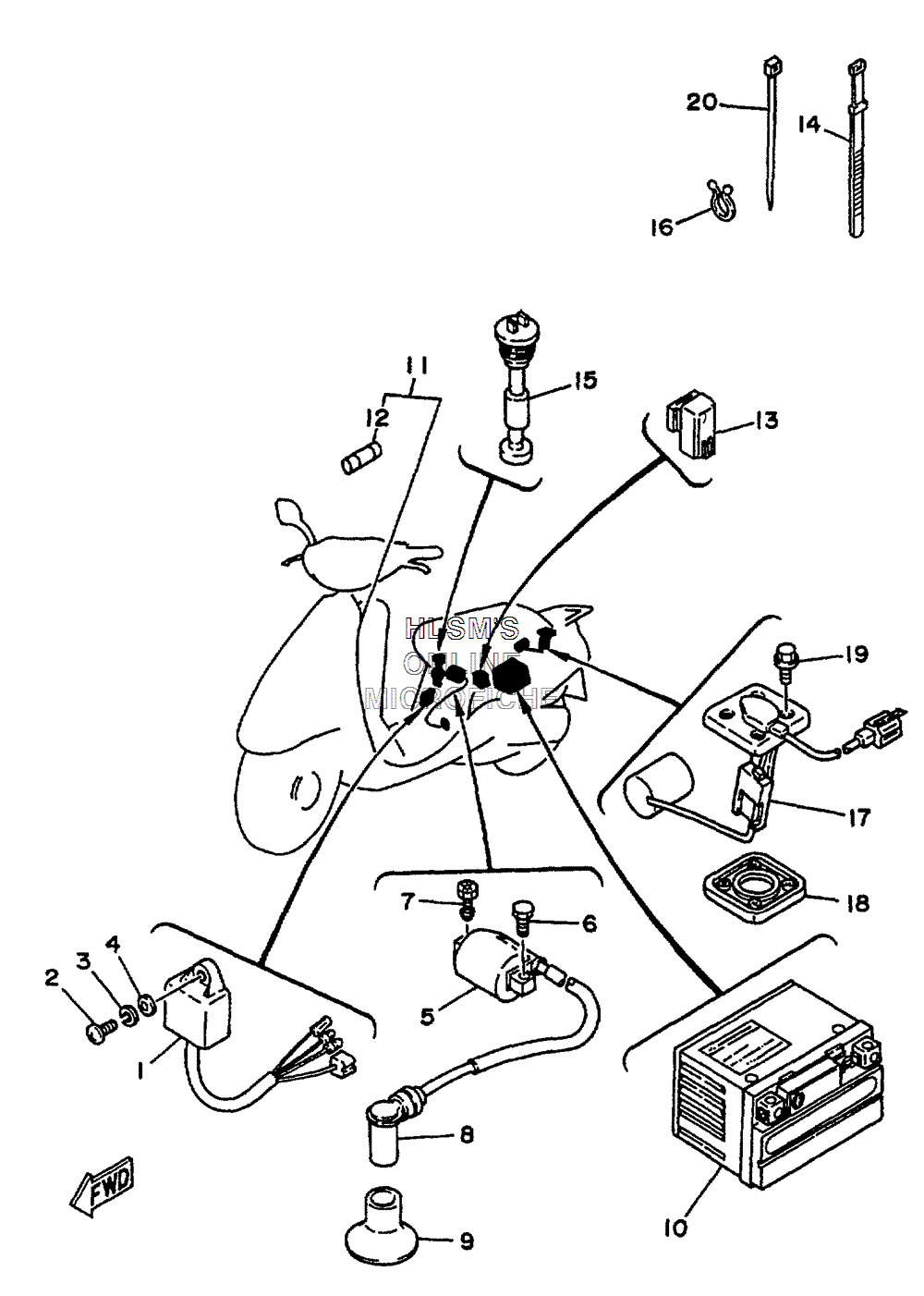

ELECTRICAL 2 для Yamaha RIVA JOG - 2001 года выпуска`
-
№АртикулНазвание
-
13KJ-85540-10-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
298517-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
53KJ-82310-01-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
697017-06010-00 BOLTBOLT
-
790153-06034-00 SCREW, HEXAGONSCREW, HEXAGON
-
856J-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
93KJ-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
10BTY-YT4LB-S0-00 BATTERY ASSY. (GT4L-BS GS-T)BATTERY ASSY. (GT4L-BS GS-T)
-
113SA-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
1227V-82151-00-00 ...FUSE...FUSE
-
1329U-81950-93-00 RELAY ASSY.RELAY ASSY.
-
14437-83936-11-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
1553L-85720-00-00 OIL LEVEL GAUGE ASSY.OIL LEVEL GAUGE ASSY.
-
1690465-18147-00 CLAMPCLAMP
-
173KJ-08575-20-00 SENDER UNIT ASSY. FUEL METERSENDER UNIT ASSY. FUEL METER
-
185G3-85753-00-00 GASKET, SENDER UNITGASKET, SENDER UNIT
-
1990119-05070-00 BOLT, WITH WASHERBOLT, WITH WASHER
