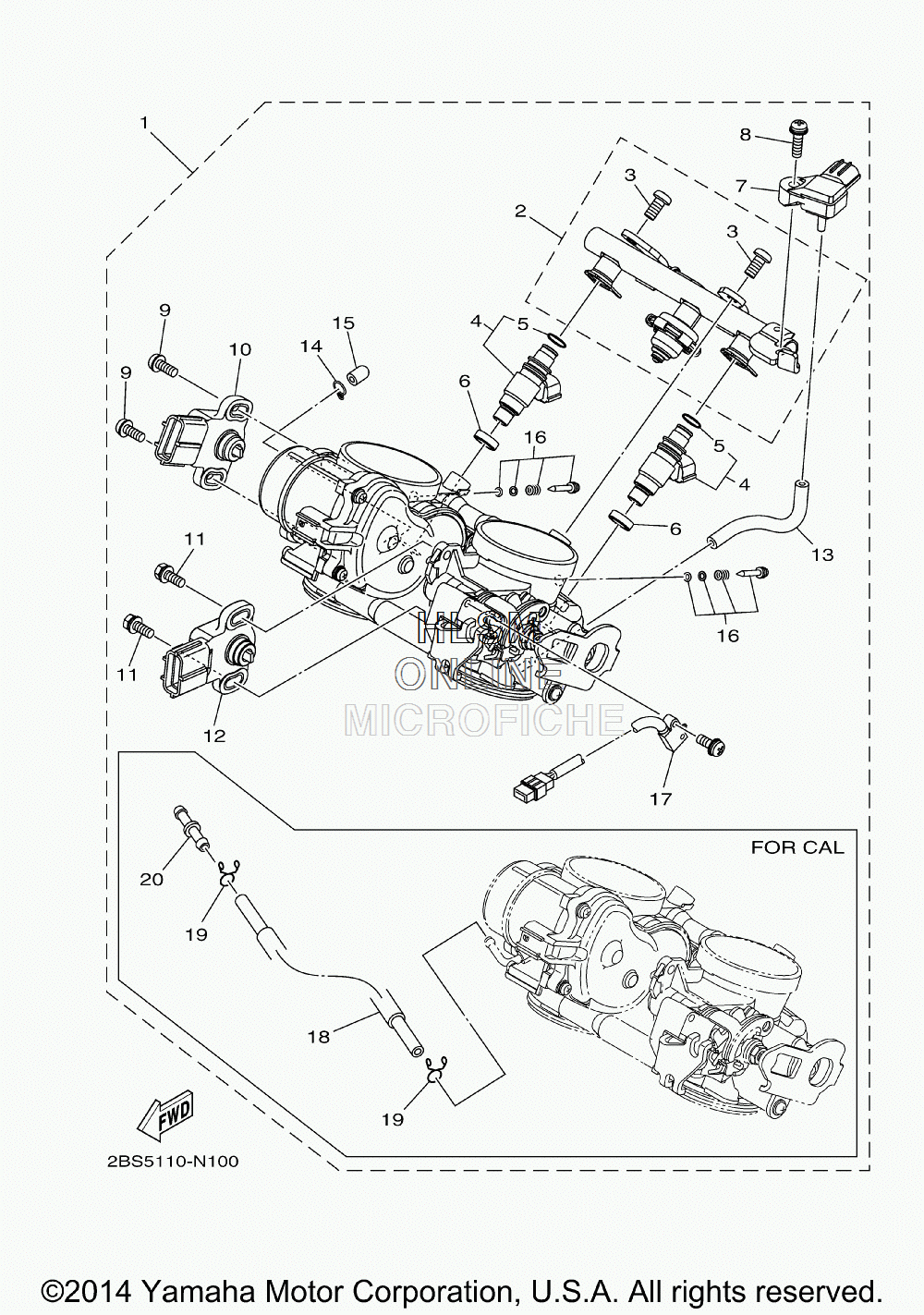

THROTTLE BODY ASSY. для Yamaha SUPER TENERE - 2015 года выпуска`
-
№АртикулНазвание
-
12BS-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
12BS-13750-20-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
223P-1393A-00-00 ...PIPE, INLET...PIPE, INLET
-
398502-06012-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
423P-13761-00-00 ...INJECTOR...INJECTOR
-
55PS-14147-00-00 ......O-RING......O-RING
-
68FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
72C0-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
82C0-14216-00-00 ...SCREW...SCREW
-
98CC-14216-10-00 ...SCREW...SCREW
-
1013S-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
115FL-14216-00-00 ...SCREW...SCREW
-
121MC-85884-00-00 ...ACCELERATOR SENSOR ASSY...ACCELERATOR SENSOR ASSY
-
1363P-13532-00-00 ...HOSE, VACUUM SENSING 3...HOSE, VACUUM SENSING 3
-
148A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
15895-14169-00-00 ...CAP...CAP
-
162C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
172BS-81860-00-00 ...SWITCH ASSY...SWITCH ASSY
-
1823P-14465-00-00 ...PIPE (CALIF ONLY)...PIPE (CALIF ONLY)
-
1990467-09006-00 ...CLIP (CALIF ONLY)...CLIP (CALIF ONLY)
-
204XY-14568-00-00 ...JOINT (CALIF ONLY)...JOINT (CALIF ONLY)
