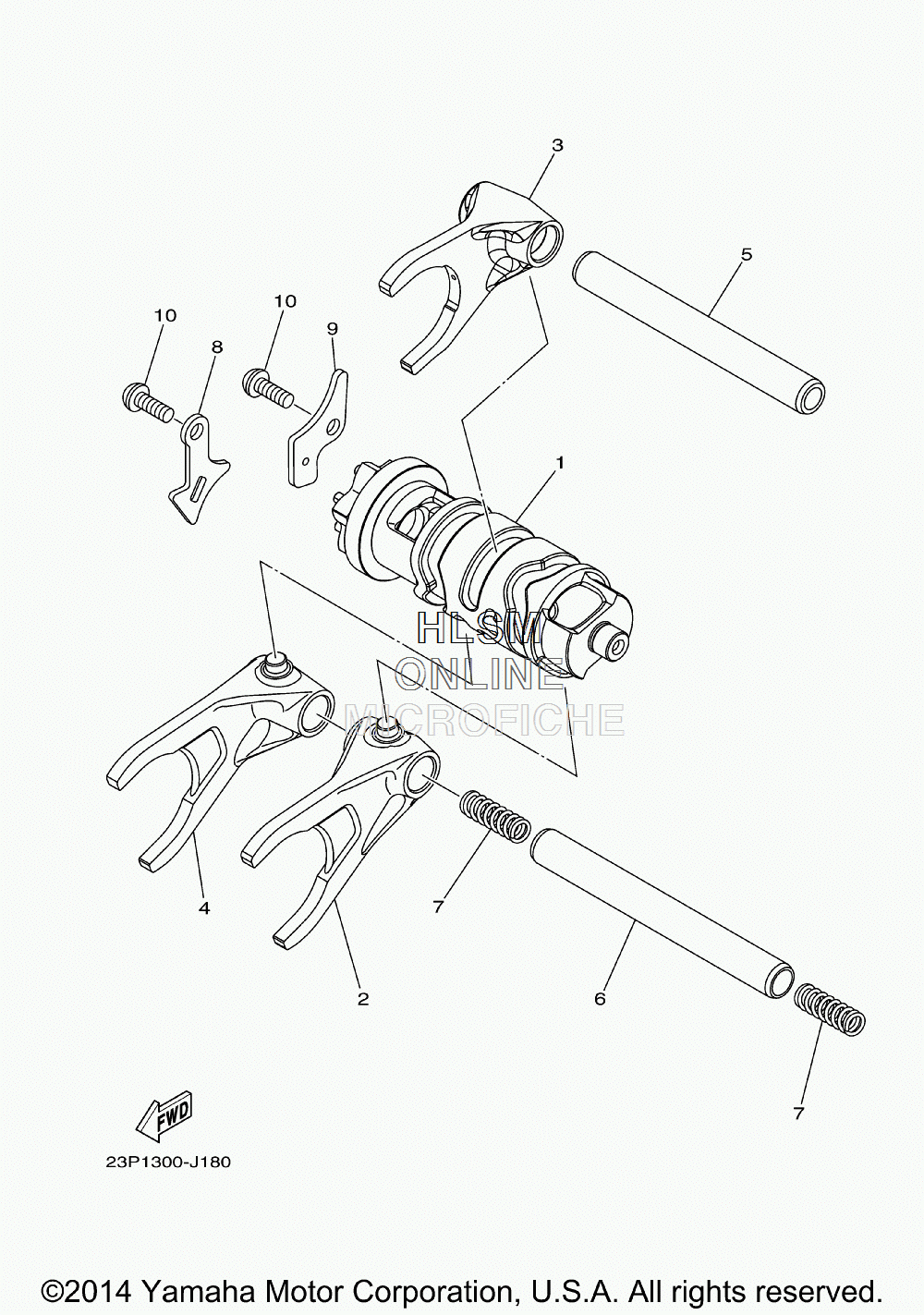

SHIFT CAM W/ FORK для Yamaha SUPER TENERE - 2015 года выпуска`
-
№АртикулНазвание
-
123P-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
223P-18511-10-00 FORK, SHIFT 1FORK, SHIFT 1
-
323P-18512-10-00 FORK, SHIFT 2FORK, SHIFT 2
-
423P-18513-10-00 FORK, SHIFT 3FORK, SHIFT 3
-
523P-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
62C0-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
790501-080A2-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
823P-18536-00-00 STOPPER, SHIFT BARSTOPPER, SHIFT BAR
-
923P-18562-00-00 PLATE, STOPPER 2PLATE, STOPPER 2
-
1090149-06177-00 SCREWSCREW
