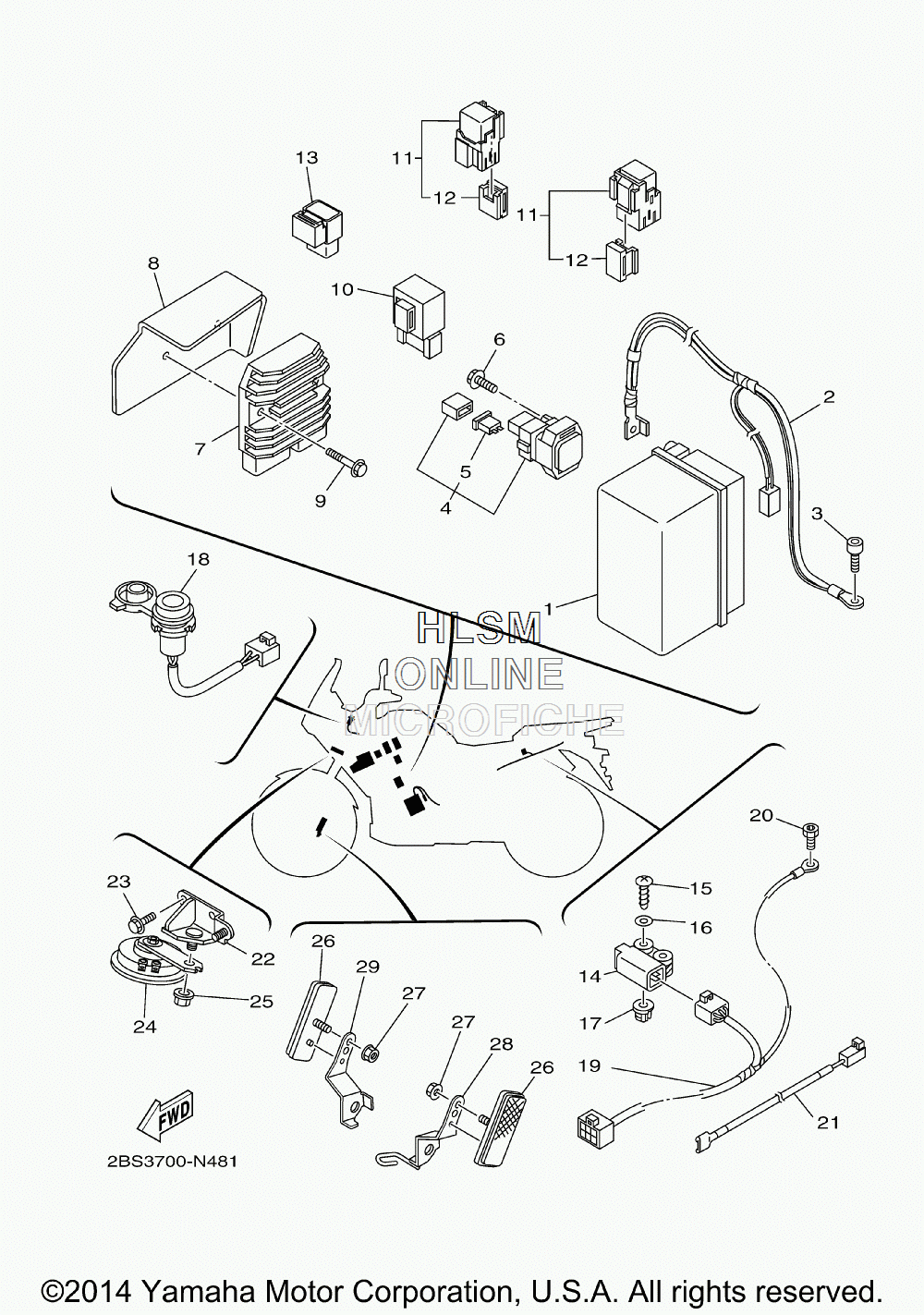

ELECTRICAL 2 для Yamaha SUPER TENERE - 2015 года выпуска`
-
№АртикулНазвание
-
123P-82100-00-00 BATTERY ASSY (GS YUASA YTZ12S)BATTERY ASSY (GS YUASA YTZ12S)
-
223P-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
391312-06012-00 BOLTBOLT
-
44YR-81940-02-00 STARTER RELAY ASSY (RC19-018)STARTER RELAY ASSY (RC19-018)
-
51AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
695022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
71D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
823P-81975-00-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
995802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
105VK-81950-40-00 RELAY ASSY (5VK-40)RELAY ASSY (5VK-40)
-
111ST-81950-00-00 RELAY ASSY (1ST-00)RELAY ASSY (1ST-00)
-
125JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
135JJ-81950-10-00 RELAY ASSY (G8HN-1C4T-DJ-Y51)RELAY ASSY (G8HN-1C4T-DJ-Y51)
-
145VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
1597702-40025-00 SCREW, TAPPINGSCREW, TAPPING
-
1690201-04030-00 WASHER, PLATEWASHER, PLATE
-
174B4-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
1823P-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
1923P-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
2090153-06044-00 SCREW, HEXAGONSCREW, HEXAGON
-
2123P-82541-00-00 WIRE, LEADWIRE, LEAD
-
222BS-8332P-00-00 STAY, HORNSTAY, HORN
-
2390105-06181-00 BOLT, FLANGEBOLT, FLANGE
-
242BS-83371-00-00 HORNHORN
-
2595702-06500-00 NUT, FLANGENUT, FLANGE
-
2611H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
2795702-05500-00 NUT, FLANGENUT, FLANGE
-
2823P-85112-01-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
2923P-85122-01-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
